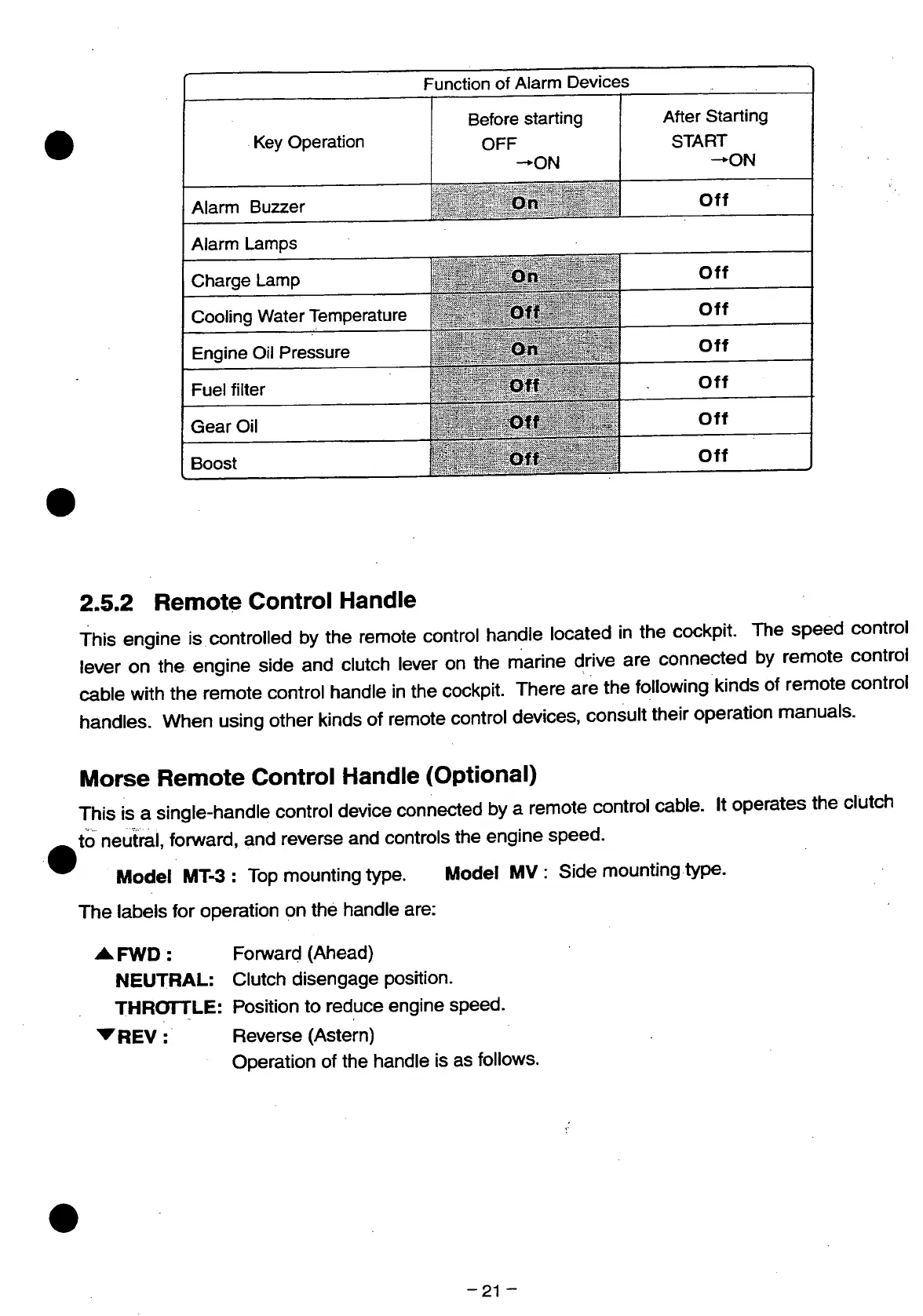

Yanmar 4LHA-HTP User Manual

Function of Alarm Devices
Key Operation
Before starting
OFF
—ON
After Starting
START
—ON
Alarm Buzzer
Off
Alarm Lamps
Charge Lamp
On
Off
Cooling Water Temperature
Off
Off
Engine Oil Pressure
On
Off
Fuel filter
Off
Off
Gear Oil
Off
Off
Boost
Off
Off
2.5.2 Remote Control Handle
This engine is controlled by the remote control handle located in the cockpit. The speed control
lever on the engine side and clutch lever on the marine drive are connected by remote control
cable with the remote control handle in the cockpit. There are the following kinds of remote control
handles. When using other kinds of remote control devices, consult their operation manuals.
Morse Remote Control Handle (Optional)
This is a single-handle control device connected by a remote control cable. It operates the clutch
k
to neutral, forward, and reverse and controls the engine speed.
Model MT-3 : Top mounting type. Model MV : Side mounting type.
The labels for operation on the handle are:
A. FWD : Forward (Ahead)
NEUTRAL: Clutch disengage position.
THROTTLE: Position to reduce engine speed.
•REV: Reverse (Astern)
Operation of the handle is as follows.
-21 -
