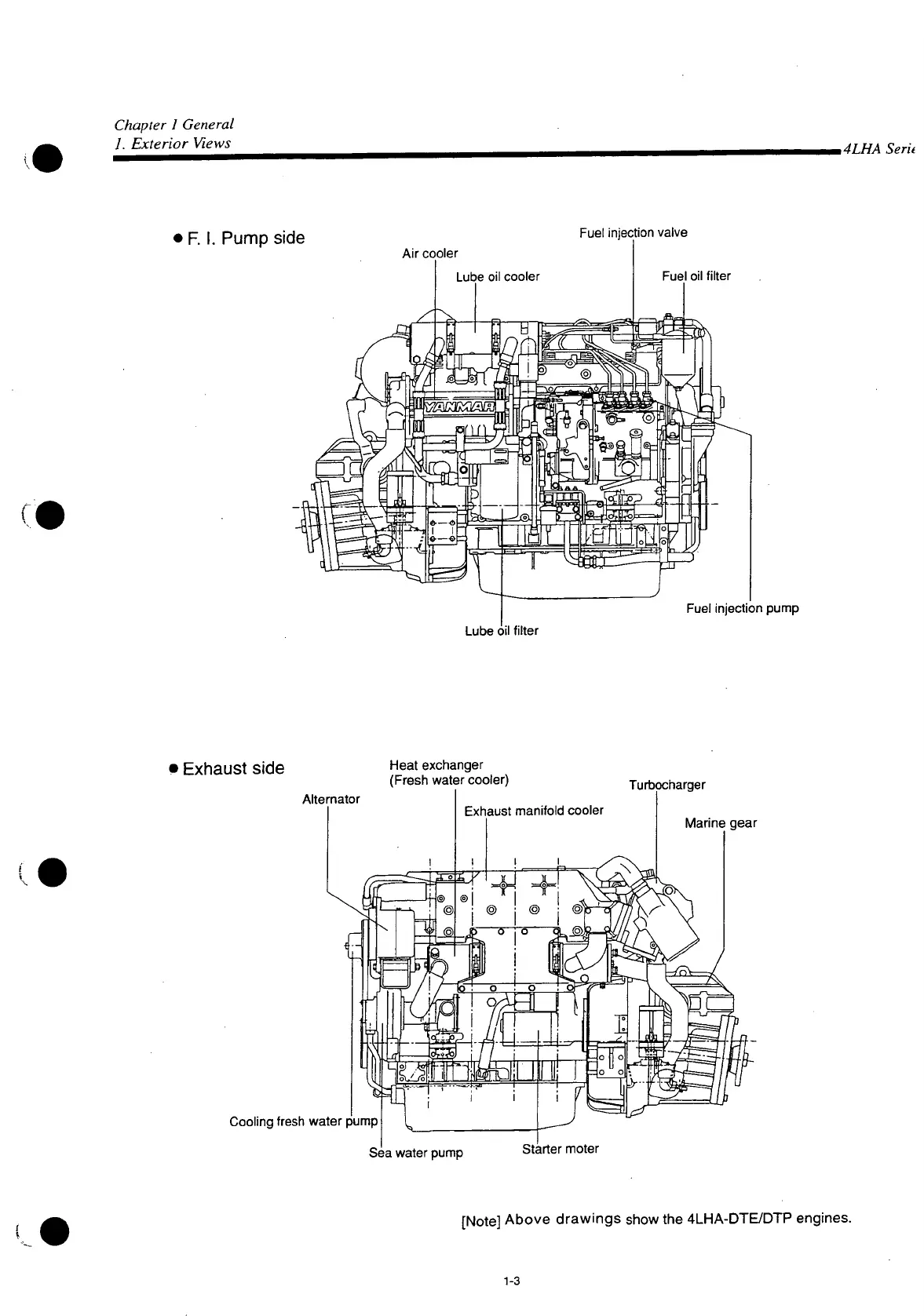

Chapter 1 General
1. Exterior Views
i4LHA Serit
n
F. I.
Pump
side
Air
cooler
Fuel
injection valve
Fuel
oil
filter
Fuel
injection pump
Lube
oil
filter
Exhaust
side
Alternator
Heat
exchanger
(Fresh
water cooler)
Turbocharger
Marine
gear
Cooling
fresh water pump
Sea
water pump
Starter moter
[Note]
Above drawings show the
4LHA-DTE/DTP
engines.
