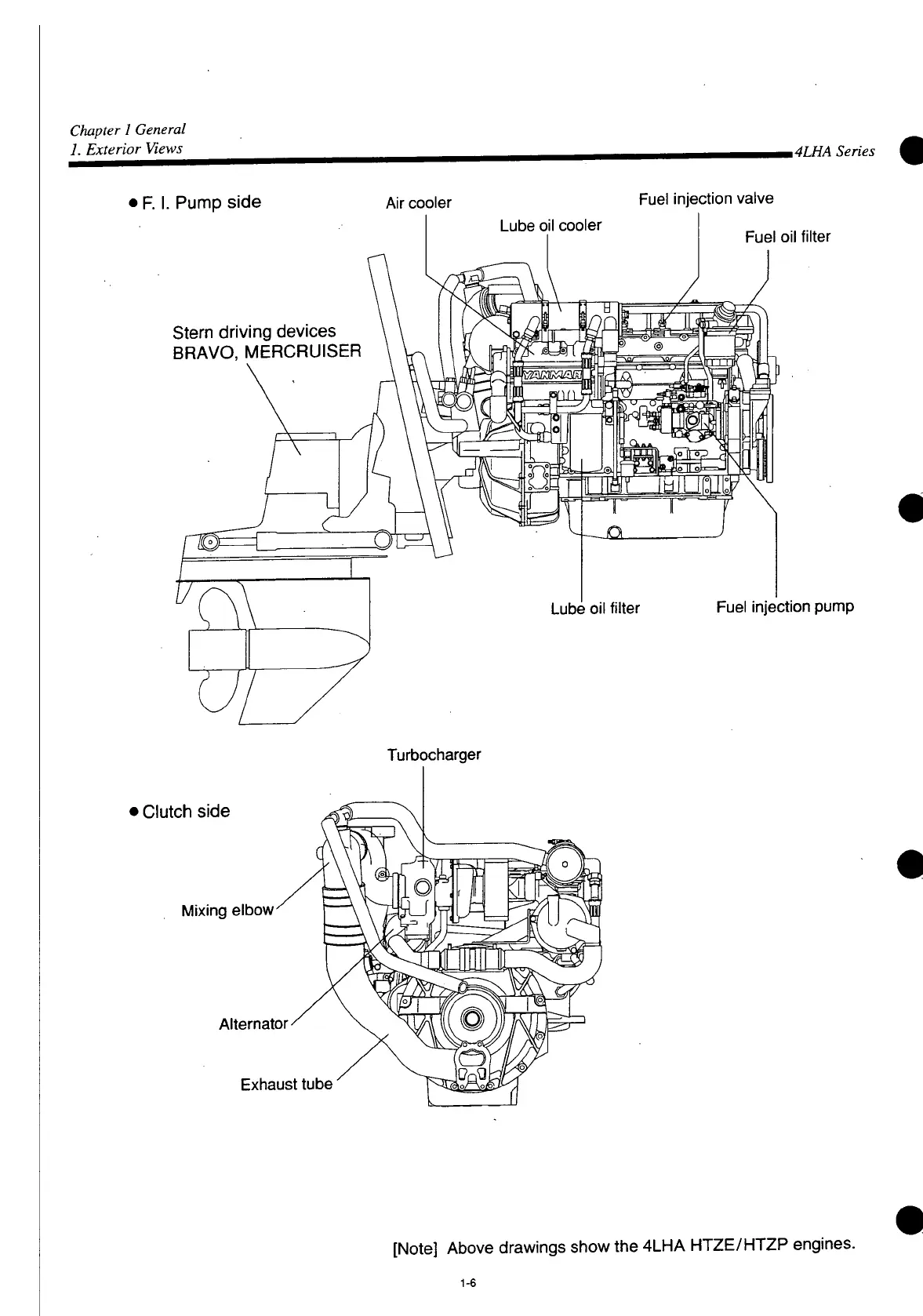

1. Exterior Views
t
4LHA Series
• F. I. Pump side
A
j
r C00
|er Fuel injection valve
Lube oil cooler
Stern driving devices
BRAVO,
MERCRUISER
Fuel
oil
filter
Fuel
injection pump
Turbocharger
>
Clutch side
Mixing elbow
Alternator
Exhaust
tube
[Note]
Above drawings show the 4LHA
HTZE/HTZP
engines.
