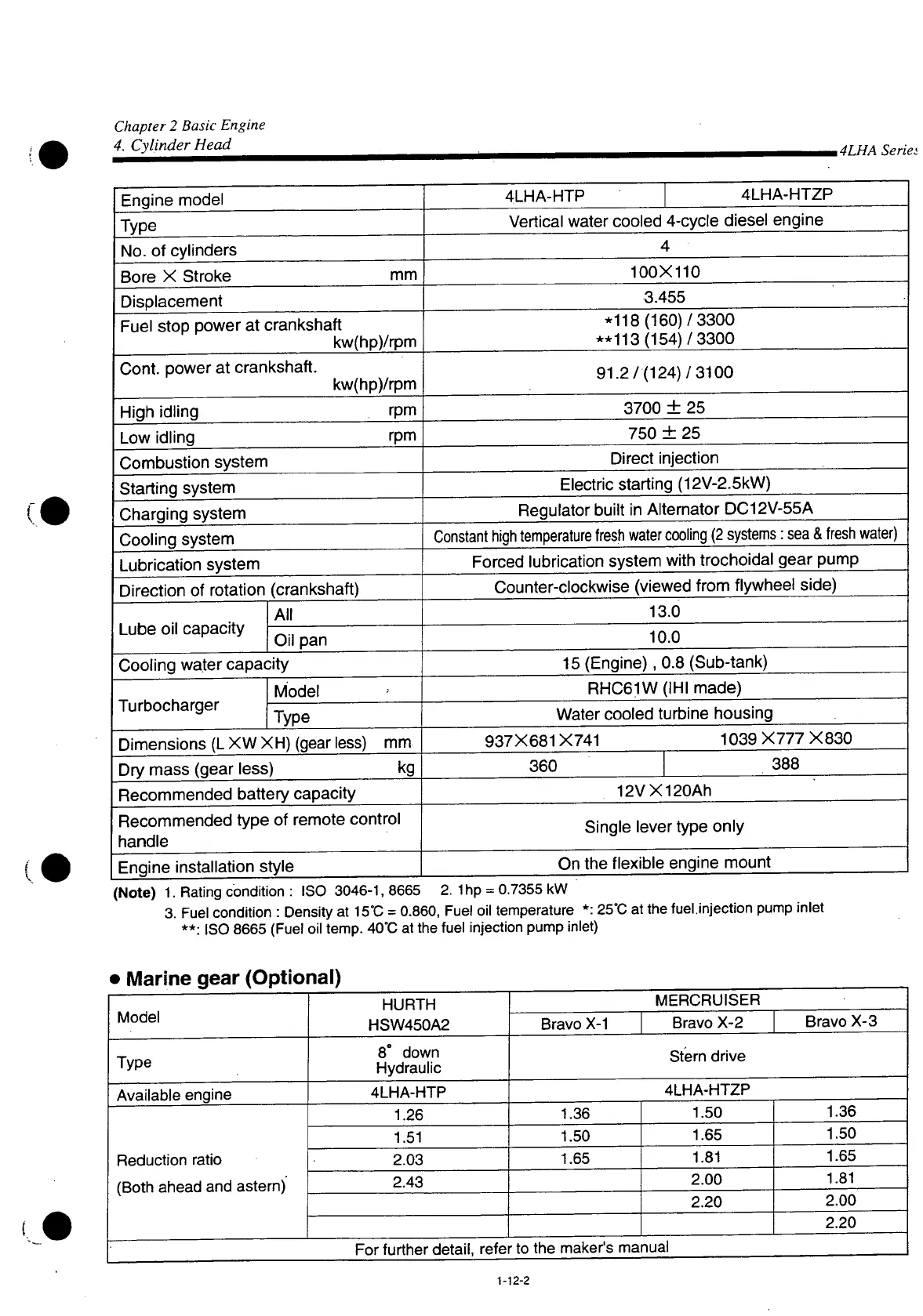

Chapter 2 Basic Engine
4. Cylinder Head
,4LHA Seriei
Engine model
4LHA-HTP
4LHA-HTZP
Type
Vertical water cooled 4-cycle diesel engine
No. of cylinders
4
Bore X Stroke mm
100X110
Displacement
3.455
Fuel stop power at crankshaft
kw(hp)/rpm
*118 (160)7 3300
**113 (154) 7 3300
Cont. power at crankshaft.
kw(hp)/rpm
91.2/(124)7 3100
High idling rpm
3700 ± 25
Low idling rpm
750 ± 25
Combustion system
Direct injection
Starting system
Electric starting (12V-2.5kW)
Charging system
Regulator built in Alternator DC12V-55A
Cooling system
Constant high temperature fresh water cooling (2 systems: sea & fresh water)
Lubrication system
Forced lubrication system with trochoidal gear pump
Direction of rotation (crankshaft)
Counter-clockwise (viewed from flywheel side)
Lube oil capacity
All
13.0
Lube oil capacity
Oil pan
10.0
Cooling water capacity
15 (Engine), 0.8 (Sub-tank)
Turbocharger
Model
RHC61W(IHI made)
Turbocharger
Type
Water cooled turbine housing
Dimensions (L X W X H) (gear less) mm
937X681X741 1039X777X830
Dry mass (gear less) kg
360
388
Recommended battery capacity
12VX120Ah
Recommended type of remote control
handle
Single lever type only
Engine installation style
On the flexible engine mount
(Note) 1. Rating condition : ISO 3046-1, 8665 2. 1 hp = 0.7355 kW
3. Fuel condition : Density at 15°C = 0.860, Fuel oil temperature *: 25
0
C at the fuel.injection pump inlet
**: ISO 8665 (Fuel oil temp. 40°C at the fuel injection pump inlet)
• Marine gear (Optional)
Model
HURTH
HSW450A2
MERCRUISER
Model
HURTH
HSW450A2
Bravo X-1
Bravo X-2
Bravo X-3
Type
8° down
Hydraulic
Stern drive
Available engine
4LHA-HTP
4LHA-HTZP
Reduction ratio
(Both ahead and astern)
1.26
1.36
1.50
1.36
Reduction ratio
(Both ahead and astern)
1.51
1.50
1.65
1.50
Reduction ratio
(Both ahead and astern)
2.03
1.65
1.81
1.65
Reduction ratio
(Both ahead and astern)
2.43
2.00
1.81
Reduction ratio
(Both ahead and astern)
2.20
2.00
Reduction ratio
(Both ahead and astern)
2.20
For further detail, refer to the maker's manual
1-12-2
