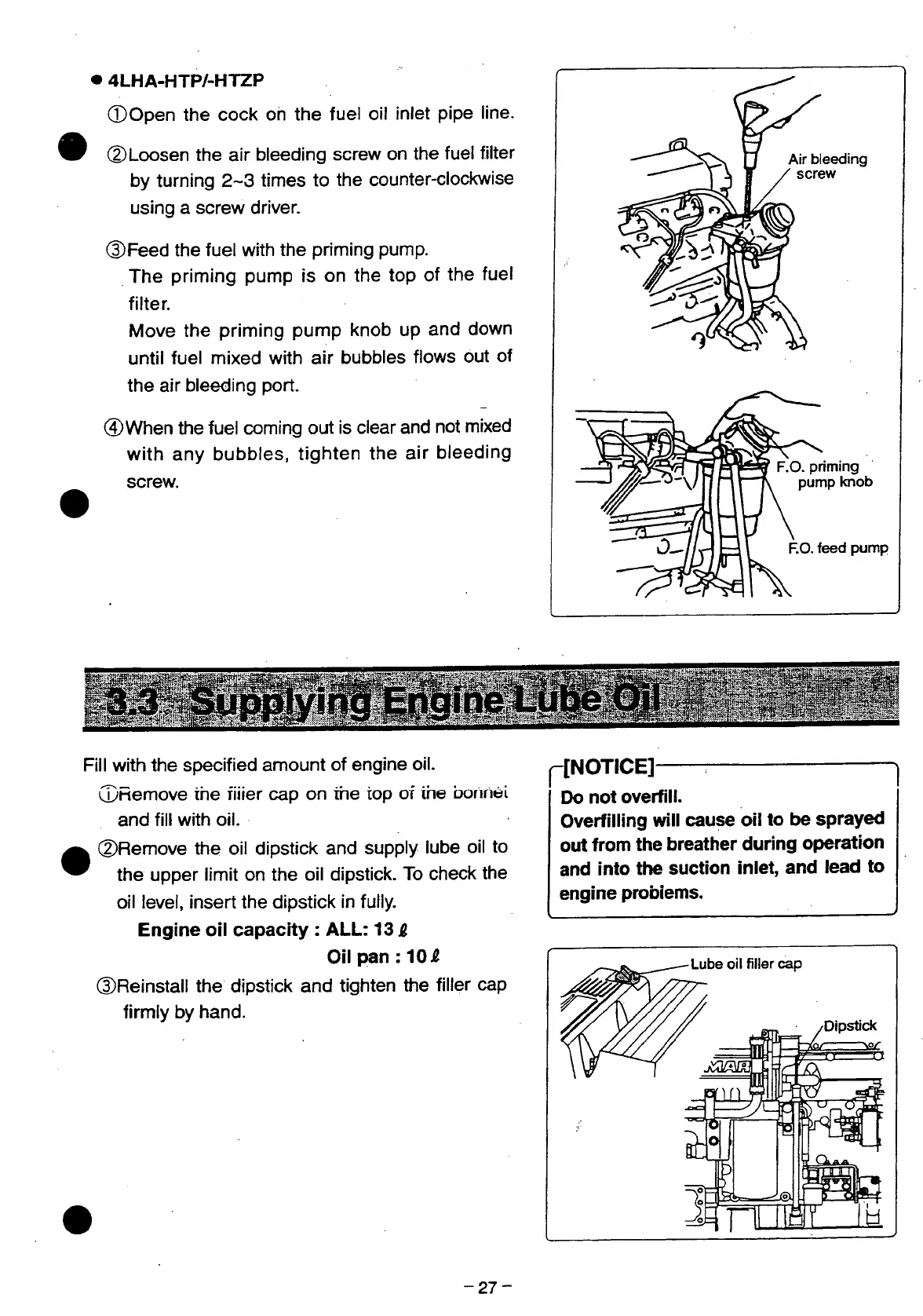

• 4LHA-HTP/-HTZP
©Open the cock on the fuel oil inlet pipe line.
©Loosen the air bleeding screw on the fuel
filter
by turning 2-3 times to the counter-clockwise
using
a screw driver.
©Feed the fuel
with
the priming pump.
The
priming pump is on the top of the fuel
filter.
Move
the priming pump knob up and down
until fuel mixed
with
air bubbles flows out of
the air bleeding port.
©When the fuel coming out is
clear
and not mixed
with
any bubbles, tighten the air bleeding
screw.
Air
bleeding
screw
F.O.
priming
pump knob
F.O.
feed pump
3.3 Supplying Engine Li
§8
ISSBifci
Fill
with
the specified amount of engine oil.
©Remove the fiiier cap on the top of ihe bonne i
and
fill with
oil.
©Remove the oil
dipstick
and
supply
lube oil to
the
upper limit
on the oil
dipstick.
To
check the
oil
level, insert the dipstick in fully.
Engine oil capacity : ALL: 13 i
Oil
pan : IOi
©Reinstall the dipstick and tighten the filler cap
firmly by
hand.
r
[NOTICE]
Do not
overfill.
Overfilling
will
cause oil to be sprayed
out
from
the
breather
during
operation
and
into
the suction
inlet,
and
lead
to
engine
problems.
-27-
