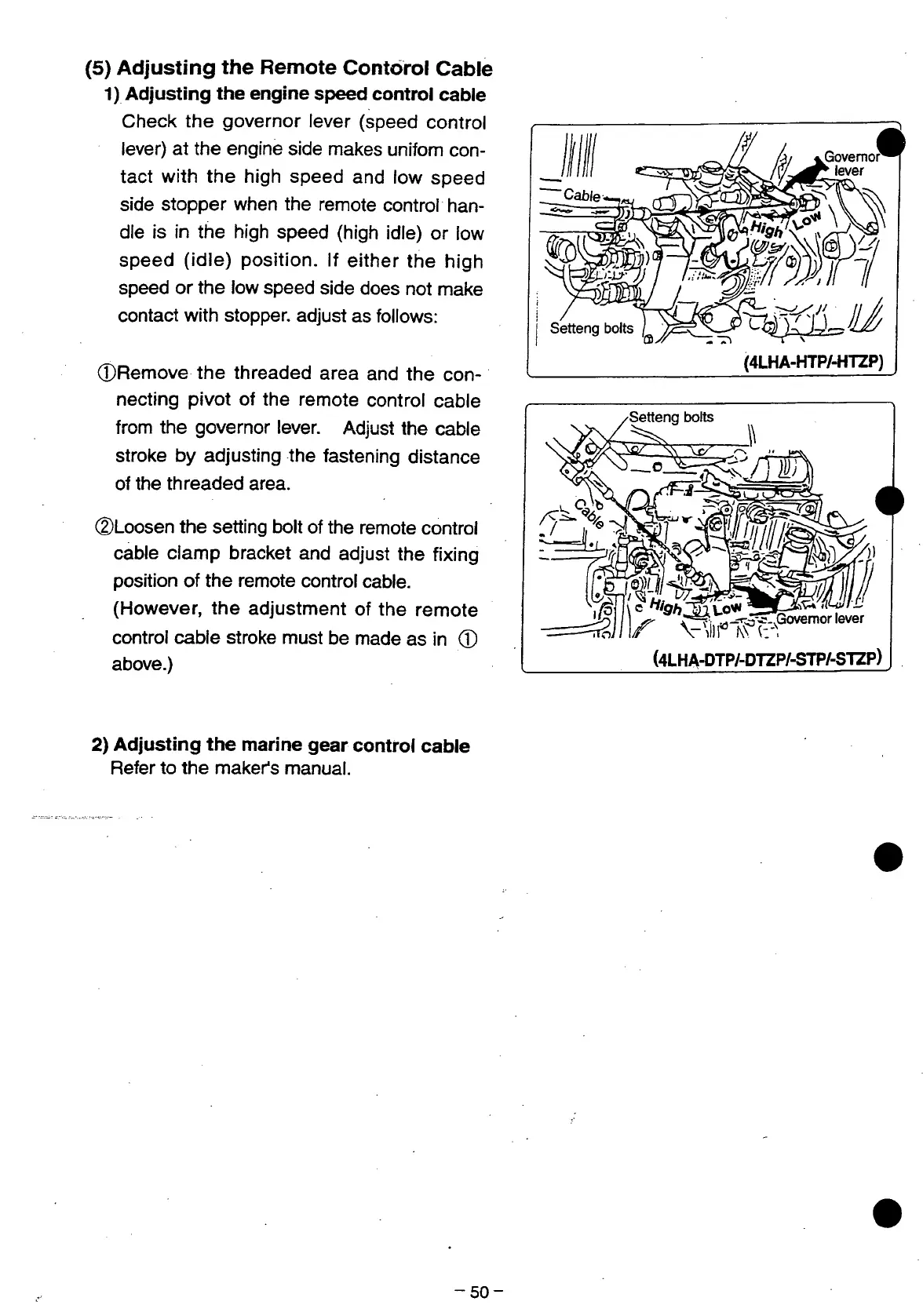

(5) Adjusting the Remote Contorol Cable
1) Adjusting the engine speed control cable
Check the governor lever (speed control
lever) at the engine side makes unifom con-
tact with the high speed and low speed
side stopper when the remote control han-
dle is in the high speed (high idle) or low
speed (idle) position. If either the high
speed or the low speed side does not make
contact with stopper, adjust as follows:
©Remove the threaded area and the con-
necting pivot of the remote control cable
from the governor lever. Adjust the cable
stroke by adjusting the fastening distance
of the threaded area.
©Loosen the setting bolt of the remote control
cable clamp bracket and adjust the fixing
position of the remote control cable.
(However, the adjustment of the remote
control cable stroke must be made as in ©
above.)
(4LHA-HTP/-HTZP)
•Setteng bolts
(4LHA-DTP/-DTZP/-STP/-STZP)
2) Adjusting the marine gear control cable
Refer to the maker's manual.
-50-
