Yanmar 4LHA-HTP User Manual

Chapter 7 Reduction and Reversing Gear
5. Disassembly
4LHA Series

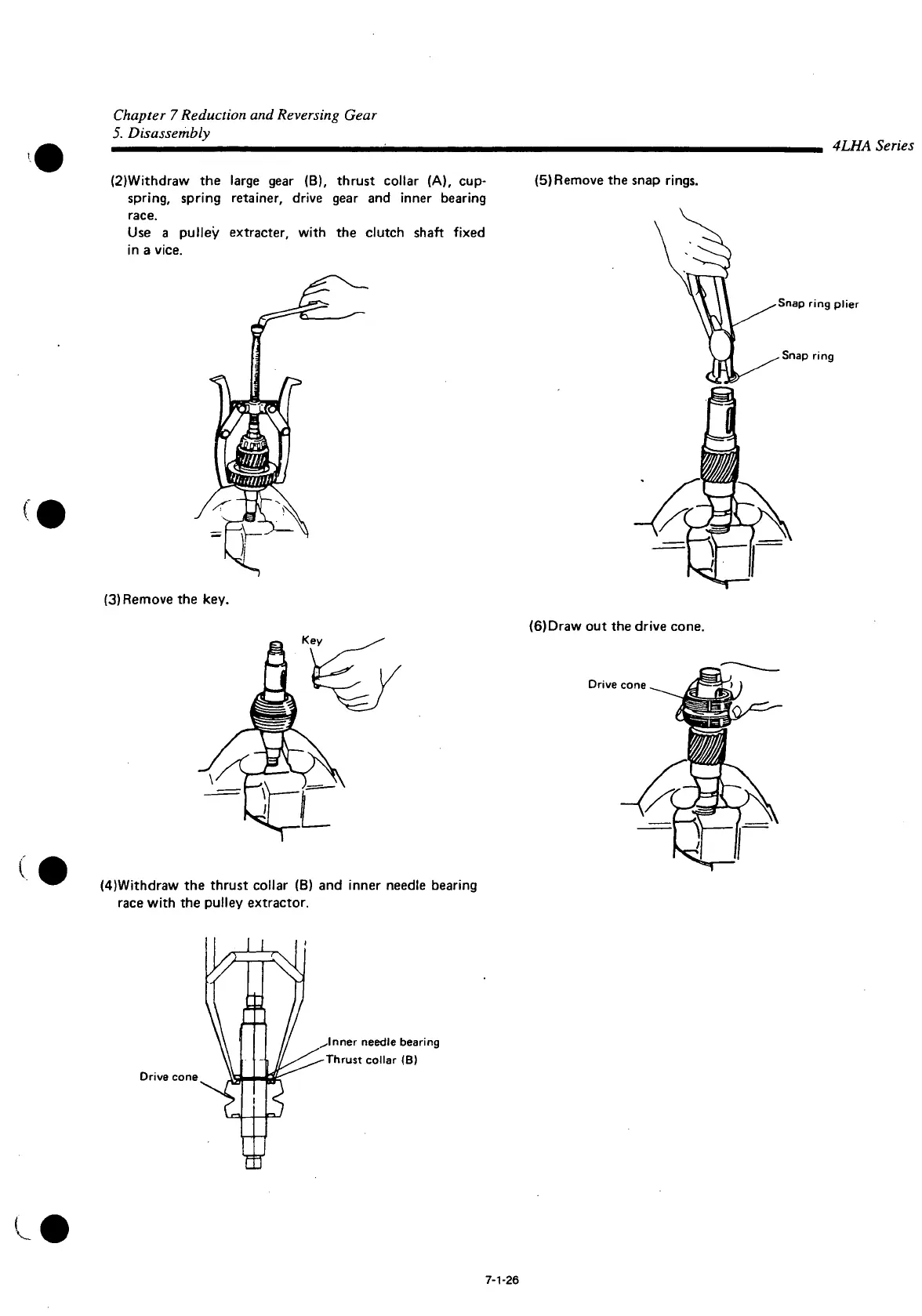

(2)Withdraw the large gear (B), thrust collar (A), cup-
spring, spring retainer, drive gear and inner bearing
race.
Use a pulley extracter, with the clutch shaft fixed
in a vice.
(5) Remove the snap rings.
(3) Remove the key.
(6)Draw out the drive cone.
Drive cone
(4)Withdraw the thrust collar (B) and inner needle bearing
race with the pulley extractor.
Drive cone
Inner needle bearing
Thrust collar (B)
7-1-26
