Chapter 7 Reduction and Reversing Gear
5. Disassembly
4LHA Serie.

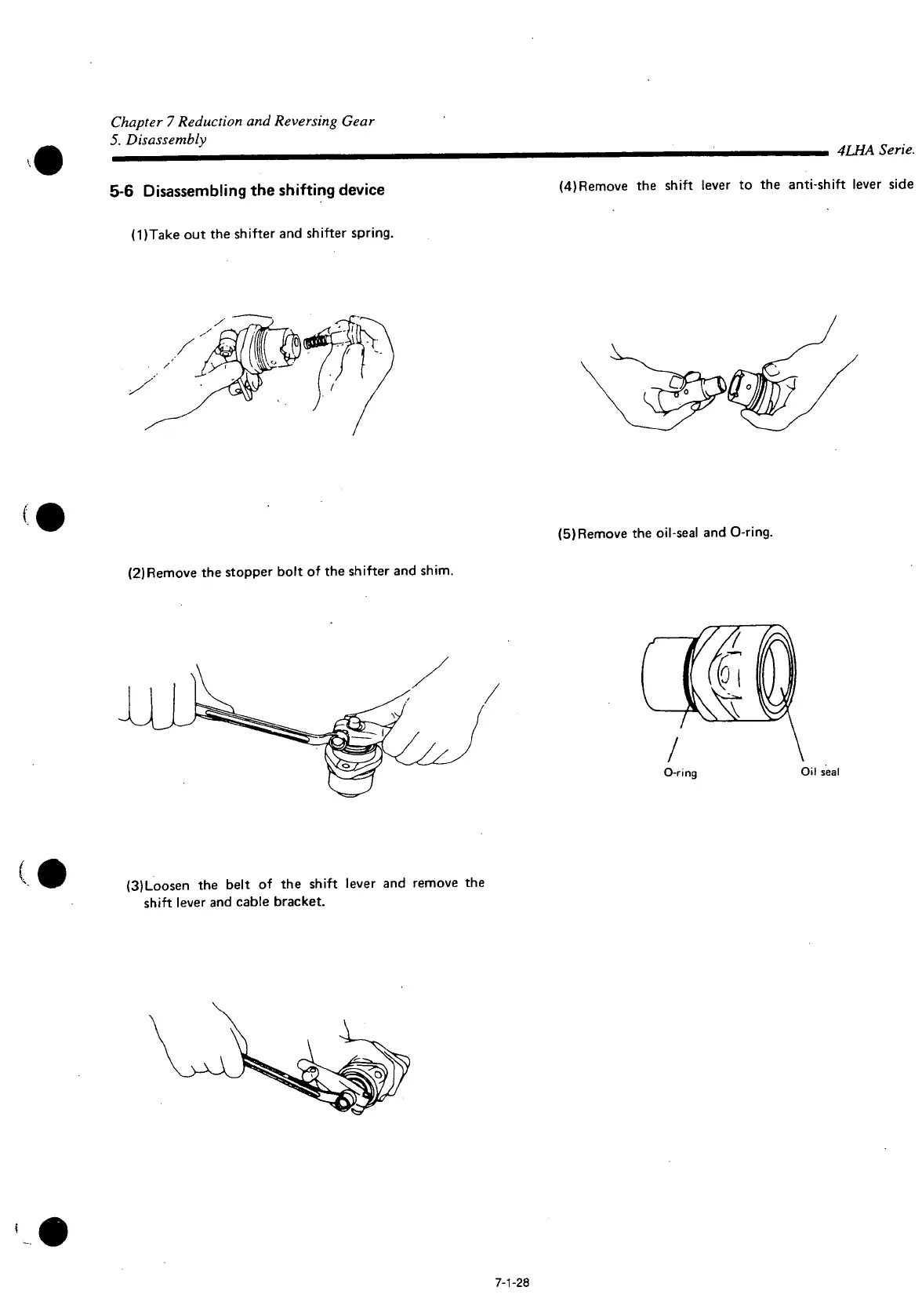

5-6 Disassembling the shifting device
(4)Remove the shift lever to the anti-shift lever side
(l)Take out the shifter and shifter spring.
(2)Remove the stopper bolt of the shifter and shim.
(5) Remove the oil-seal and O-ring.
Oil seal
(3)Loosen the belt of the shift lever and remove the
shift lever and cable bracket.
7-1-28
