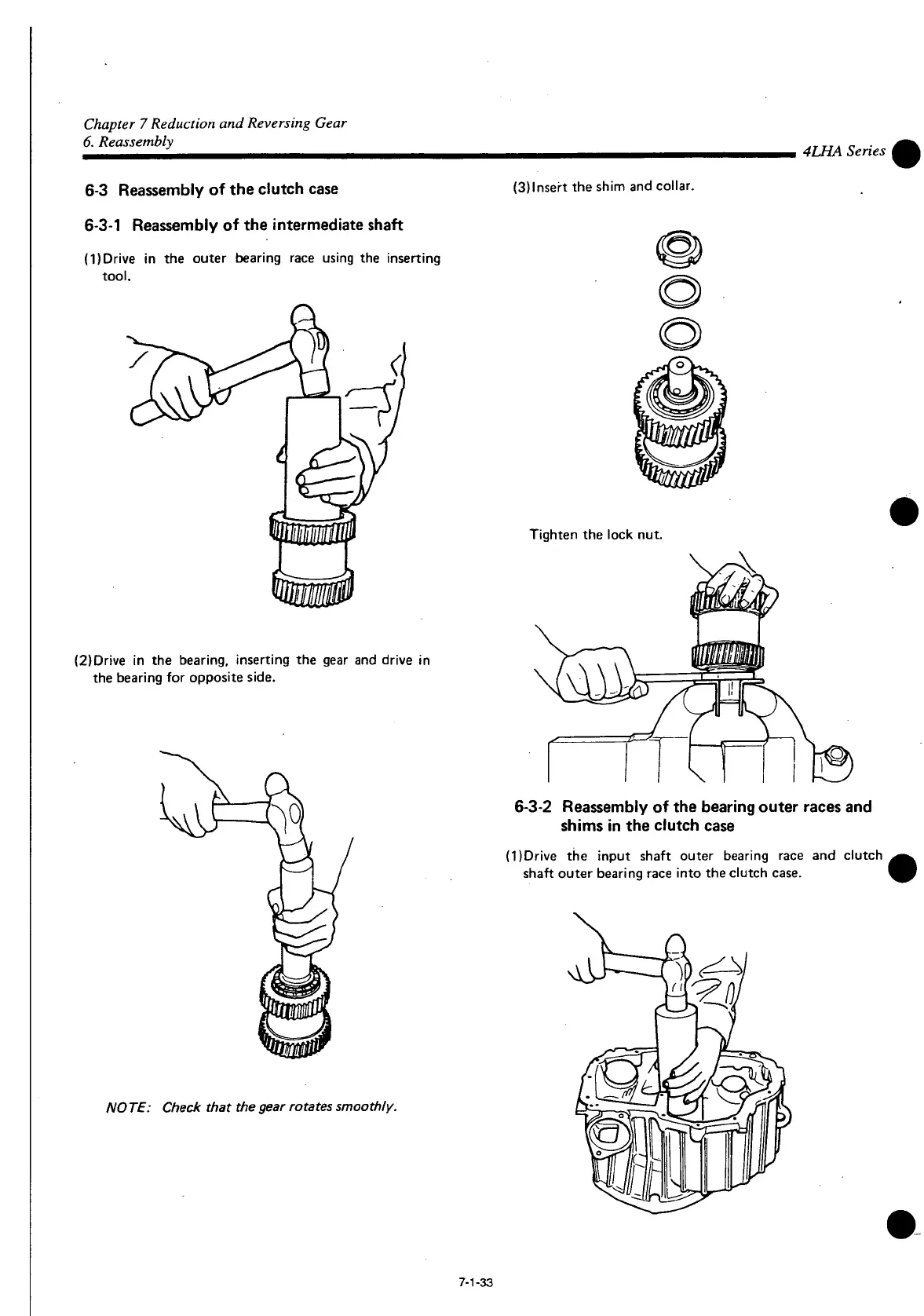

Chapter 7 Reduction and Reversing Gear
6. Reassembly
4LHA Series
6-3 Reassembly of the
clutch
case
6-3-1 Reassembly of the
intermediate
shaft
(l)Drive in the outer bearing race using the inserting
tool.
(2)Drive in the bearing, inserting the gear and drive in
the bearing for opposite
side.
NOTE: Check that the gear rotates smoothly.
(3)lnsert the shim and collar.
Tighten the lock nut.
6-3-2 Reassembly of the
bearing
outer
races and
shims in the
clutch
case
(l)Drive the input shaft outer bearing race and clutch
shaft outer bearing race
into
the clutch
case.
7-1-33
