Chapter 8 Remote Control n
1. Remote Control System
1.
Remote
Control
System
4LHA Seri,
1-1
Construction
of
remote
control
system
The remote control permits one handed control of the
engine
speed,
changing
from
forward to reverse, and stop-
ping.
Fittings which allow for easy connection of the remote
control cables
with
the fuel injection pump and transmis-
sion are provided
with
the remote control set.
The use of Morse remote control cables, clamps and a
remote control head, are also provided for. The device to
stop the engine is electric and
will
be explained under the
section on electrical equipment.
1-2
Remote
control
device
components
Morse
description
Yanmar
Part No.
Remote
control head
Morse
MT2 top mounting
single lever
Morse
MV side mounting
single lever
41730-000680
128170-86500
Remote
control cable
Morse
33C x 4m
(13.12ft.)
Morse
33C x 7m
(23.00ft.)
41710-000360
129470-86500
Engine
stop cable
Yanmar
4m
(13.12ft)
Yanmar
7m
(22.96ft)
129470-67550
129470-67560

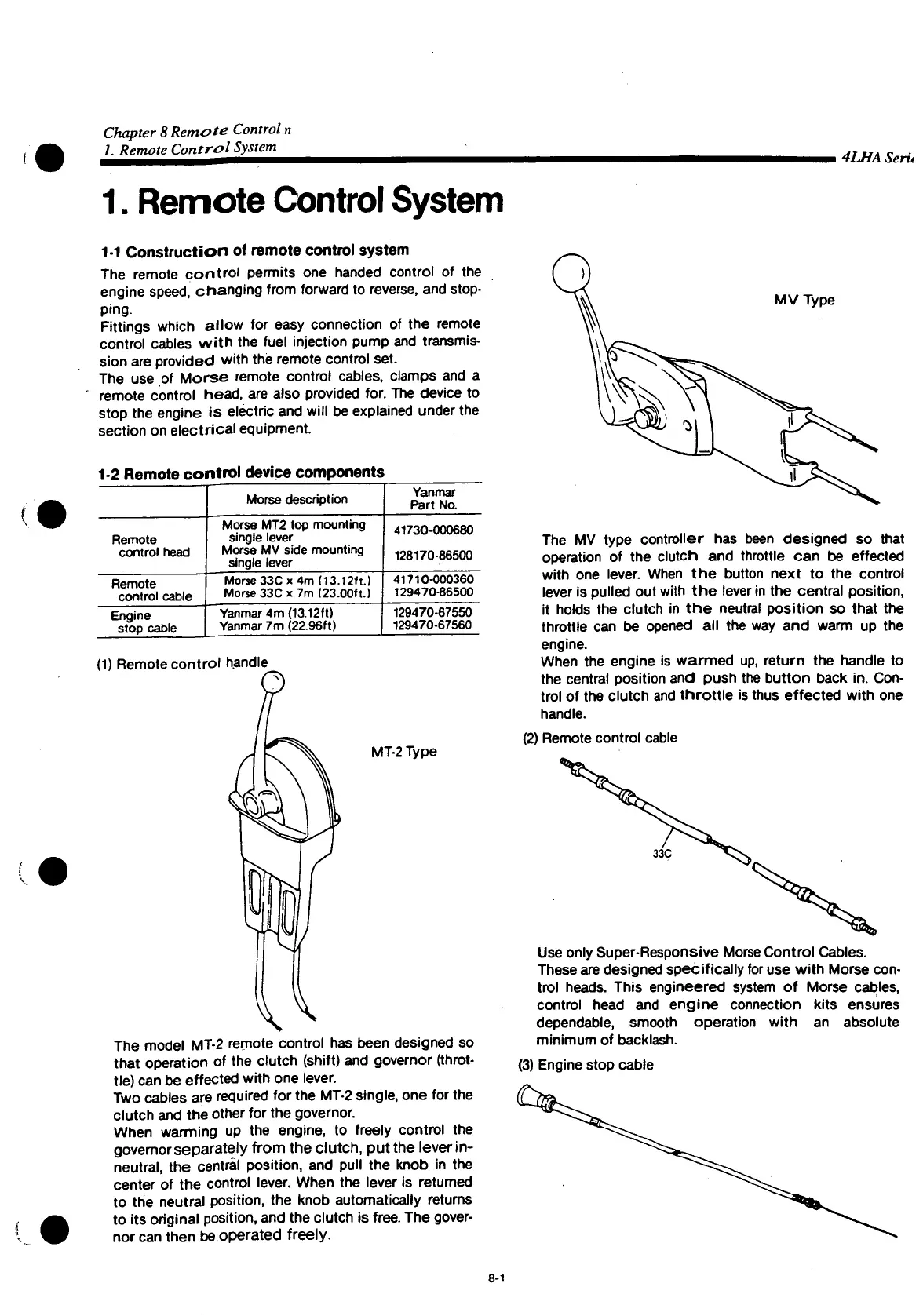

(1) Remote control handle
MT-2
Type
The model MT-2 remote control has been designed so
that
operation of the clutch
(shift)
and governor
(throt-
tle) can be effected
with
one lever.
Two cables are required for the MT-2 single, one for the
clutch and the other for the governor.
When warming up the engine, to freely control the
governor separately
from
the clutch, put the lever in-
neutral, the central position, and pull the knob in the
center of the control lever. When the lever is returned
to the neutral position, the knob automatically returns
to its original position, and the clutch is free. The gover-
nor can then be operated freely.
MV
Type
The MV type controller has been designed so
that
operation of the clutch and
throttle
can be effected
with
one lever. When the
button
next to the controi
lever is pulled out
with
the lever in the central position,
it holds the clutch in the neutral position so
that
the
throttle
can be opened all the way and warm up the
engine.
When the engine is warmed up,
return
the handle to
the central position and push the
button
back in.
Con-
trol
of the clutch and
throttle
is thus effected
with
one
handle.
(2) Remote control cable
Use
only Super-Responsive Morse Control
Cables.
These
are designed specifically for use
with
Morse
con-
trol
heads. This engineered system of Morse cables,
control head and engine connection kits ensures
dependable, smooth operation
with
an absolute
minimum of backlash.
(3) Engine stop cable
8-1
