Chapter
9
Electrical System

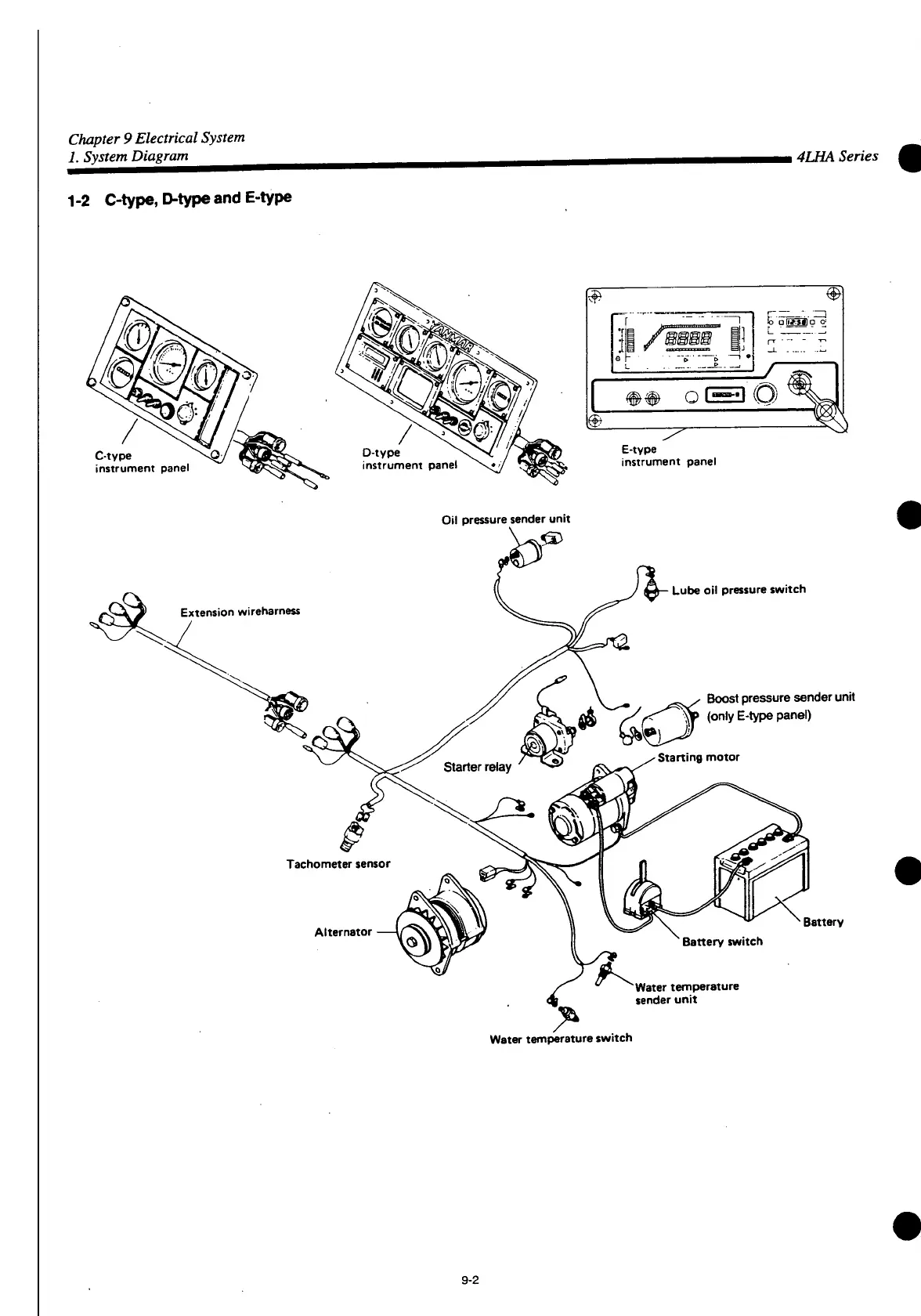

1. System Diagram
i
4LHA Series
1-2
C-type,
D-type
and
E-type
C-type
instrument panel
Oil
pressure sender
unit
Alternator
Lube
oil pressure switch
Boost
pressure sender
unit
(only E-type panel)
Water temperature
sender
unit
Battery
Water temperature switch
9-2
