Yanmar 4LHA-STP User Manual

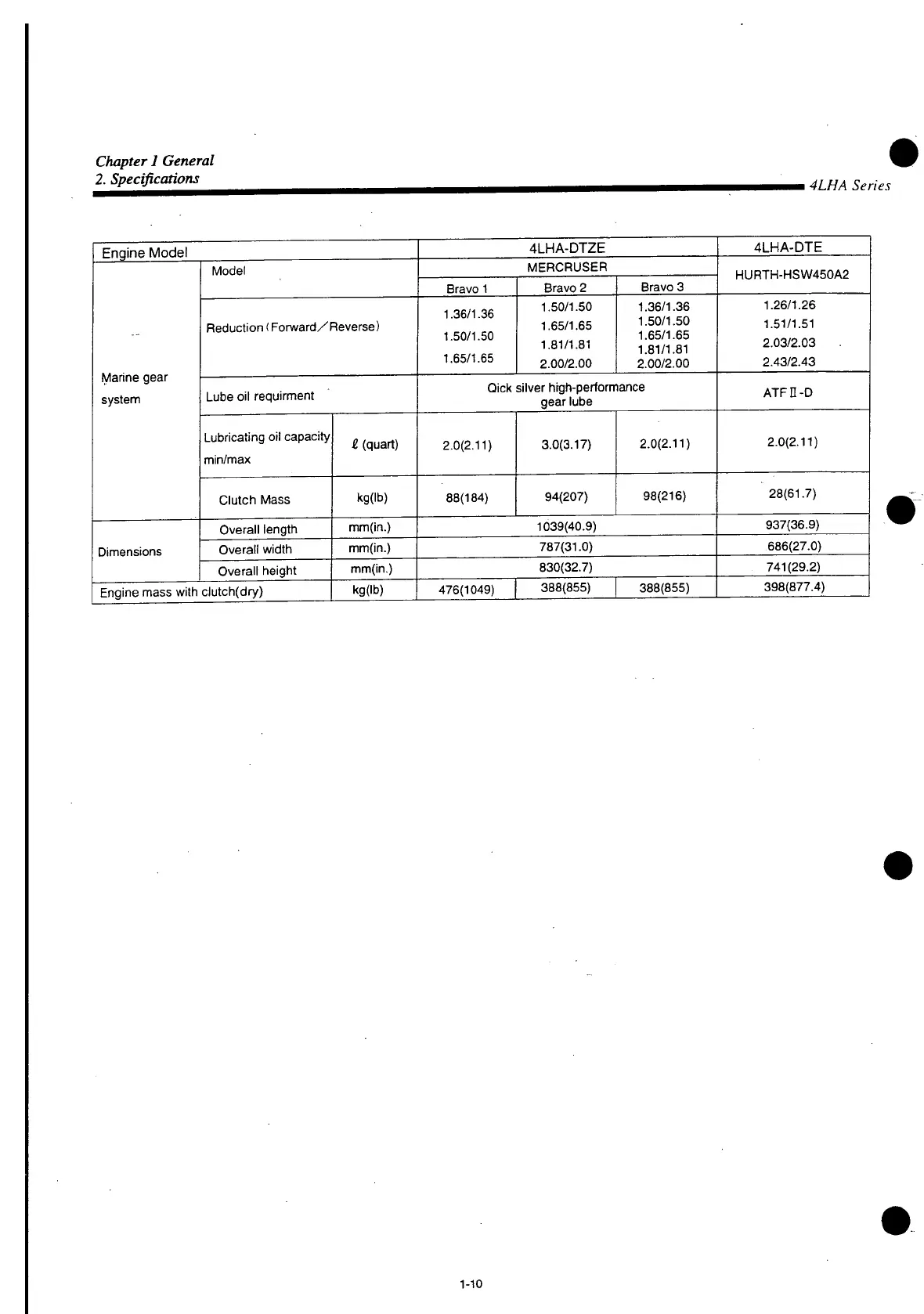

Chapter 1 General
2. Specifications
i 4LHA Series
Enaine Model
4LHA-DTZE
4LHA-DTE
Marine gear
system
Model
MERCRUSER
HURTH-HSW450A2
Marine gear
system
Model
Bravo 1
Bravo 2
Bravo 3
HURTH-HSW450A2
Marine gear
system
Reduction (Forward/Reverse)
1.36/1.36
1.50/1.50
1.65/1.65
1.50/1.50
1.65/1.65
1.81/1.81
2.00/2.00
1.36/1.36
1.50/1.50
1.65/1.65
1.81/1.81
2.00/2.00
1.26/1.26
1.51/1.51
2.03/2.03
2.43/2.43
Marine gear
system
Lube oil requirment
Qick silver hrgh-perfomnance
gear lube
ATF II -D
Marine gear
system
Lubricating oil capacity
min/max
£ (quart)
2.0(2.11)
3.0(3.17)
2.0(2.11)
2.0(2.11)
Marine gear
system
Clutch Mass
kg(lb) 88(184)
94(207)
98(216)
28(61.7)
Dimensions
Overall length
mm(in.)
1039(40.9)
937(36.9)
Dimensions
Overall width
mm(in.)
787(31.0)
686(27.0)
Dimensions
Overall height
mm(in.)
830(32.7)
741(29.2)
Engine mass with
clutch(dry)
kg(lb)
476(1049)
388(855)
388(855)
398(877.4)
1-10

Yanmar 4LHA-STP Specifications

General

Number of Cylinders	4
Fuel System	Direct Injection
Engine Type	4-Stroke Vertical Water-Cooled Diesel Engine
Displacement	3.455 L
Bore x Stroke	100 mm x 110 mm
Aspiration	Turbocharged
