15. SERVICE THE ELECTRICAL SYSTEM
15-2
Lx410/450/490 Operator's Manual
Inspect the Battery
1. The battery that comes with the new tractor is a
maintenance free design.
2. Avoid adding electrolyte.
3. Avoid recharging the battery.
4. Measure the voltage on the battery across the
positive (+) and negative (–) posts while the
engine is shut off.
5. If the reading is 11V or lower, replace the battery
with a new one.

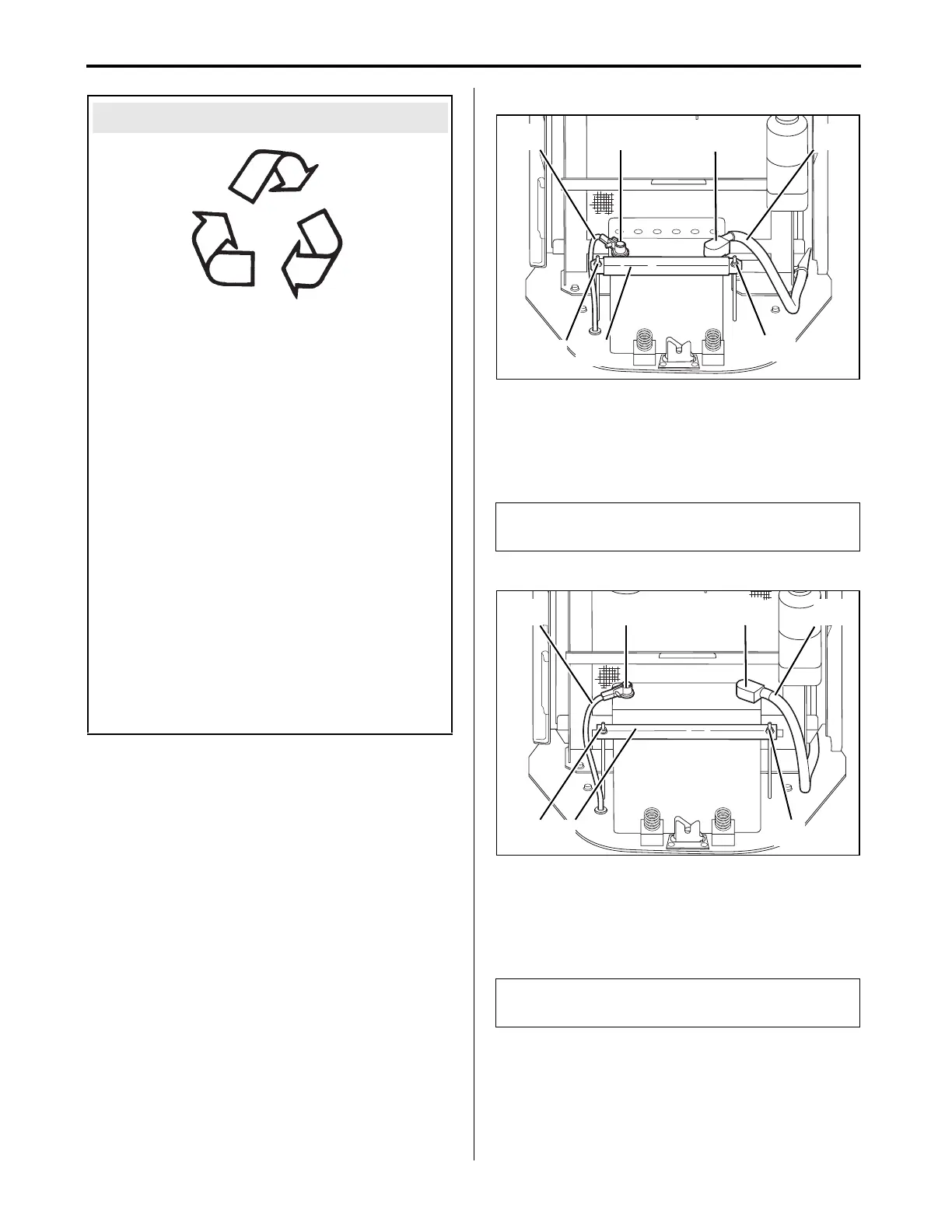

Remove and Install the Battery
(A) Negative () cable
(B) Negative (
) terminal
(C) Positive (+) terminal red cover
(D) Positive (+) cable
(E) Threaded rods
(F) Bracket
(A) Negative () cable
(B) Negative (
) terminal
(C) Positive (+) terminal red cover
(D) Positive (+) cable
(E) Threaded rods
(F) Bracket
Always observe environment protection laws.
Dispose of (possibly) hazardous materials in
accordance with the guidelines of the
Environmental Protection Agency (EPA) and
other relevant governmental bodies.
The hazardous materials in the tractor include:
engine oil
diesel fuel
transmission hydraulic oil
•battery
coolant
front axle gear oil
Exercise good judgment in deciding what is and
what is not hazardous.
Dispose hazardous materials only in waste
disposal facilities designated by local authorities.
Never dispose the hazardous wastes in
inappropriate locations, e.g., sewer, ground,
groundwater, waterways.
Failure to follow these instructions can adversely
impact the environment and can be unlawful.
NOTICE
NOTE
The above illustration shows Lx410/450.
NOTE
The above illustration shows Lx490.
41-45PS_battery
(A)
(B) (C)
(D)
(E)
(F)(E)
49PS_battery_1
(A)
(B)
(C)
(D)
(E)(F)(E)
