8-12
8. OPERATE THE TRACTOR
Lx410/450/490 Operator's Manual

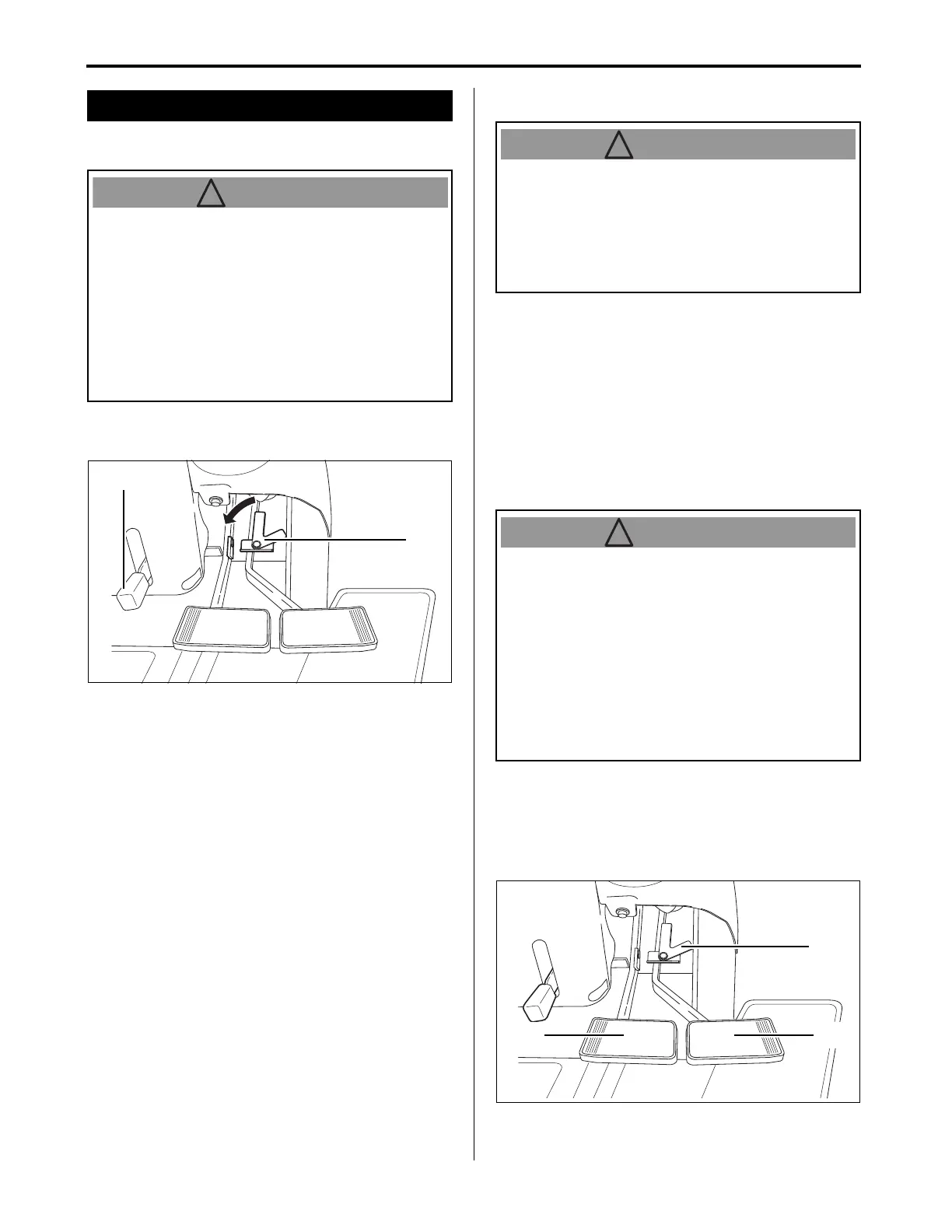

■ Engage the Parking Brake
1. Use the brake pedal connector lock to lock the
brake pedals together.
(A) Brake pedal connector lock
(B) Parking brake lock lever
2. Firmly depress both brake pedals.
3. Pull up the parking brake lock lever.
4. Release the parking brake lock lever and remove
foot from the brake pedals.
5. Both brake pedals should remain to the depress
position while the parking brake lock lever is
engage.
■ Disengage the Parking Brake
1. Depress both locked brake pedals.
2. Push all the way down the parking brake lock
lever.
3. Release the locked brake pedals.
4. Make sure the parking brake is disengaged.
■ Use the Brake Pedals as Driving Brake
(on Roads)
1. Lock the brake pedal connector lock.
2. The preceding actions lock the two brake pedals
together.
3. Depress the locked brake pedals to slow down or
stop the tractor.
(A) Brake pedal connector lock
(B) Right turn brake pedal
(C) Left turn brake pedal
5. Use the Brake
● Before leaving the tractor unattended:
• always engage the parking brake securely,
for details, see "6. Lock and Set the Parking
Brake" on page 7-4
• always remove the key from the starter key
switch
● The preceding practice prevents a child and
other people from attempting to drive or
operate the tractor.
● Always park the tractor on a solid and level
ground. If parking on a slope is unavoidable:
• chock all the tires safely and securely
• engage the parking brake securely, for
details, see "6. Lock and Set the Parking
Brake" on page 7-4
● To prevent accidental tipping or overturning.
• do not under any circumstances use
unlocked brake pedals to stop the tractor at
high speeds
● Move counterclockwise the brake pedal
connector lock to lock together the left and
right brake pedals when:
• the brake pedals are not used for turning
• traveling on roads
● Always slow down before making turns.
To Next Page
