Yardistry YM12941Z - Page 11

11 support@yardistrystructures.com
31.8 x 82.6 x 1561.3mm (1-1/4 x 3-1/4 x 61-15/32")
2pc. (337) -
Strap Short FSC
Y50229-337
31.8 x 82.6 x 2603.5mm
(1-1/4 x 3-1/4 x 102-1/2")
2pc. (437) -
Strap FSC
Y50229-437
31.8 x 82.6 x 2170.9mm (1-1/4 x 3-1/4 x 85-15/32")
2pc. (430) -
Strap Short - Large Roof FSC
Y50229-430
31.8 x 82.6 x 1605.6mm (1-1/4 x 3-1/4 x 63-13/64")
2pc. (432) -
Strap Right - Large Roof FSC
Y50229-432

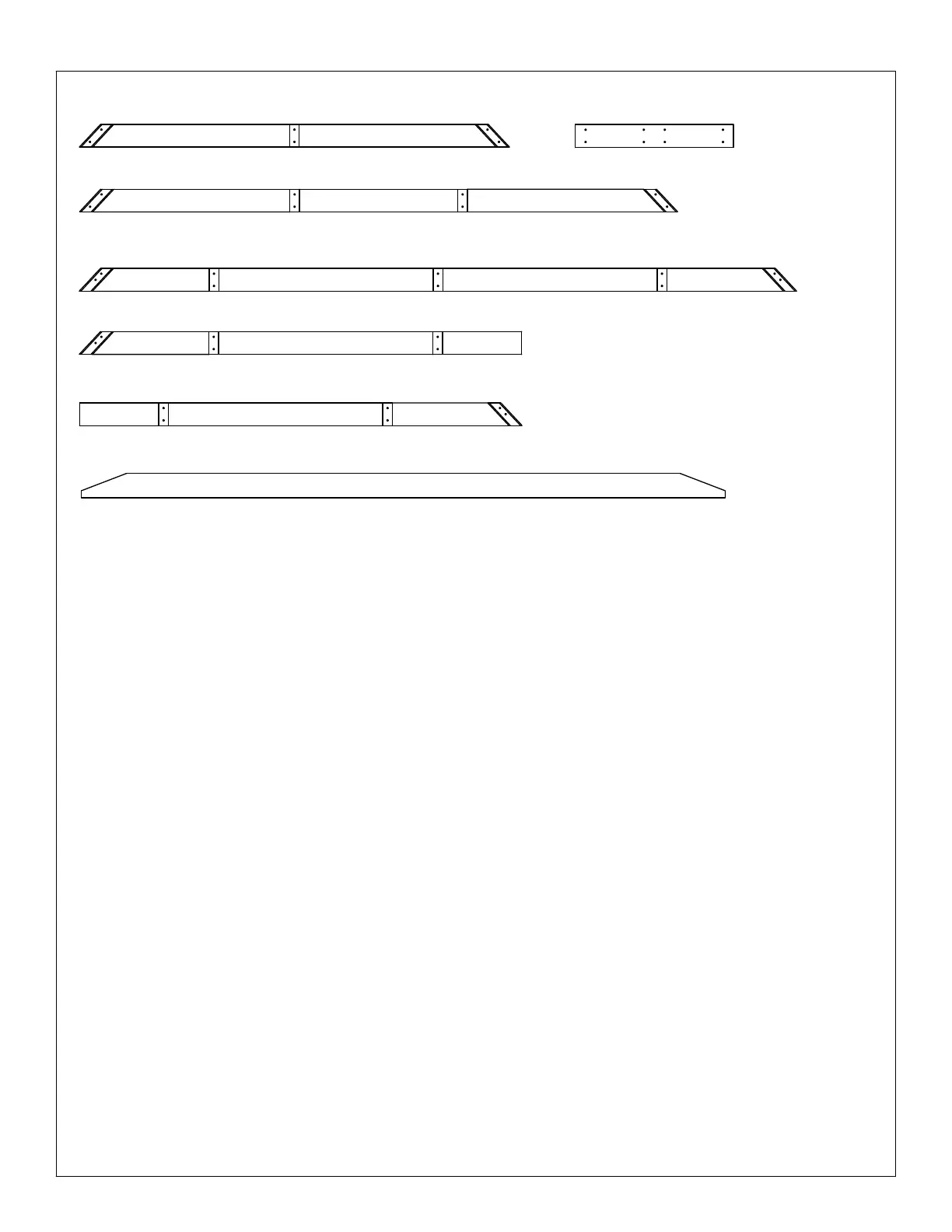

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
31.8 x 82.6 x 574.7mm (1-1/4 x 3-1/4 x 22-5/8")
2pc. (433) -
Strap Brace FSC
Y50229-433
31.8 x 88.9 x 2336.8mm (1-1/4 x 31/2 x 92")
2pc. (461) -
Tie FSC
Y50229-461
31.8 x 82.6 x 1605.6mm (1-1/4 x 3-1/4 x 63-13/64")
2pc. (431) -
Strap Left - Large Roof FSC
Y50229-431
NOTE: Parts have been packed inside (851) 6 x 9 Post.
Check for parts inside the posts.
