A: At the bottom of one (851) 6 x 9 Post insert two 5/16” T-Nuts on the outside of each long side. (g. 2.2)
B: At the bottom of the same (851) 6 x 9 Post place two Post Mounts tight to the bottom and inside faces on the
long sides as shown in g. 2.1 and 2.2. Loosely attach with two 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer
and 1/4-5/16” large washer) per mount so they connect to the T-Nuts. From the bottom attach with two #8 x 1-1/2”
Wood Screws and two #10 x 1-1/4” Pan Screws per mount. Tighten bolts.
C: Flush to the bottom of (851) 6 x 9 Post place one (460) Plinth Long on each long side and one (459) Plinth on
each short side and attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (g. 2.1, 2.2
and 2.3)
D: Repeat Steps A - C three more times to make four Post Assemblies.

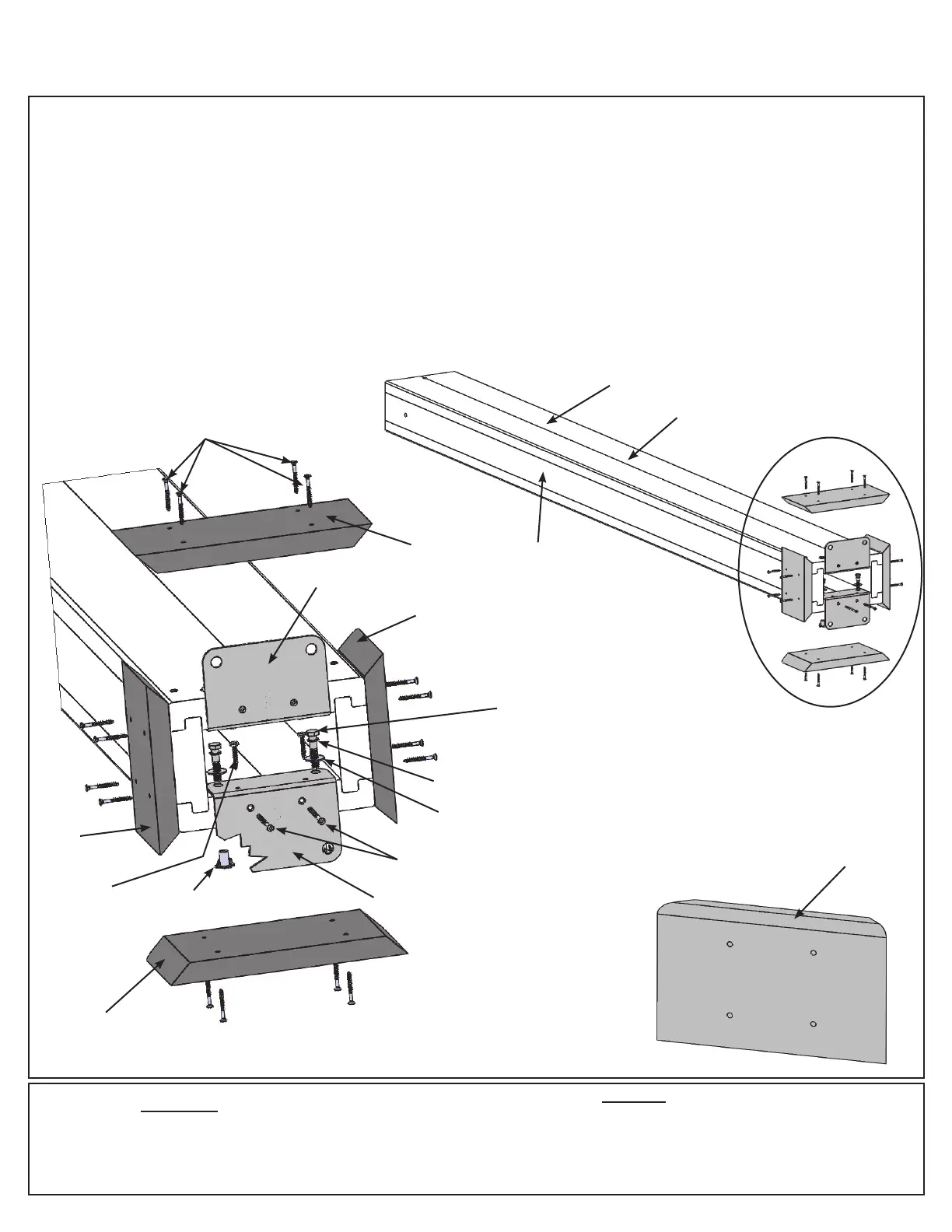

Step 2: Post Assemblies
Wood Parts
Fig. 2.1
(459)
Plinth
4 x (851) 6 x 9 Post
8 x (459) Plinth
8 x (460) Plinth Long
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
outside)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(851) 6 x 9 Post
Post
Mount
Fig. 2.2
Fig. 2.3
Rounded
Edge on Top
Hardware
80 x #8 x 1-1/2” Wood Screw
16 x #10 x 1-1/4” Pan Screw
8 x Post Mount
16 x 5/16” T-Nut
16 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4 - 5/16” large washer)
Post Mount
5/16” T-Nut (x 4
per Post)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4” Hex Bolt
(x2 per Post Mount,
from inside)
Short
Side
Long
Side
(459)
Plinth
(460)
Plinth
Long
(460)
Plinth
Long
#10 x 1-1/4”
Pan Screws
(x 2 per Post
Mount, from
inside)
