Step 14: Attach Roof Panels - Large Roof
Part 2
Fig. 14.4
Hardware
84 x #8 x 1” Roong Screw
Roof Parts
2 x Short Panel Left
2 x Short Panel Right
C: Place one Short Panel Left so it overlaps the Long Panel Left and it is ush to the sides of (438) Rafter
Corner Left and one Short Panel Right so it overlaps the Long Panel Right and it is ush to the side of (439)
Rafter Corner Right. There will be a slight overhang at the bottom of the Large Fascia Beam Assembly. There
should be no overhang at the corners. (g. 14.3 and 14.4)
D: Make sure all panels t properly then attach with 42 #8 x 1” Roong Screws. Be sure not to overtighten
screws (g. 14.3 and 14.4)
Notice there are no screws along the bottom row.
E: Repeat Steps A - D for both Large Roof Rafter Assemblies.
(438) Rafter
Corner Left
(hidden)
(439) Rafter
Corner Right
(hidden)
Long Panel Left
Long Panel Right
Short Panel
Right
Large Fascia
Beam Assembly
DO NOT overtighten
screws, could cause
damage to roong
material
Short Panel
Left
#8 x 1”
Roong
Screws
Panels ush
to corners, no
overhang
Panels overlap
at the seams
No screws along
bottom row
#8 x 1” Roong Screws
(x 42 per assembly)

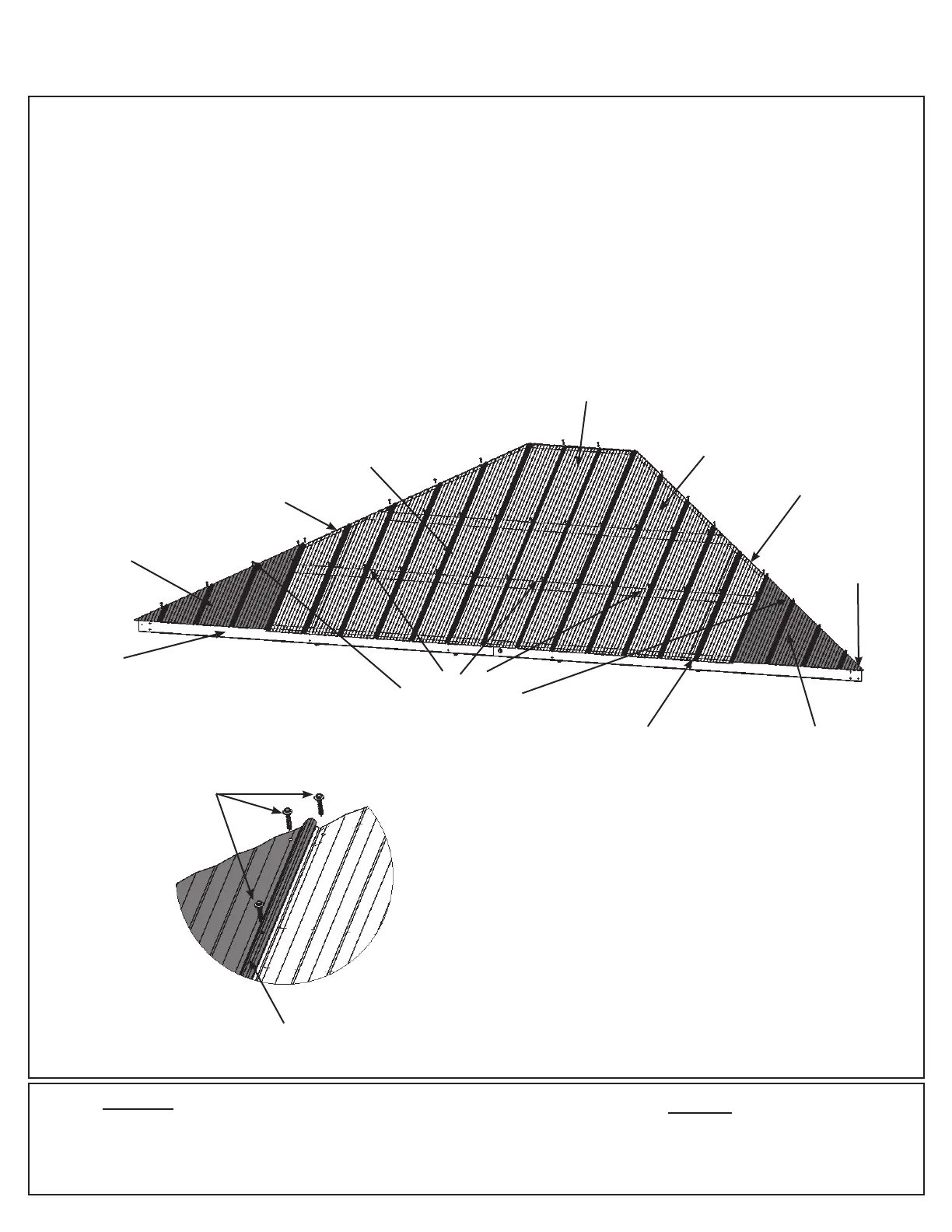

Fig. 14.3
Middle Panel
