Step 13: Attach Ridge Clips and Roof Edges - Small Roof
Hardware

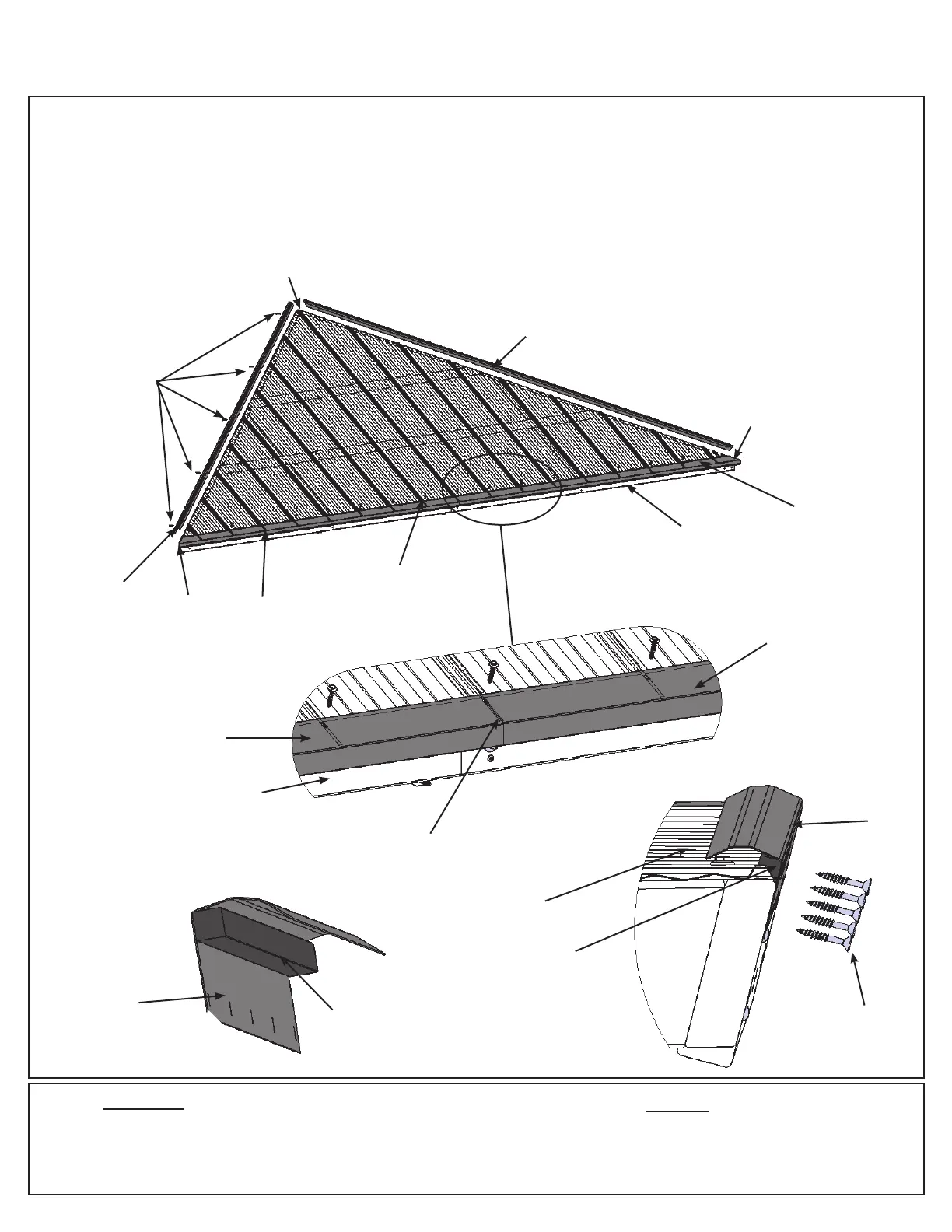

Fig. 13.1
34 x #8 x 1” Roong Screw
20 x #7 x 18 mm (3/4”) Wood Screw
A: Place one Roof Edge Left 72.2 and one Roof Edge Right 72.2 on the bottom of each Small Roof Rafter
Assembly so the ends are ush with the outside ends of the Fascia Beam Assembly and meet tight in the centre.
Attach both Roof Edges with 17 #8 x 1” Roong Screws per Small Roof Rafter assembly. (g. 13.1 and 13.2)
B: Place one Weather Seal on the inside of each Ridge Clip 102.5 then place one Ridge Clip 102.5 on each
side of each Small Roof Rafter Assembly so they cover the panels and attach with ve #7 x 18mm (3/4”) Wood
Screws per Ridge Clip 102.5. (g. 13.1, 13.3 and 13.4)
Weather
Seal
Fig. 13.2
#7 x 18 mm (3/4”)
Wood Screws (x 5
per side)
Panels
Componets:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 72.2
4 x Ridge Clip 102.5
4 x Weather Seal
Fascia Beam
Assembly
Flush
Flush
#8x 1” Roong
Screws (x 17)
Fascia Beam
Assembly
Fig. 13.3
Weather
Seal
Underneath,
Side View
Fig. 13.4
Side View
#7 x 18mm (3/4”)
Wood Screws (x 5
per side)
Flush
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
