40 support@yardistrystructures.com
Tight at centre

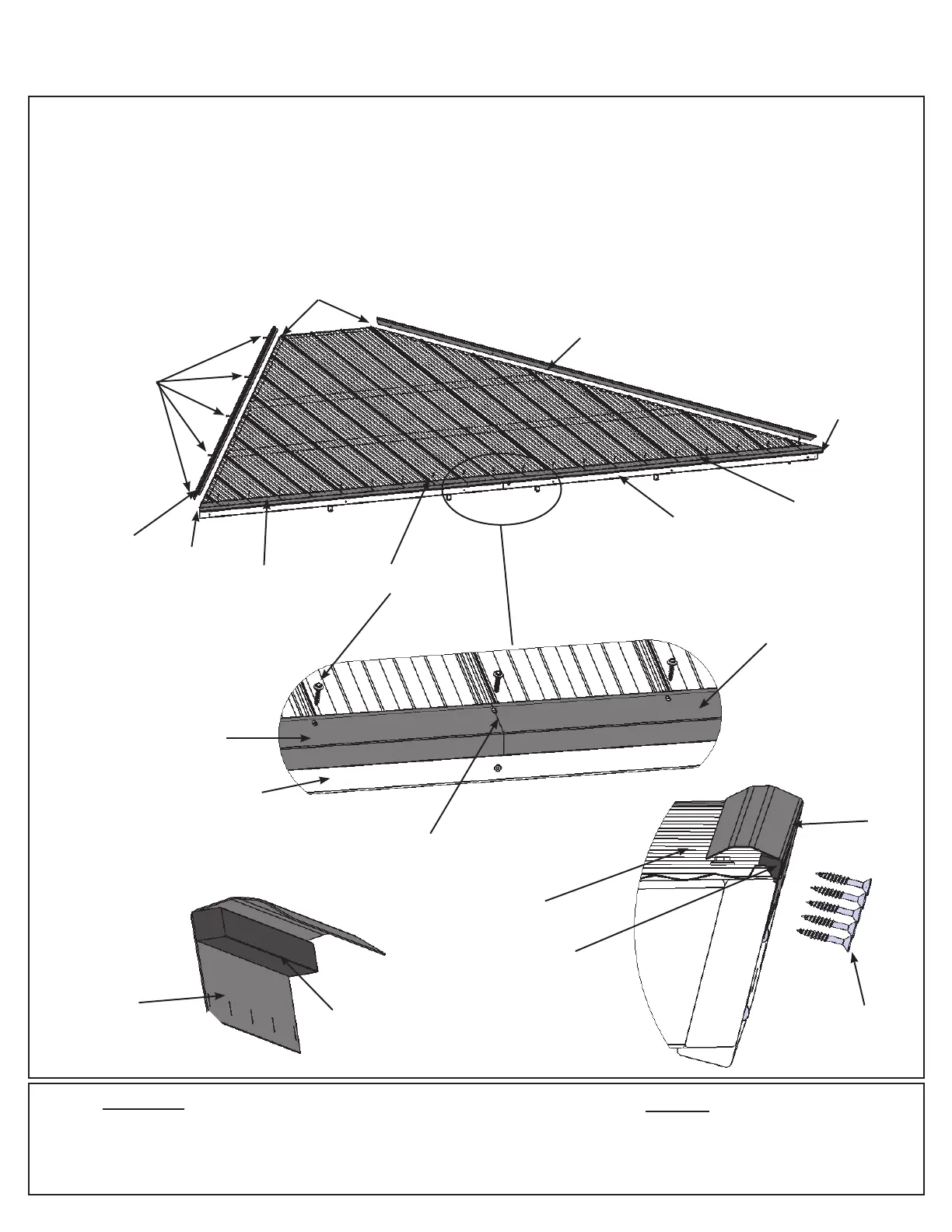

Step 15: Attach Ridge Clips and Roof Edges - Large Roof
Hardware
Fig. 15.1
40 x #8 x 1” Roong Screw
20 x #7 x 18 mm (3/4”) Wood Screw
A: Place one Roof Edge Left 72.2 and one Roof Edge Right 96.2 on the bottom of each Large Roof Rafter
Assembly so the ends are ush with the outside ends of the Large Fascia Beam Assembly and meet tight in the
centre. Attach both Roof Edges with 20 #8 x 1” Roong Screws per Large Roof Rafter assembly. (g. 15.1 and
15.2)
B: Place one Weather Seal on the inside of each Ridge Clip 102.5 then place one Ridge Clip 102.5 on each
side of each Large Roof Rafter Assembly so they cover the panels and attach with ve #7 x 18mm (3/4”) Wood
Screws per Ridge Clip 102.5. (g. 15.1, 15.3 and 15.4)
Weather
Seal
Fig. 15.2
Panels
Componets:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 96.2
4 x Ridge Clip 102.5
4 x Weather Seal
Roof Edge
Left 72.2
Roof Edge
Right 96.2
Large Fascia
Beam Assembly
Flush
Flush
#8x 1” Roong
Screws (x 20)
Large Fascia
Beam Assembly
Fig. 15.3
Weather
Seal
Underneath,
Side View
Ridge Clip
102.5
Fig. 15.4
Side View
Flush
Roof Edge
Left 72.2
Roof Edge
Right 96.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
#7 x 18 mm (3/4”)
Wood Screws (x 5
per side)
#7 x 18mm (3/4”)
Wood Screws (x 5
per side)
