49 support@yardistrystructures.com
Hardware
8 x #8 x 2-1/2” Wood Screw
8 x #8 x 1” Pan Screw
A: Make sure middle Roof to Beam Brackets are ush and tight to the Beam Assemblies. Lift in centre if needed.
B: From outside the assembly attach Roof Panel Assemblies together at the Fascia Beam Assembly Ends with
two #8 x 2-1/2” Wood Screws per corner. A helper may need to lift the centre of the roof to bring the corners tight
together. (g. 20.1 and 20.2)
C: Align Roof Panel Assemblies to sit centred on Roof to Post Brackets then attach with two #8 x 1” Pan Screws
per bracket. (g. 20.2)
#8 x 1” Pan
Screw
Fig. 20.1
Fig. 20.2
Fascia Beam
Assembly
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
Roof to Post
Bracket
#8 x2-1/2”
Wood Screw
Fascia Beam
Assembly

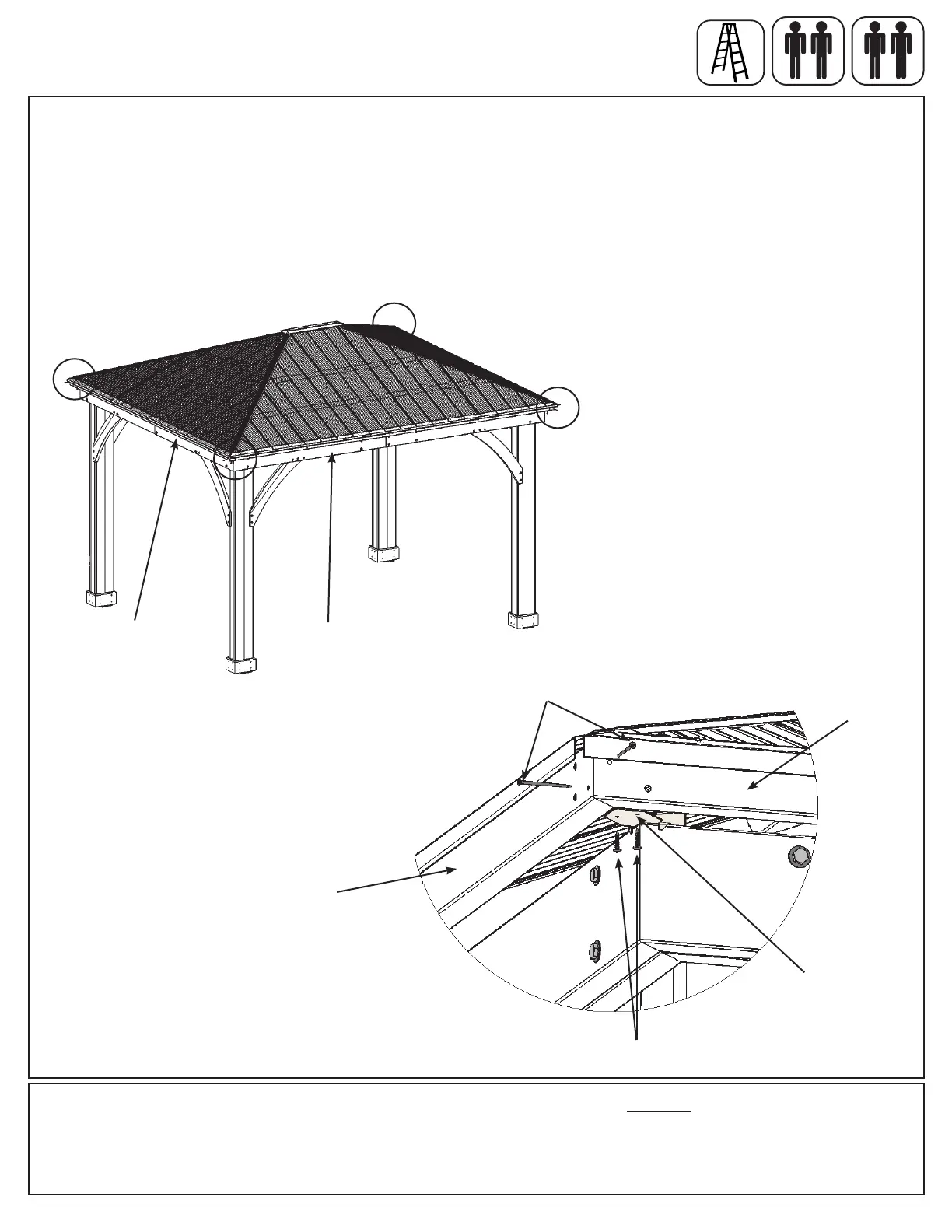

Step 20: Secure Roof Corners
x 3
