D: Make sure each corner is square and level then attach Beam Assemblies to Post Assemblies with two 5/16
x 4-3/4” Lag Screws (with 1/4-5/16” large washer) per corner. (g. 5.4)
E: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
8 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
1/4-5/16”
Large Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw

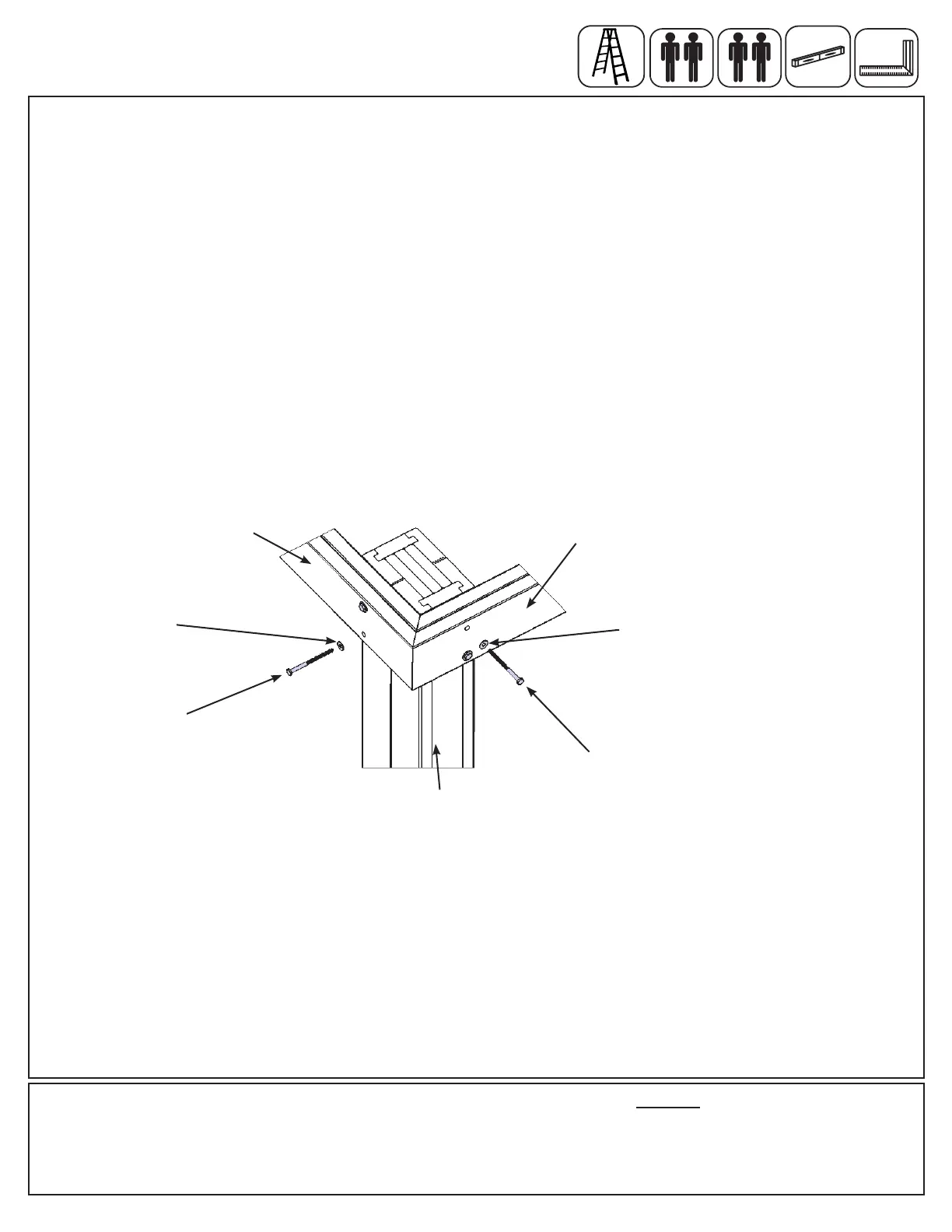

Fig. 5.4
Long Beam
Assembly
Short Beam
Assembly
Post Assembly
Step 5: Frame Assembly and Anchoring
Part 2
x 3
1/4-5/16”
Large Washer
