Hardware
#8 x 1”
Roong
Screws

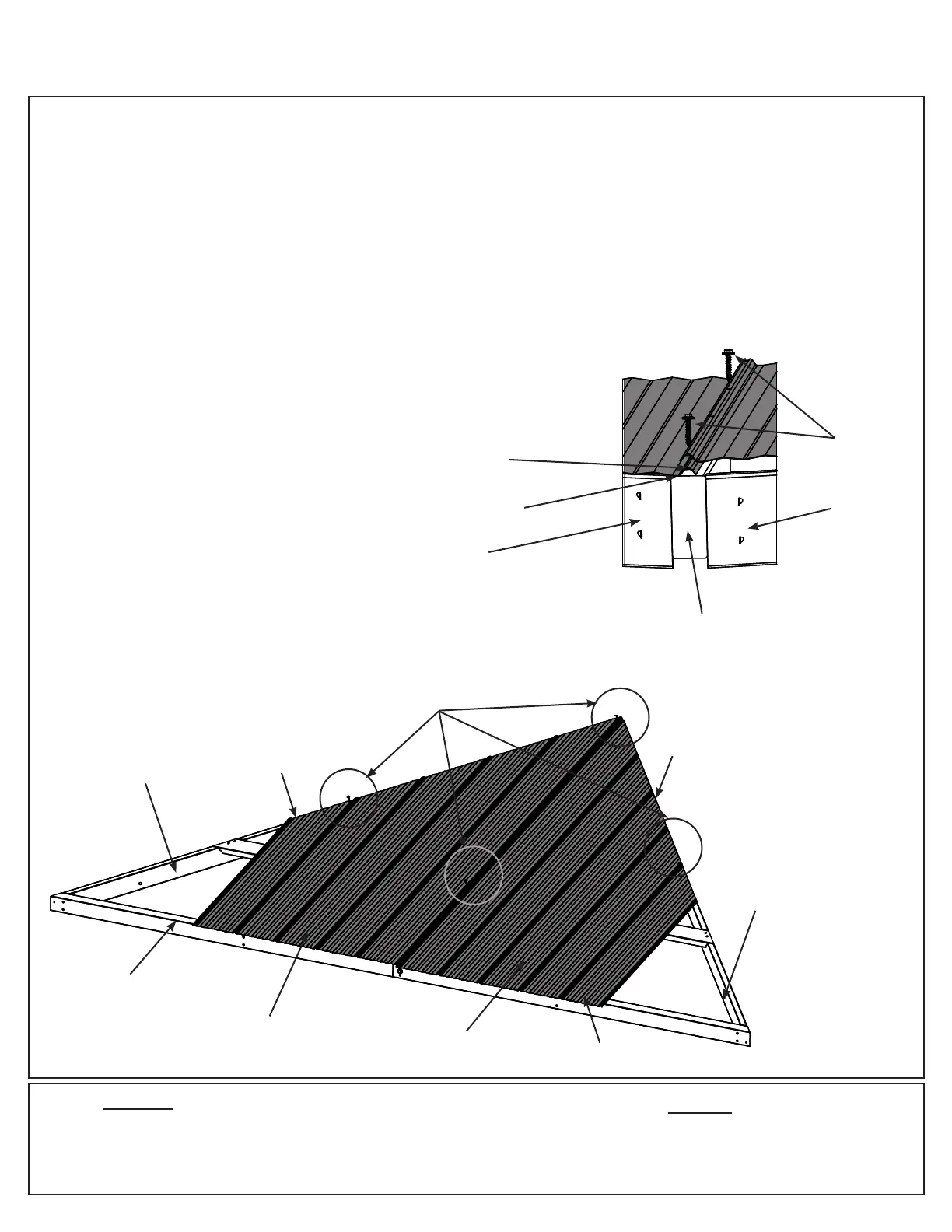

Step 12: Attach Roof Panels - Small Roof
Part 1
A: Place one Long Panel Left on the front of one Small Roof Rafter Assembly so it is ush to the side of (438)
Rafter Corner Left and a slight overhang at the bottom of the Fascia Beam Assembly. Holes should line up with
(440) Rafter. (g. 12.1 and 12.2)
B: Place one Long Panel Right on Small Roof Rafter Assembly so it overlaps the Long Panel Left and it is ush
to the side of (439) Rafter Corner Right and a slight overhang at the bottom of the Fascia Beam Assembly. (g.
12.1 and 12.2)
C: Attach both Left and Right Long Panels to Small Roof Rafter Assembly with four #8 x 1” Roong Screws in
locations shown in g. 12.1. Be sure not to overtighten screws.
D: Repeat Steps A - C for both Small Roof Rafter Assemblies.
Fig. 12.1
Fig. 12.2
8 x #8 x 1” Roong Screw
Roof Parts
2 x Long Panel Left
2 x Long Panel Right
Front View
Fascia Beam
Assembly
(438) Rafter
Corner Left
(439) Rafter
Corner Right
Top, Side View
Panels overlap
at the seams
(440)
Rafter
(439) Rafter
Corner Right
(438) Rafter
Corner Left
#8 x 1”
Roong
Screws
Long Panel
Left
Long Panel
Right
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Slight overhang
Lower 3 screws may have
to be removed in next step
to properly place Left and
Right Short Panels
Flush
