YASKAWA A1000 Series Installation Manual

5 Installation Procedure
12 YASKAWA ELECTRIC TOBP C730600 38C 1000-Series Option AI-A3 Installation Manual
◆ Prior to Installing the Option
Prior to installing the option, wire the drive, make the necessary connections to the drive
terminals, and verify that the drive functions normally. Refer to the Quick Start Guide
packaged with the drive for information on wiring and connecting the drive.

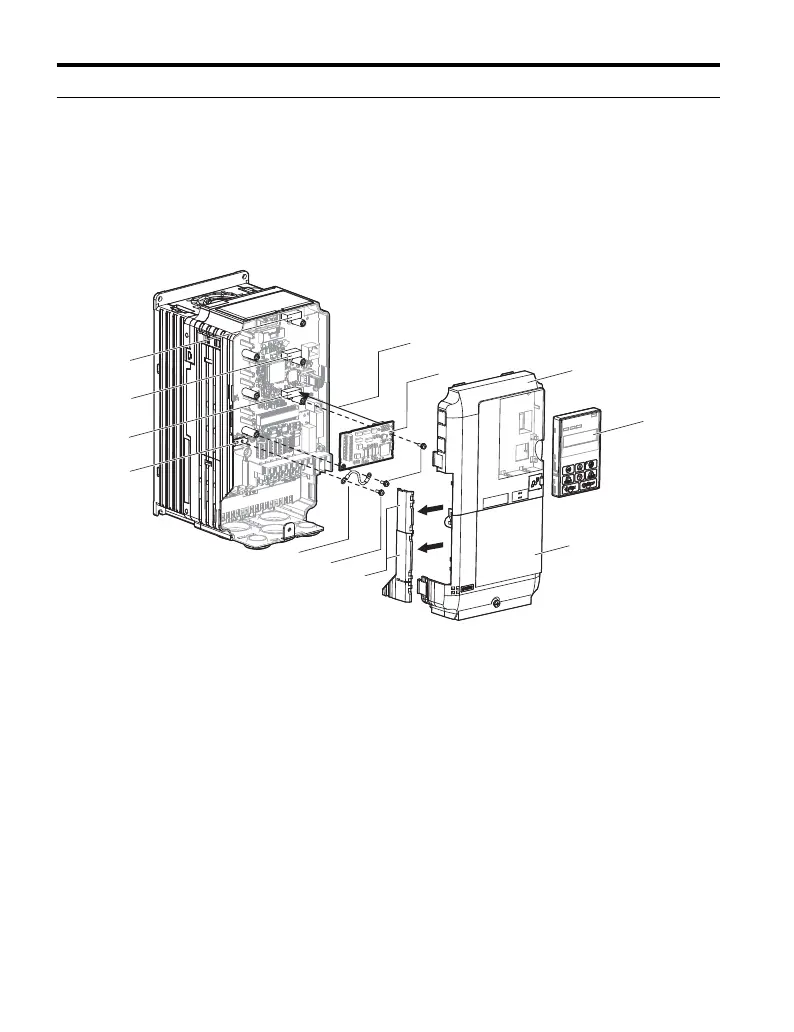

Figure 2 shows an exploded view of the drive with the option and related components for
reference.
Figure 2
Figure 2 Drive Components with Option
A – Insertion point for CN5 G – Included screws
B – Option card H – Ground wire
C – Front cover I – Drive grounding terminal (FE)
D – Digital operator J – Connector CN5-A
E – Terminal cover K – Connector CN5-B
F – Removable tabs for wire routing L – Connector CN5-C
E
G
L
K
J
I
H
B
A
C
D
F

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
