YASKAWA A1000 Series Installation Manual

5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 38C 1000-Series Option AI-A3 Installation Manual 19
8. Replace and secure the front covers of the drive (C, E) and replace the digital
operator (D).

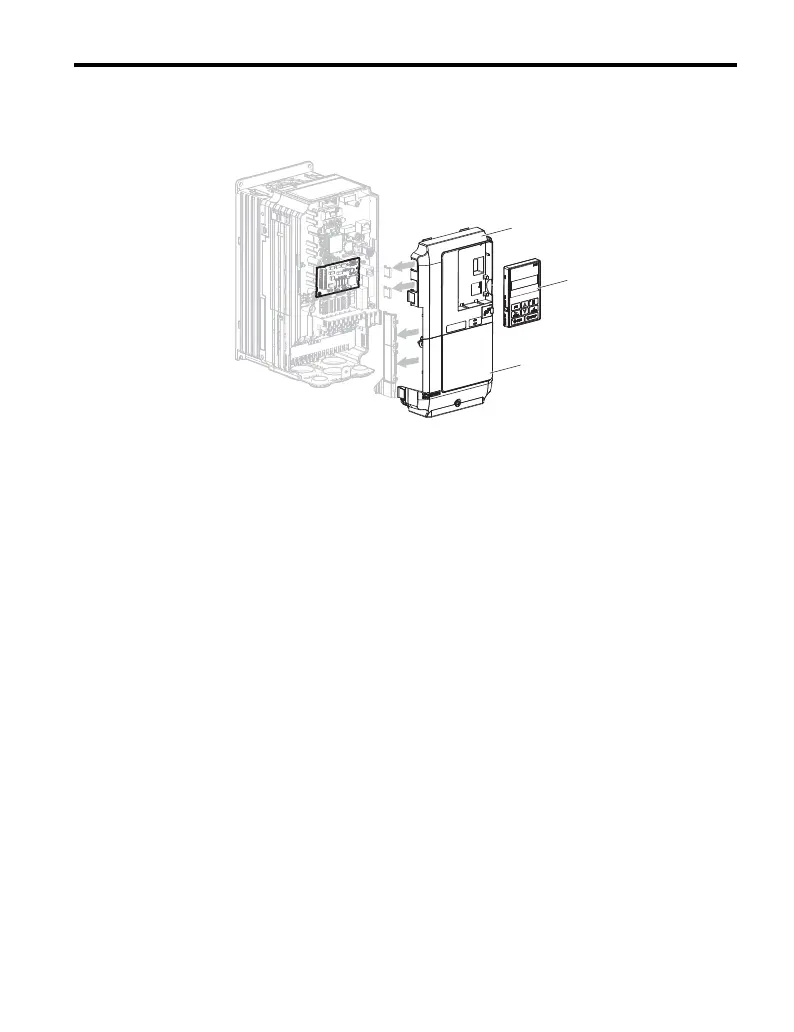

Figure 11
Figure 11 Replace the Front Covers and Digital Operator
Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto
the drive. Make sure cables are not pinched between the front covers and the drive when
replacing the covers.
9. Set drive parameters in Table 5 for proper option performance.
C
D
E

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
