YASKAWA A1000 Series Installation Manual

5 Installation Procedure
20 YASKAWA ELECTRIC TOBP C730600 38C 1000-Series Option AI-A3 Installation Manual
◆ Wire Gauges, Tightening Torques, and Crimp Terminals
■ Wire Gauges and Tightening Torques
Wire gauge and torque specifications are listed in Tabl e 2 .

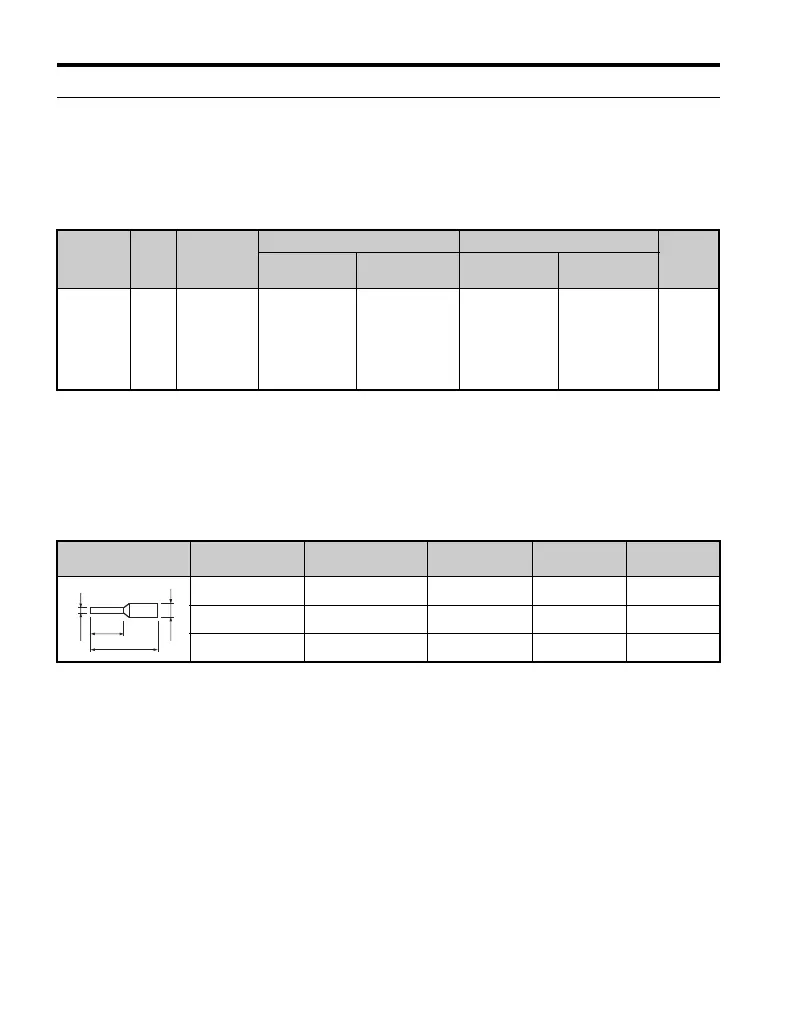

Table 2 Wire Gauges and Tightening Torques
■
Crimp Terminals
Yaskawa recommends using CRIMPFOX 6 by Phoenix Contact or equivalent crimp
terminals with the specifications listed in Table 3 for wiring to ensure proper connections.
Note: Properly trim wire ends so loose wire ends do not extend from the crimp terminals.
Table 3 Crimp Terminal Sizes
Terminal
signal
Screw
Size
Tightening
Torque
Nxm (inxlb)
Bare Cable Crimp Terminals
Wire
Type
Applicable
Gauges mm
2
Recomm.
Gauge mm
2
Applicable
Gauges mm
2
Recomm.
Gauge mm
2
V1, V2,
V3, AC,
FE
M2
0.22 to 0.25
(1.95 to 2.21)
Stranded wire:
0.25 to 1.0
(24 to 17 AWG)
Solid wire:
0.25 to 1.5
(24 to 16 AWG)
0.75
(18 AWG)
0.25 to 0.5
(24 to 20 AWG)
0.5
(20 AWG)
Shielded
twisted
pair, etc.
Wire Gauge
mm
2
Phoenix Contact
Model
L
mm (in)
d1
mm (in)
d2
mm (in)
0.25 (24 AWG) AI 0.25 - 6YE 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.34 (22 AWG) AI 0.34 - 6TQ 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.5 (20 AWG) AI 0.5 - 6WH 14 (9/16) 1.1 (3/64) 2.5 (3/32)
d1
d2
6 mm
L

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
