YASKAWA A1000 - Dimensions; IP20;NEMA Type 1 Enclosure Drives

2 Mechanical Installation
10 YASKAWA ELECTRIC TOEP C710616 27D YASKAWA AC Drive - A1000 Quick Start Guide

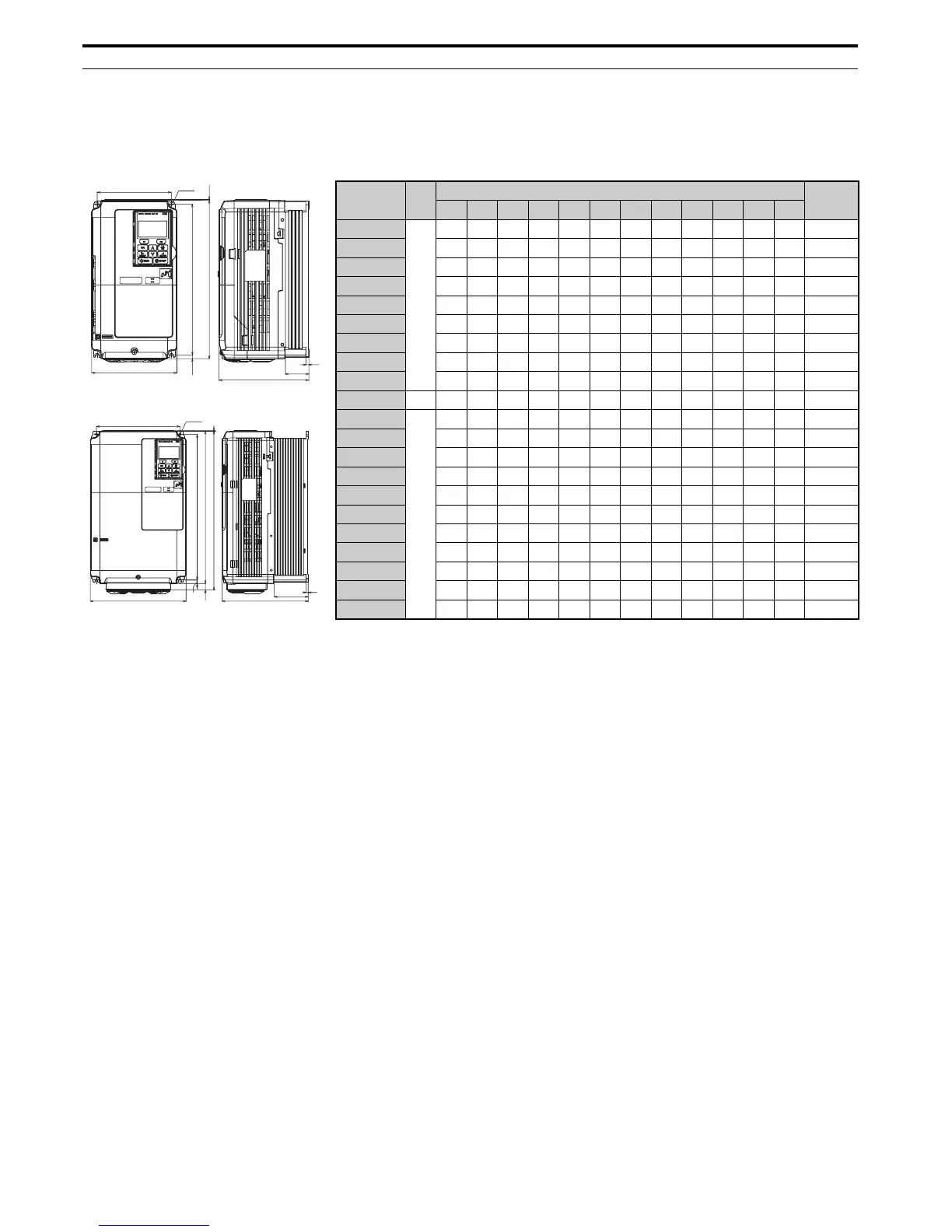

 Dimensions
 IP20/NEMA Type 1 Enclosure Drives
Note: IP20/NEMA Type 1 Enclosure drives are equipped with a top protective cover. Removing this cover voids NEMA Type 1
protection but still keeps IP20 conformity.
Model
CIMR-A
Fig.
Dimensions (mm)
Weight
(kg)
W H D W1 H0 H1 H2 H3 D1 t1 t2 d
2A0004
1
140 260 147 122 – 248 6 – 38 5 – M5 3.1
2A0006 140 260 147 122 – 248 6 – 38 5 – M5 3.1
2A0010 140 260 147 122 – 248 6 – 38 5 – M5 3.2
2A0012 140 260 147 122 – 248 6 – 38 5 – M5 3.2
2A0021 140 260 164 122 – 248 6 – 55 5 – M5 3.5
2A0030 140 260 167 122 – 248 6 – 55 5 – M5 4.0
2A0040 140 260 167 122 – 248 6 – 55 5 – M5 4.0
2A0056 180 300 187 160 – 284 8 – 75 5 – M5 5.6
2A0069 220 350 197 192 – 335 8 – 78 5 – M6 8.7
2A0081 2 220 365 197 192 350 335 8 15 78 5 – M6 9.7
4A0002
1
140 260 147 122 – 248 6 – 38 5 – M5 3.2
4A0004 140 260 147 122 – 248 6 – 38 5 – M5 3.2
4A0005 140 260 147 122 – 248 6 – 38 5 – M5 3.2
4A0007 140 260 164 122 – 248 6 – 55 5 – M5 3.4
4A0009 140 260 164 122 – 248 6 – 55 5 – M5 3.5
4A0011 140 260 164 122 – 248 6 – 55 5 – M5 3.5
4A0018 140 260 167 122 – 248 6 – 55 5 – M5 3.9
4A0023 140 260 167 122 – 248 6 – 55 5 – M5 3.9
4A0031 180 300 167 160 – 284 8 – 55 5 – M5 5.4
4A0038 180 300 187 160 – 284 8 – 75 5 – M5 5.7
4A0044 220 350 197 192 – 335 8 – 78 5 – M6 8.3
W1
1.5
H
H1
H2
W
D
D1
t1
H2
W1
1.5
H
H0 H1
W
D1
D
t1
H3
Figure 1
Figure 2
4-d
4-d
