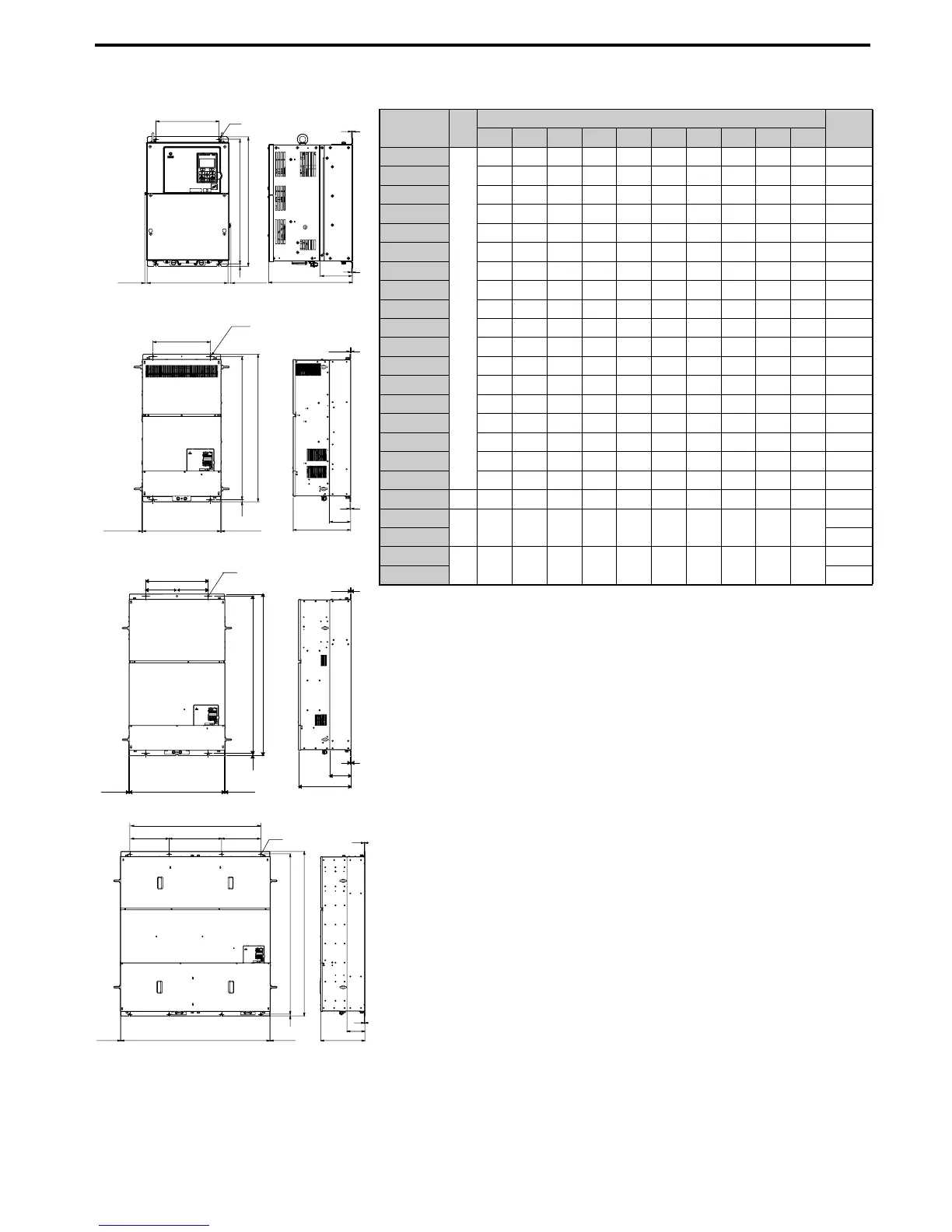

YASKAWA A1000 - IP00 Enclosure Drives

2 Mechanical Installation
YASKAWA ELECTRIC TOEP C710616 27D YASKAWA AC Drive - A1000 Quick Start Guide 11
 IP00 Enclosure Drives
Model
CIMR-A
Fig.
Dimensions (mm)
Weight
(kg)
W H D W1 H1 H2 D1 t1 t2 d
2A0110
3
250 400 258 195 385 7.5 100 2.3 2.3 M6 21
2A0138 275 450 258 220 435 7.5 100 2.3 2.3 M6 25
2A0169 325 550 283 260 535 7.5 110 2.3 2.3 M6 37
2A0211 325 550 283 260 535 7.5 110 2.3 2.3 M6 38
2A0250 450 705 330 325 680 12.5 130 3.2 3.2 M10 76
2A0312 450 705 330 325 680 12.5 130 3.2 3.2 M10 80
2A0360 500 800 350 370 773 13 130 4.5 4.5 M12 98
2A0415 500 800 350 370 773 13 130 4.5 4.5 M12 99
4A0058 250 400 258 195 385 7.5 100 2.3 2.3 M6 21
4A0072 275 450 258 220 435 7.5 100 2.3 2.3 M6 25
4A0088 325 510 258 260 495 7.5 105 2.3 3.2 M6 36
4A0103 325 510 258 260 495 7.5 105 2.3 3.2 M6 36
4A0139 325 550 283 260 535 7.5 110 2.3 2.3 M6 41
4A0165 325 550 283 260 535 7.5 110 2.3 2.3 M6 42
4A0208 450 705 330 325 680 12.5 130 3.2 3.2 M10 79
4A0250 500 800 350 370 773 13 130 4.5 4.5 M12 96
4A0296 500 800 350 370 773 13 130 4.5 4.5 M12 102
4A0362 500 800 350 370 773 13 130 4.5 4.5 M12 107
4A0414 4 500 950 370 370 923 13 135 4.5 4.5 M12 125
4A0515
5 670 1140 370 440 1110 15 150 4.5 4.5 M12
216
4A0675 221
4A0930
6 1250 1380 370 1110 1345 15 150 4.5 4.5 M12
545
4A1200 555
D
Figure 6
D1
D
t2
H1
H2
H
4-d
W1
W
Max 7.7Max 7.7
t1
W1
4-d
H1
H
H2
Max 10 Max 10
W
t2
t1
D1
D
Figure 3
Figure 4
Figure 5
D1
W
H1
H2
H
Max 6Max 6
4-d
t2
t1
W1
220 220
330 330
8-d
440
W1
H1 H
W
H2
D
Max 6Max 6
D1
t1
t2
