5 Replace Cooling Fans and Circulation Fans
YASKAWA TOEP C730600 0FA Fan Replacement Procedure 29
1. Connect the power supply connectors, and attach the protective tubes.
A - Protective tube

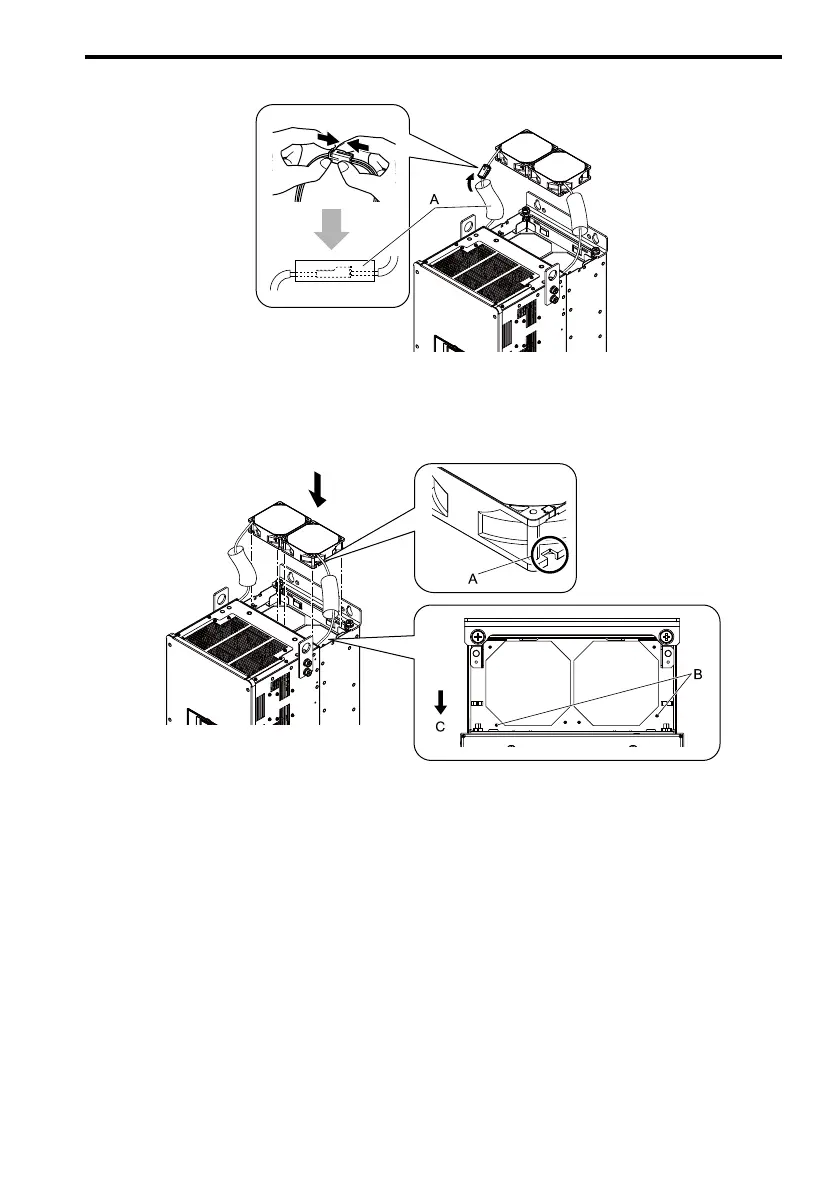

Figure 5.41 Connect the Power Supply Connectors
2. Align the notches on the fan with the pins on the drive and install the cooling fan in the
drive.
A - Notch on fan
B - Alignment pins on drive
C - Front of drive
Figure 5.42 Install the Cooling Fans
