5 Replace Cooling Fans and Circulation Fans
30 YASKAWA TOEP C730600 0FA Fan Replacement Procedure

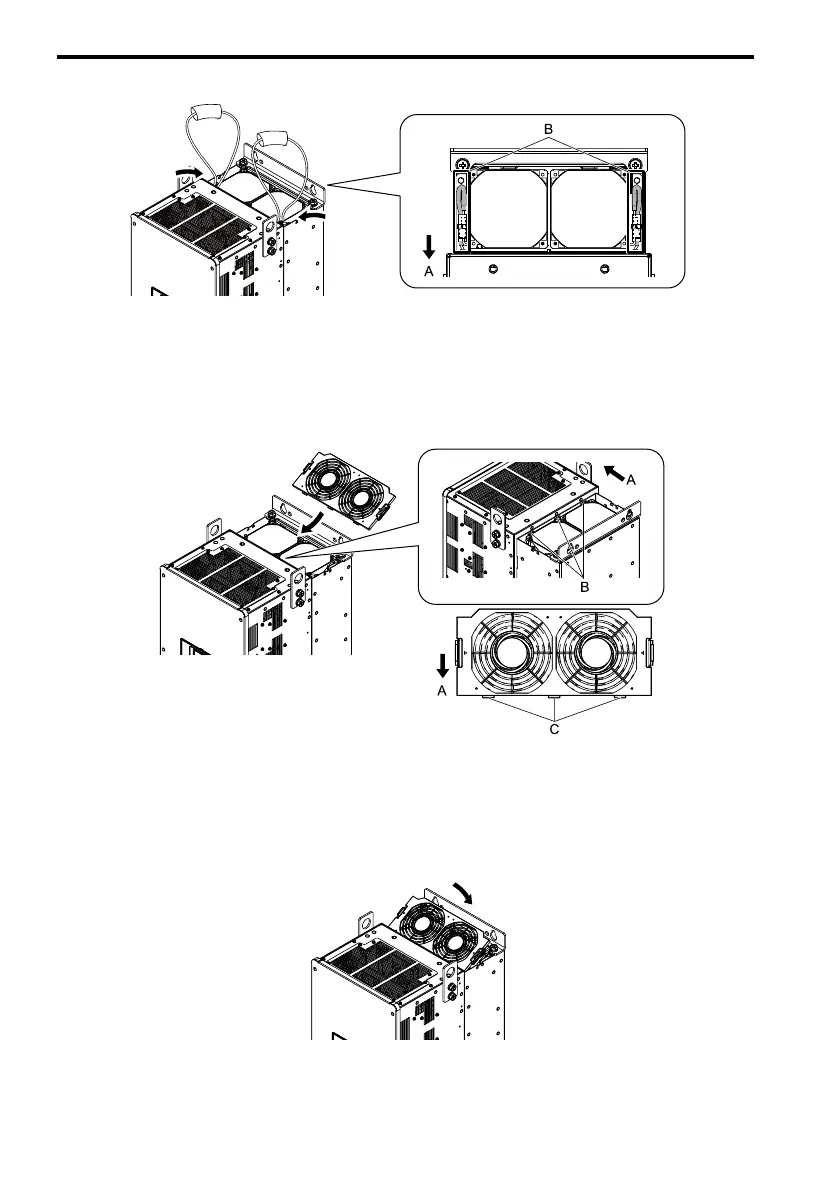

3. Put the cables and connectors in the recess of the drive.
A - Front of drive B - Recess for cable and connector
*1
Figure 5.43 Put the Cables and Connectors in the Drive Recess
*1 Make sure that the cable and connector are in the correct space.
4. Hold the fan finger guard at an angle and put the connector tabs on the fan finger guard
into the holes on the drive.
A - Front of drive
B - Drive holes
C - Tabs
Figure 5.44 Install the Fan Finger Guard
5. Push the tabs on the left and right sides of the fan finger guard and click it into place on
the drive.
Figure 5.45 Install the Fan Finger Guard
