5 Replace Cooling Fans and Circulation Fans
YASKAWA TOEP C730600 0FA Fan Replacement Procedure 37
1. Connect the power supply connector.

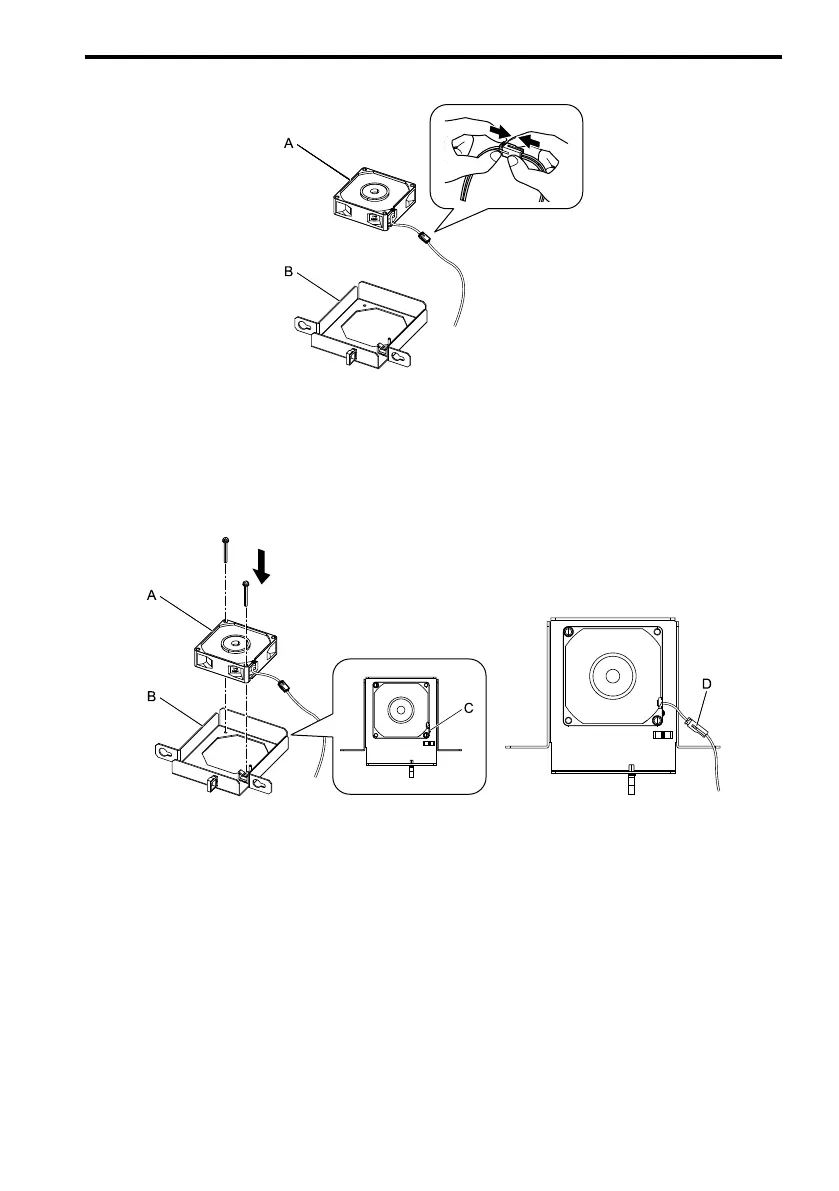

A - Cooling fan B - Fan unit base
Figure 5.57 Connect the Power Supply Connector
2. Align the pins on the fan unit base with the notches on the fan and put the fan unit base
in the fan unit, then use the screws to safety it.
Tighten the screws to a correct tightening torque:
• 0.98 N∙m to 1.33 N∙m (8.67 in∙lb to 11.77 in∙lb)
A - Cooling fan
B - Fan unit base
C - Alignment pin on fan unit base
D - Circulation fan connector
Figure 5.58 Install the Cooling Fan
