7 Setting and Confirming CDBR Braking Unit Operation
58 YASKAWA ELECTRIC TOBP C720600 01E YASKAWA AC Drive Option CDBR-D, LKEB- Installation Manual
■ Braking Activation Voltage Rotary Switch (S3)
Set the braking activation voltage rotary switch S3 to match the power supply of the main
circuit. Refer to Table 13 for details on rotary switch S3 position and braking activation
voltage.
Note: Rotary switch S3 does not typically require adjustment.
NOTICE: Consider the amount of voltage fluctuation in the DC bus when changing rotary switch S3 setting
values. Setting the braking activation voltage to a low value and energizing the drive may activate the CDBR
and overheat the braking resistor.
NOTICE: Firmly click the switch into the proper position. A switch stuck between positions may cause the
CDBR to operate incorrectly.

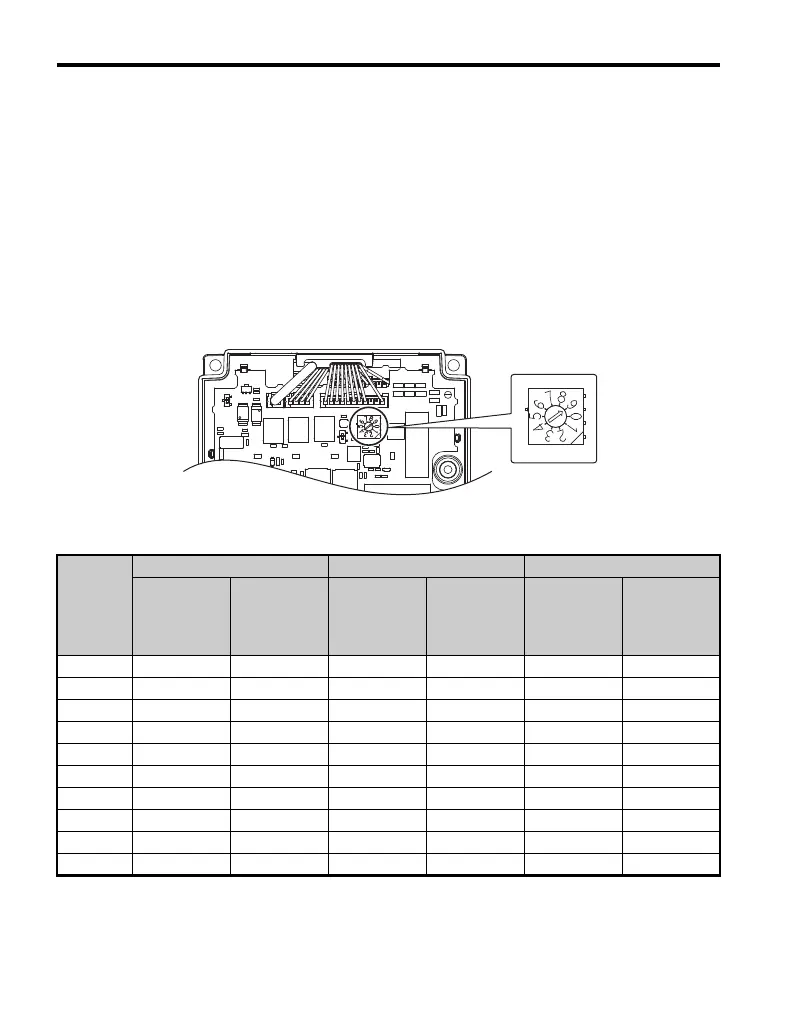

Figure 26
Figure 26 Braking Activation Voltage Rotary Switch (S3)
Table 13 Rotary Switch S3 Settings and Braking Activation Voltage
Setting
<1> Default Setting
200 V Class 400 V Class 600 V Class
Input
Voltage
(V)
Braking
Activation
Voltage (V)
(PN Bus
Voltage)
Input
Voltage
(V)
Braking
Activation
Voltage (V)
(PN Bus
Voltage)
Input
Voltage
(V)
Braking
Activation
Voltage (V)
(PN Bus
Voltage)
0 160 270 (TYP) 380 630 (TYP) 500 825 (TYP)
1 170 282 (TYP) 390 644 (TYP) 505 839 (TYP)
2 175 294 (TYP) 400 659 (TYP) 515 853 (TYP)
3 185 307 (TYP) 405 673 (TYP) 525 867 (TYP)
4 190 319 (TYP) 415 688 (TYP) 530 881 (TYP)
5 200 331 (TYP) 425 702 (TYP) 540 894 (TYP)
6 208 343 (TYP) 430 717 (TYP) 550 908 (TYP)
7 215 356 (TYP) 440 731 (TYP) 555 922 (TYP)
8 220 368 (TYP) 450 746 (TYP) 565 936 (TYP)
9
<1> 230 380 (TYP) 460 760 (TYP) 575 950 (TYP)
Default: 9
