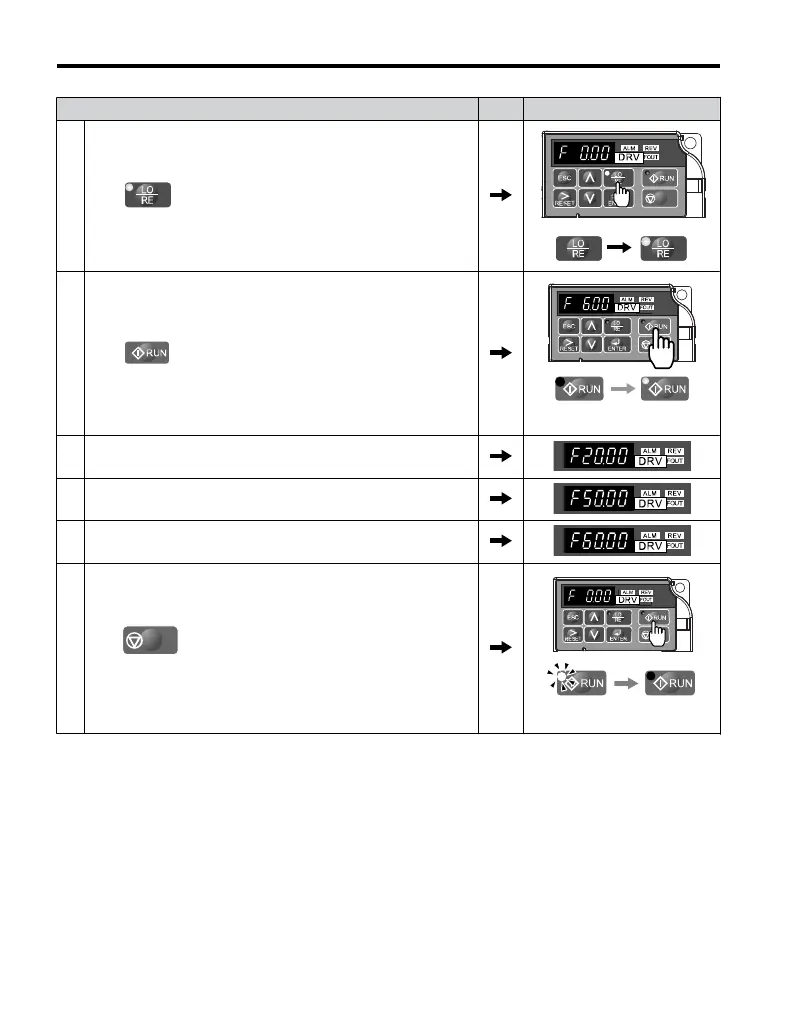

Step Display/Result
5.
Press
to select LOCAL. The LO/RE light will turn on.
STOP
6.
Press to run the motor at 5 Hz. The RUN light will turn on.
STOP
Off On
7.
With SW1 closed, the drive runs the motor at Multi-Step Speed 2
(20 Hz).
8.
With SW1 open and SW2 closed, the drive runs the motor at
Multi-Step 3 (50 Hz).
9.
With both SW1 and SW2 closed, the drive runs the motor at
Multi-Step 4 (60 Hz).
10.
Press
STOP
to stop the drive. The RUN light will flash until the
motor comes to a complete stop.
STOP
Flashing Off
<1> When the frequency reference is assigned to the LED operator (b1-01=0), the first step in a multi-step speed
sequence comes from d1-01.
Note: When a run command is input
from the control circuit terminal, the frequency reference value is selected
as follows:
When b1-01 = 0 and the run command is given, the drive uses the frequency set to d1-01.
When b1-01 = 1 and the run command is given, the drive uses the frequency reference value input to
analog control terminal A1.
4.5 Basic Operation
106
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
