2 Mechanical Installation
EN 8 YASKAWA Europe TOEP C710606 15C YASKAWA AC Drive - V1000 Quick Start Guide

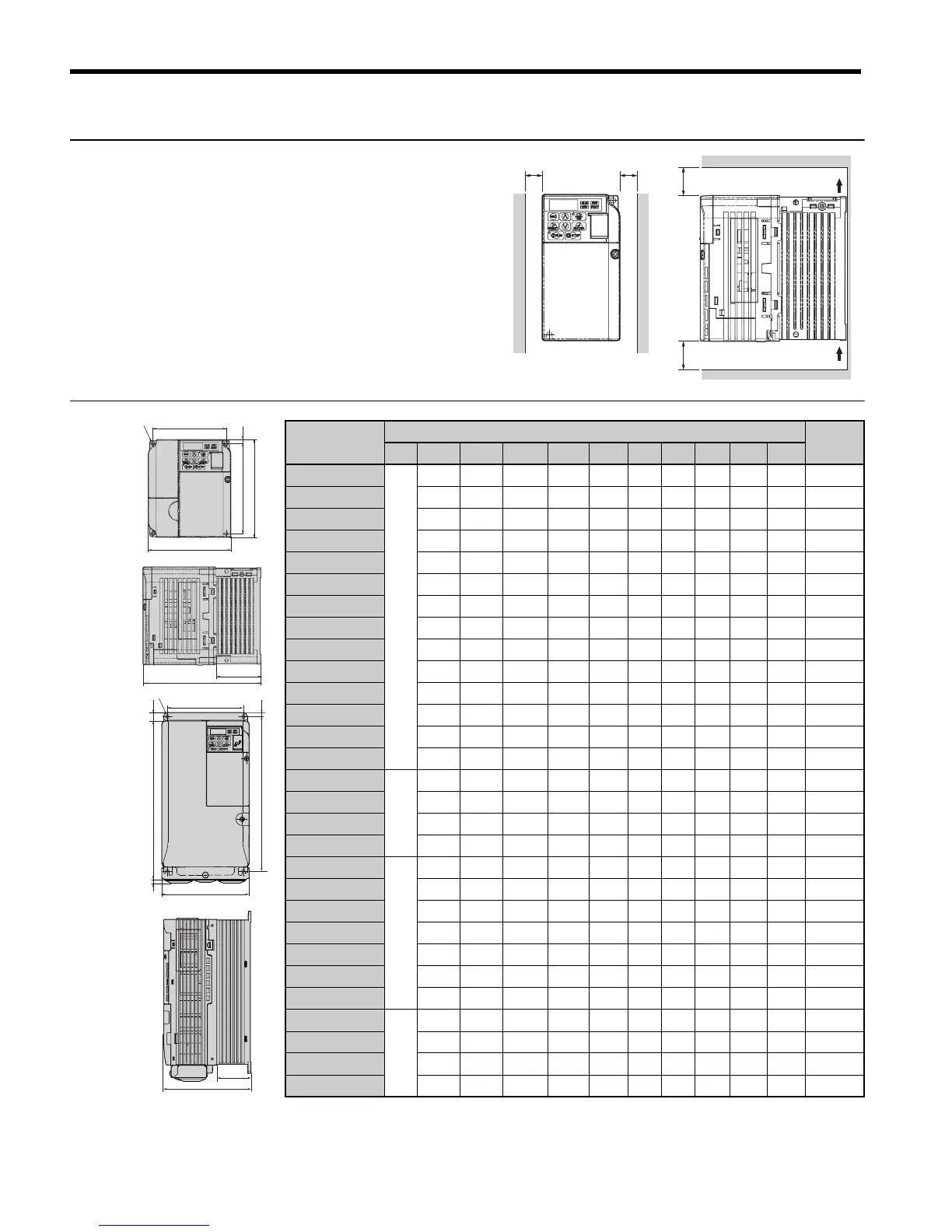

Installation Orientation and Spacing
Always install the drive in an upright position.
Leave space around the unit for proper cooling
as shown in the figure on the right.
Note: Several units can be installed closer
together than shown in the figure by
using “Side-by-Side” mounting. For
details please refer to the Technical
Manual.
Dimensions
Model
CIMR-VC
Dimensions (mm)
Weight
(kg)
Fig. W H D W1 H1 H2 H3 H4 D1 d
BA0001B
A
68 128 76 56 118 5 - - 6.5 M4 0.6
BA0002B 68 128 76 56 118 5 - - 6.5 M4 0.6
BA0003B 68 128 118 56 118 5 - - 38.5 M4 1.0
BA0006B 108 128 137.5 96 118 5 - - 58 M4 1.7
BA0010B 108 128 154 96 118 5 - - 58 M4 1.8
BA0012B 140 128 163 128 118 5 - - 65 M4 2.4
BA0018B 170 128 180 158 118 5 - - 65 M4 3.0
2A0001B 68 128 76 56 118 5 - - 6.5 M4 0.6
2A0002B 68 128 76 56 118 5 - - 6.5 M4 0.6
2A0004B 68 128 108 56 118 5 - - 38.5 M4 0.9
2A0006B 68 128 128 56 118 5 - - 38.5 M4 1.1
2A0010B 108 128 129 96 118 5 - - 58 M4 1.7
2A0012B 108 128 137.5 96 118 5 - - 58 M4 1.7
2A0020B 140 128 143 128 118 5 - - 65 M4 2.4
2A0030F
B
140 254 140 122 248 6 13 6.2 55 M5 3.8
2A0040F 140 254 140 122 248 6 13 6.2 55 M5 3.8
2A0056F 180 290 163 160 284 8 15 6.2 75 M5 5.5
2A0069F 220 350 187 192 336 7 15 7.2 78 M6 9.2
4A0001B
A
108 128 81 96 118 5 - - 10 M4 1.0
4A0002B 108 128 99 96 118 5 - - 28 M4 1.2
4A0004B 108 128 137.5 96 118 5 - - 58 M4 1.7
4A0005B 108 128 154 96 118 5 - - 58 M4 1.7
4A0007B 108 128 154 96 118 5 - - 58 M4 1.7
4A0009B 108 128 154 96 118 5 - - 58 M4 1.7
4A0011B 140 128 143 128 118 5 - - 65 M4 2.4
4A0018F
B
140 254 140 122 248 6 13 6 55 M5 3.8
4A0023F 140 254 140 122 248 6 13 6.2 55 M5 3.8
4A0031F 180 290 143 160 284 8 15 6 55 M5 5.2
4A0038F 180 290 163 160 284 8 15 6 75 M5 5.5
30mm 30mm
100mm
100mm
Air
Air
B
IP20 / NEMA
Type
1
A
IP20 / Open
Chassis
D
D1
d
H
W1
W
H1
H2
D
D1
W
W1
H
H3
H4
H2
d
H1
