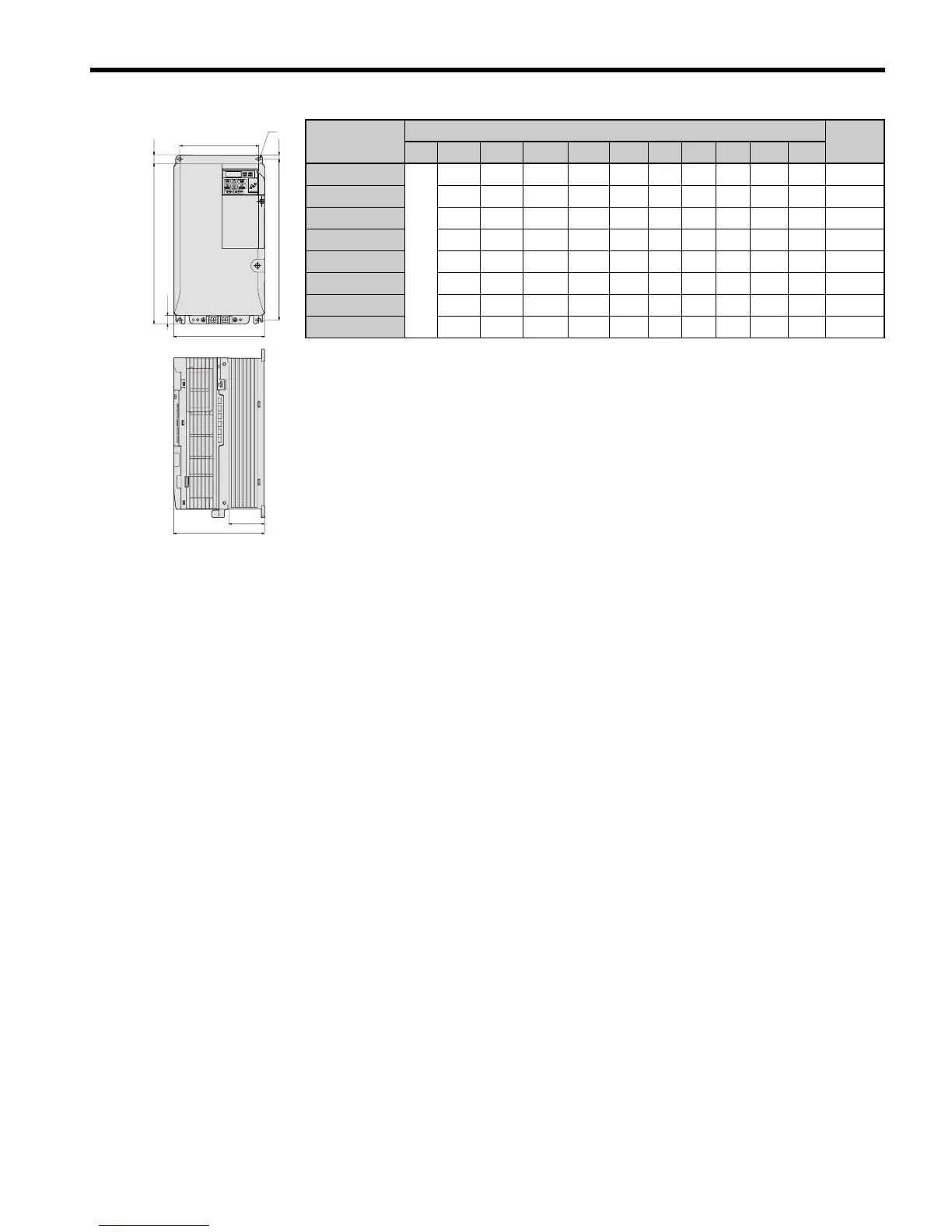

2 Mechanical Installation
YASKAWA Europe TOEP C710606 15C YASKAWA AC Drive - V1000 Quick Start Guide EN 9
ENGLISH
Model
CIMR-VC
Dimensions (mm)
Weight
(kg)
Fig. W H D W1 H1 H2 H3 H5 D1 d
2A0030A
C
140 247 140 122 248 6 13 13 55 M5 3.6
2A0040A 140 247 140 122 248 6 13 13 55 M5 3.6
2A0056A 180 285 163 160 284 8 15 15 75 M5 5.3
2A0069A 220 335 187 192 336 7 15 15 78 M6 8.7
4A0018A 140 247 140 122 248 6 13 13 55 M5 3.6
4A0023A 140 247 140 122 248 6 13 13 55 M5 3.6
4A0031A 180 285 143 160 284 8 15 15 55 M5 5.0
4A0038A 180 285 163 160 284 8 15 15 75 M5 5.3
W1
d
H1 H2
HH3
W
D
D1
C
IP00 / Open
Chassis
H5
