2.1 Installation Environment and Applicable Standards
The installation environment and the applicable standards for servomotors and
SERVOPACKs are described in this section.
2.1.1 Servomotor Installation Environment
Ambient temperature: 0 to 40°C
Ambient humidity: 20% to 80% RH (with no condensation)
Altitude: 1, 000 m or less
Vibration resistance
Shock resistance: 490 m/s
2
at servomotor flange
Impact occurrences: 2
Installation site: An environment that satisfies the following conditions
• Indoors and free of corrosive or explosive gases
• Well-ventilated and free of dust and moisture
• Facilitates inspection and cleaning
• Free of high magnetic field

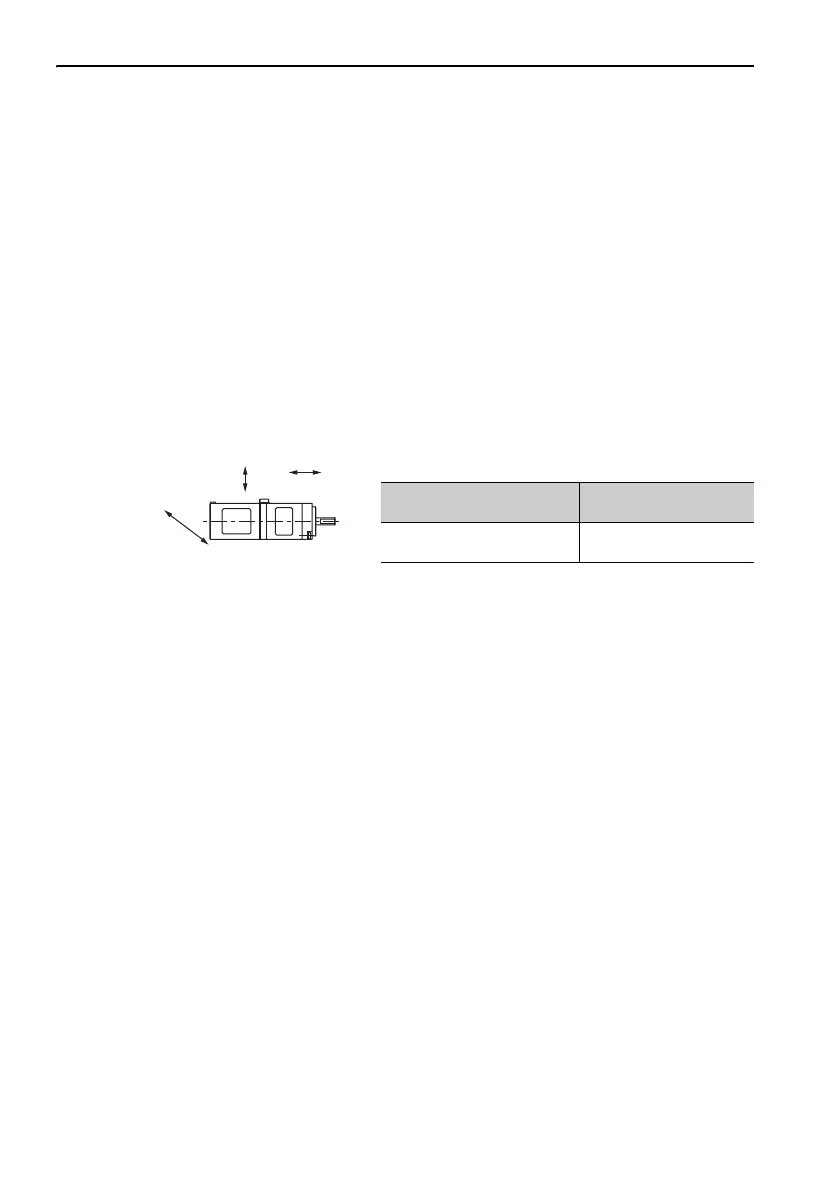

The servomotor will withstand the following
vibration acceleration in three directions: vertical,
side to side, and front to back.
Servomotor Model
Vibration Acceleration
at Flange
SGM7M
SGMMV
49 m/s
2
Horizontal
Impact applied to the
servomotor
Vertical
Front to
back
Side to side
