4.2 Inspection and Checking before Trial Operation
4-5
4
Trial Operation (Checking Servomotor Operation)
 Checking the Main Circuit Power Supply, Servomotor, and Encoder
Wiring
Once again, check the main circuit power supply, servomotor, and encoder wiring
that was described in Chapter 3 Wiring and Connection.
Note: Do not connect the I/O signal cable to the CN1 connector in trial operations.

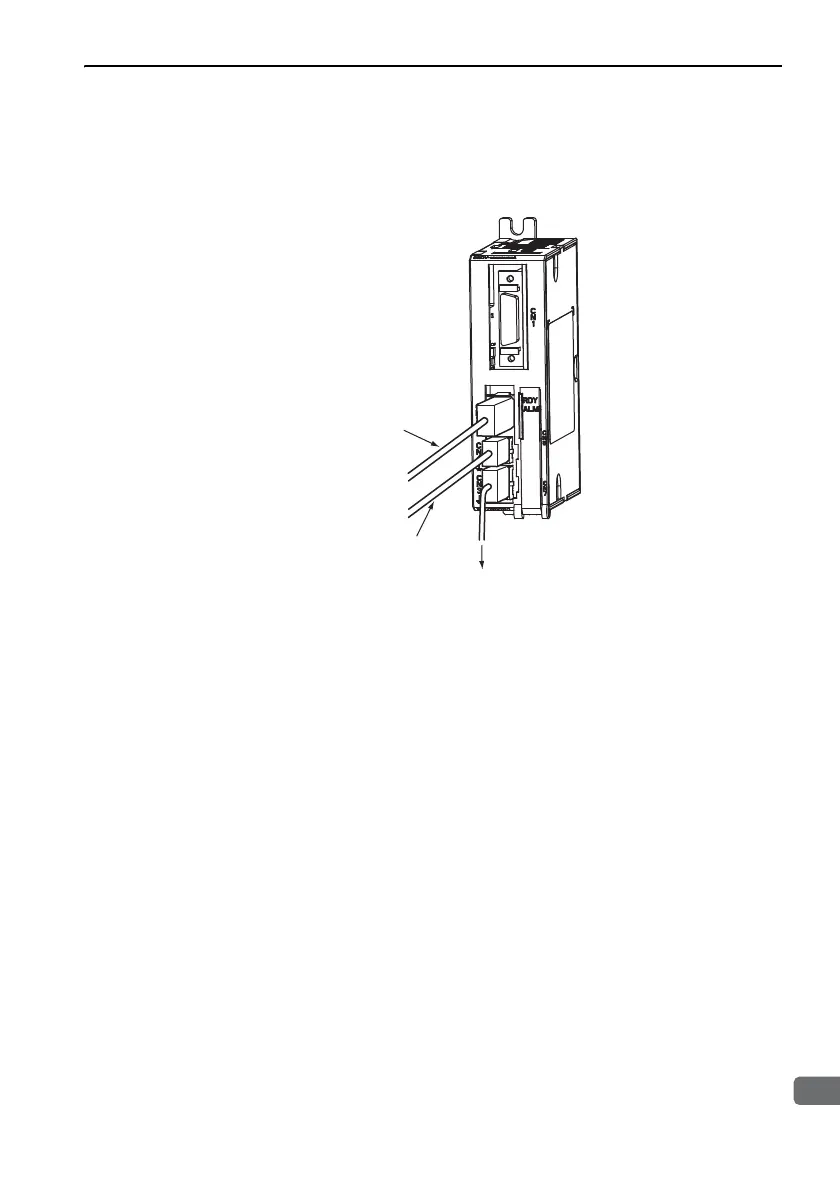

Encoder cable
Power supply
Main circuit cable
for servomotor
