4 Receiving
10 YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION
A - Hardware revision
B - Weight
C - Drive software version
D - The address of the head office of Yaskawa
Electric Corporation
E - Accreditation standards
F - Surrounding air temperature
G - Protection design
H - Serial number
I - Lot number
J - Output specifications
K - Input specifications
L - Catalog code

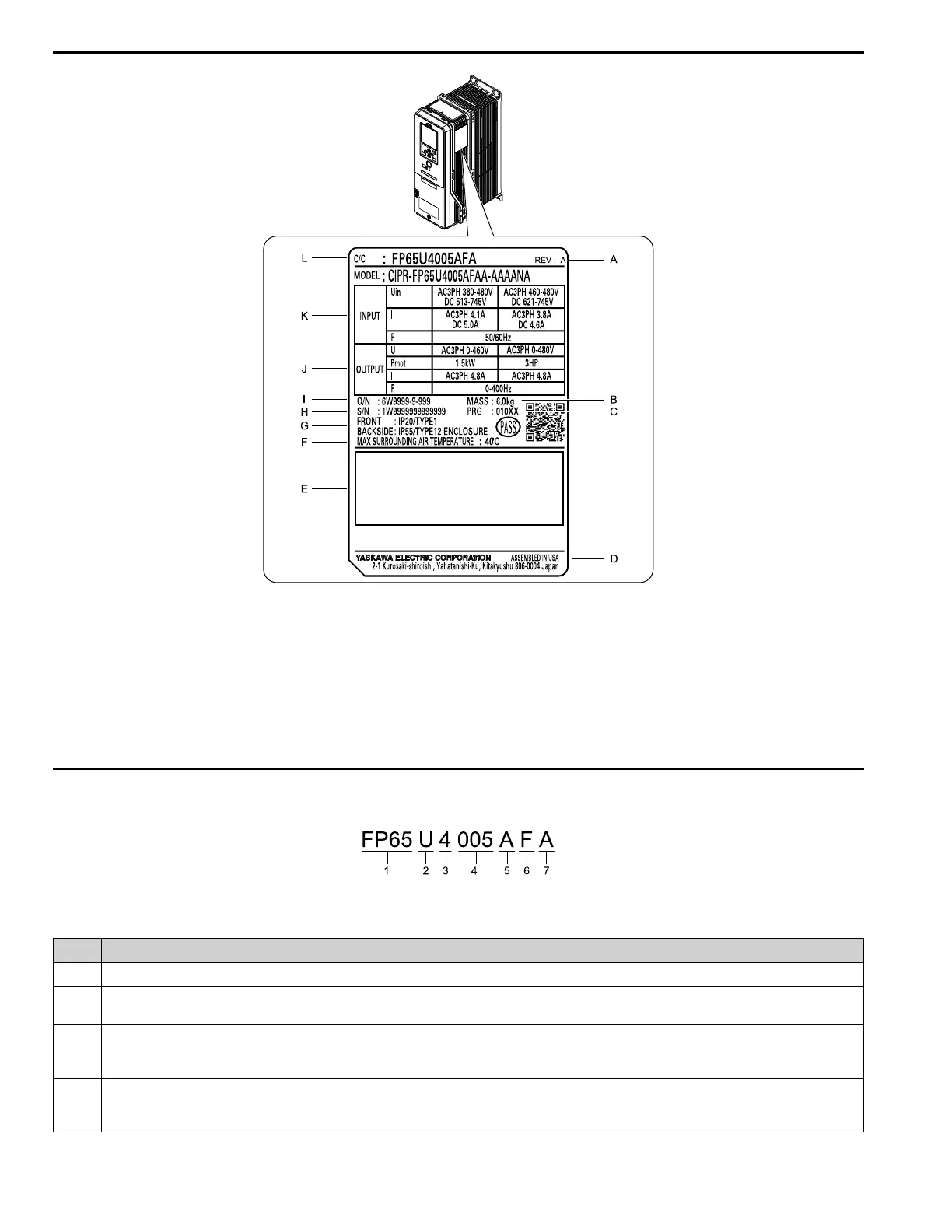

Figure 4.1 Nameplate Example
◆ How to Read Catalog Codes
Use the information in Figure 4.2 and Table 4.1 to read the drive catalog codes.
Figure 4.2 Drive Catalog Code
Table 4.1 Catalog Code Details
No. Description
1 Product series
2 Region code
U: the Americas
3 Input power supply voltage
• 2: Three-Phase 200 Vac to 240 Vac
• 4: Three-Phase 380 Vac to 480 Vac
4 Rated output current
Note:
Refer to the rated output current list for more information.
