7 Electrical Installation

YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 27

■ Standard Drive Connection Diagram

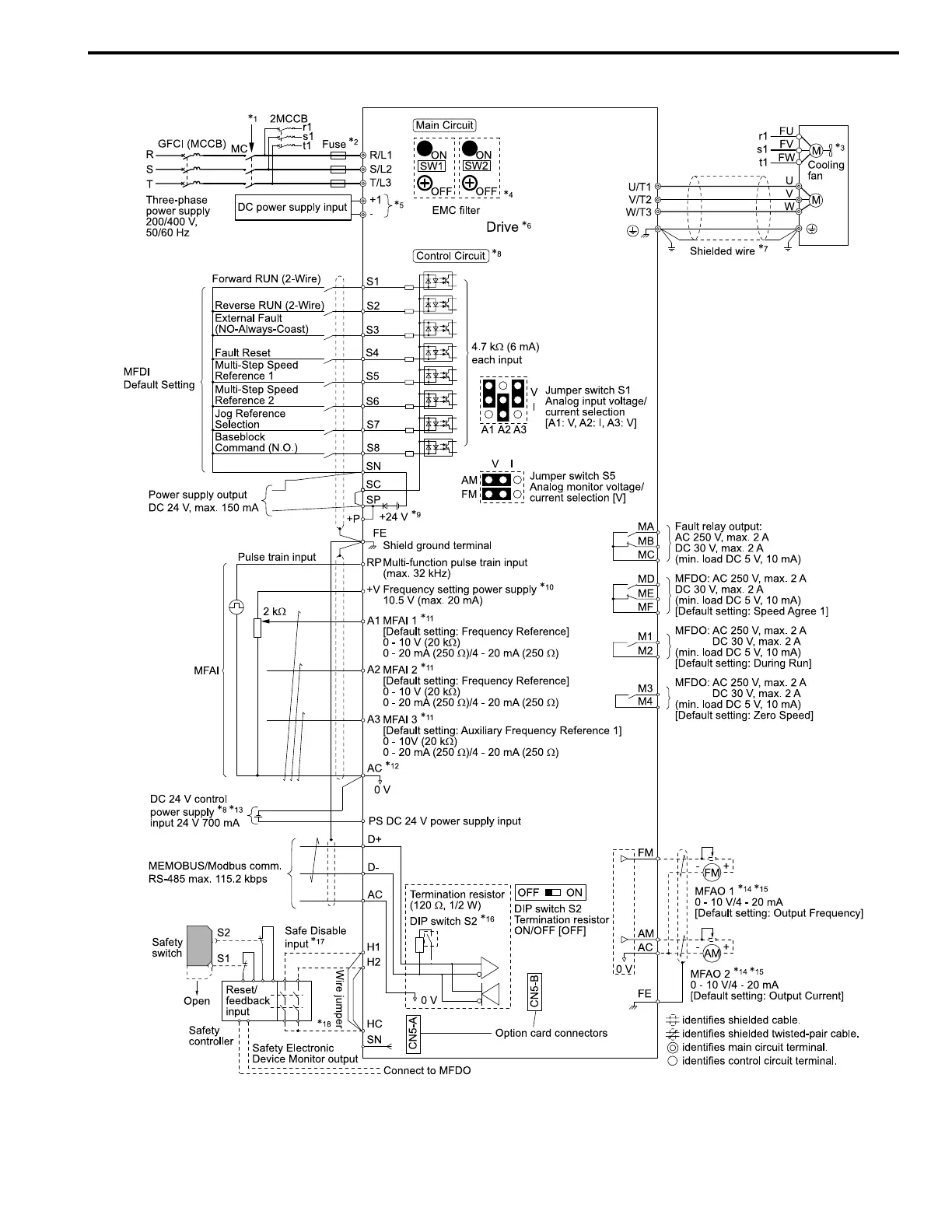

Figure 7.1 Standard Drive Connection Diagram
