6 Mechanical Installation
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 25
4. Push in the tabs on the sides of the front cover and pull the front cover forward to remove it from the drive.

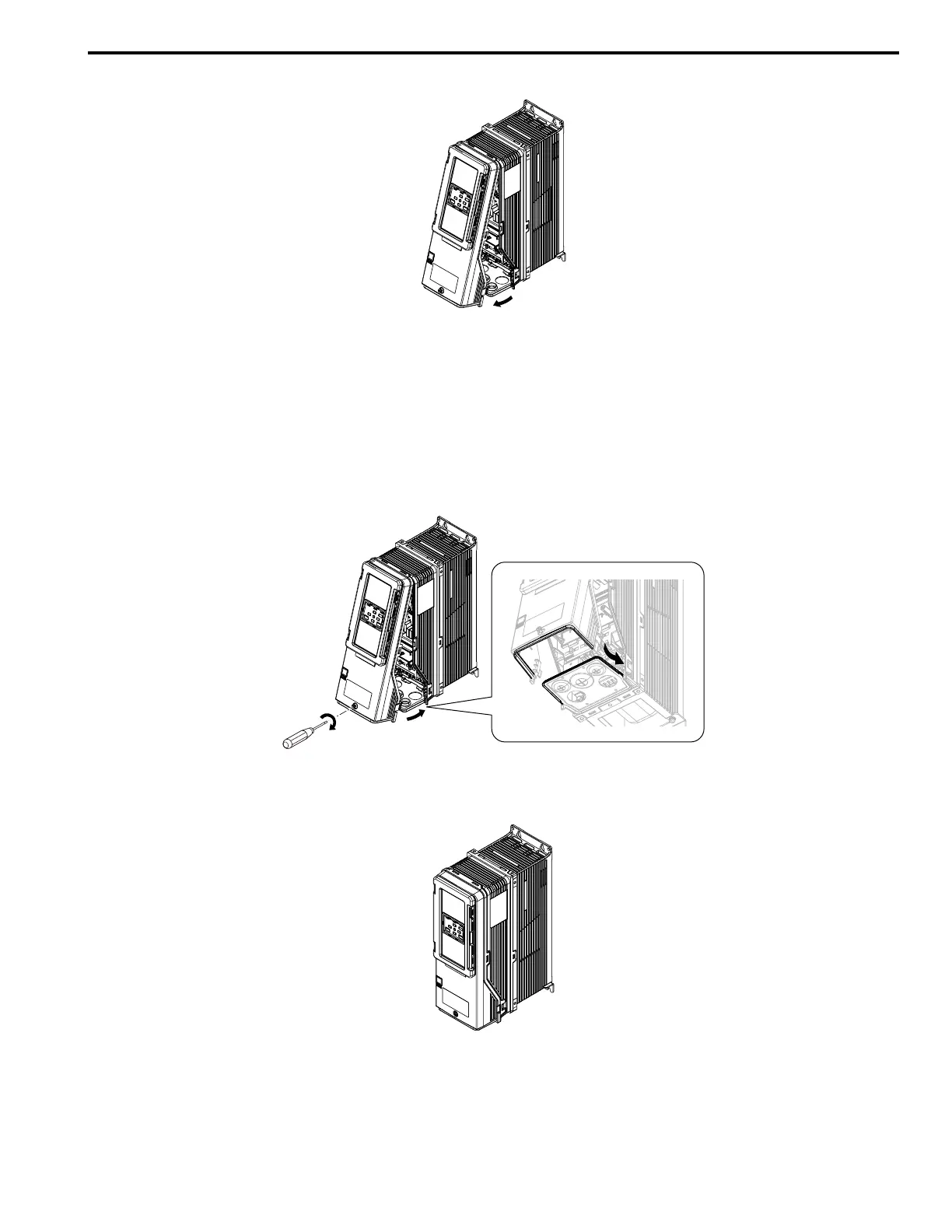

Figure 6.24 Remove the Front Cover
Reattach the Front Cover
1. Wire the drive and other peripheral devices.
2. Reverse the steps to reattach the cover. Reattach the cover carefully and make sure that the gasket on the
conduit bracket does not twist.
Note:
• Make sure that you did not pinch wires or signal lines between the front cover and the drive before you reattach the cover.
• Make sure that the tabs on the sides of the front cover correctly click into the hook.
• Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lbf∙in to 11.77 lbf∙in).
Figure 6.25 Reattach the Front Cover
3. Open the IP55/UL Type 12 keypad cover door and reattach the keypad to its initial position, then close the
door until the two tabs click into position.
Figure 6.26 Reattach the Keypad and Close the Keypad Cover Door
