7 Electrical Installation
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 47

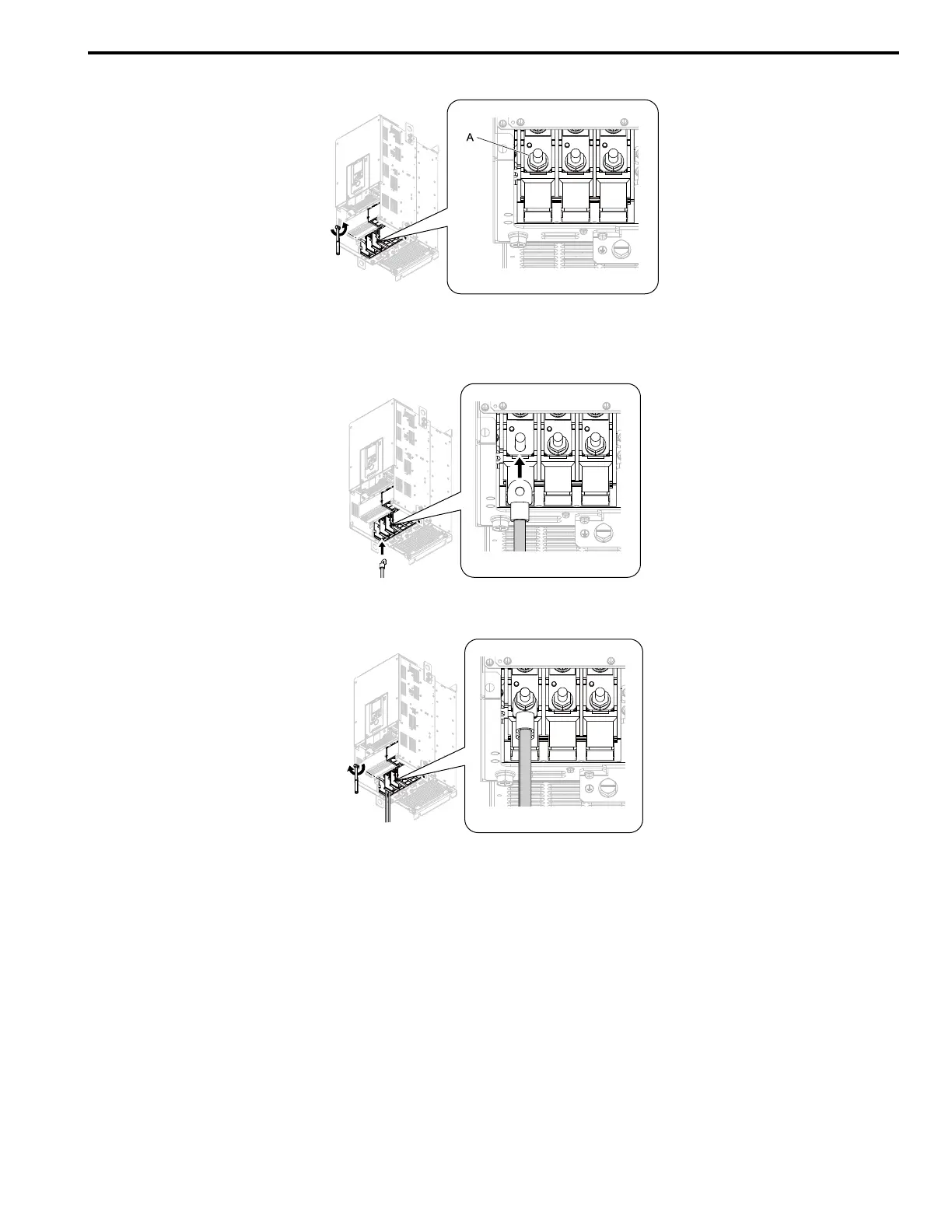

3. Remove the terminal block nuts.
A - Nut
Figure 7.19 Remove the Terminal Block Nuts
4. Put the ends of wires with closed-loop crimp terminals on the main circuit terminal block studs.
Figure 7.20 Install the Electrical Wires
5. Tighten the nuts to the specified torque.
Figure 7.21 Tighten the Terminal Block Nuts
6. Check the signal from the wired terminal and use a diagonal-cutting pliers to remove areas of the wiring cover
cutaway section.
Cut the correct areas shown in Figure 7.22 for your wire gauges.
