13 European Standards
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 95
A - Grounding surface (Remove any paint or sealant.)
B - Metal plate
C - Drive
D - Shielded wire
E - Motor
F - Motor cable (Braided shield cable: 10 m (32.8 ft)
maximum)
G - Cable clamp
H - Grounding wire

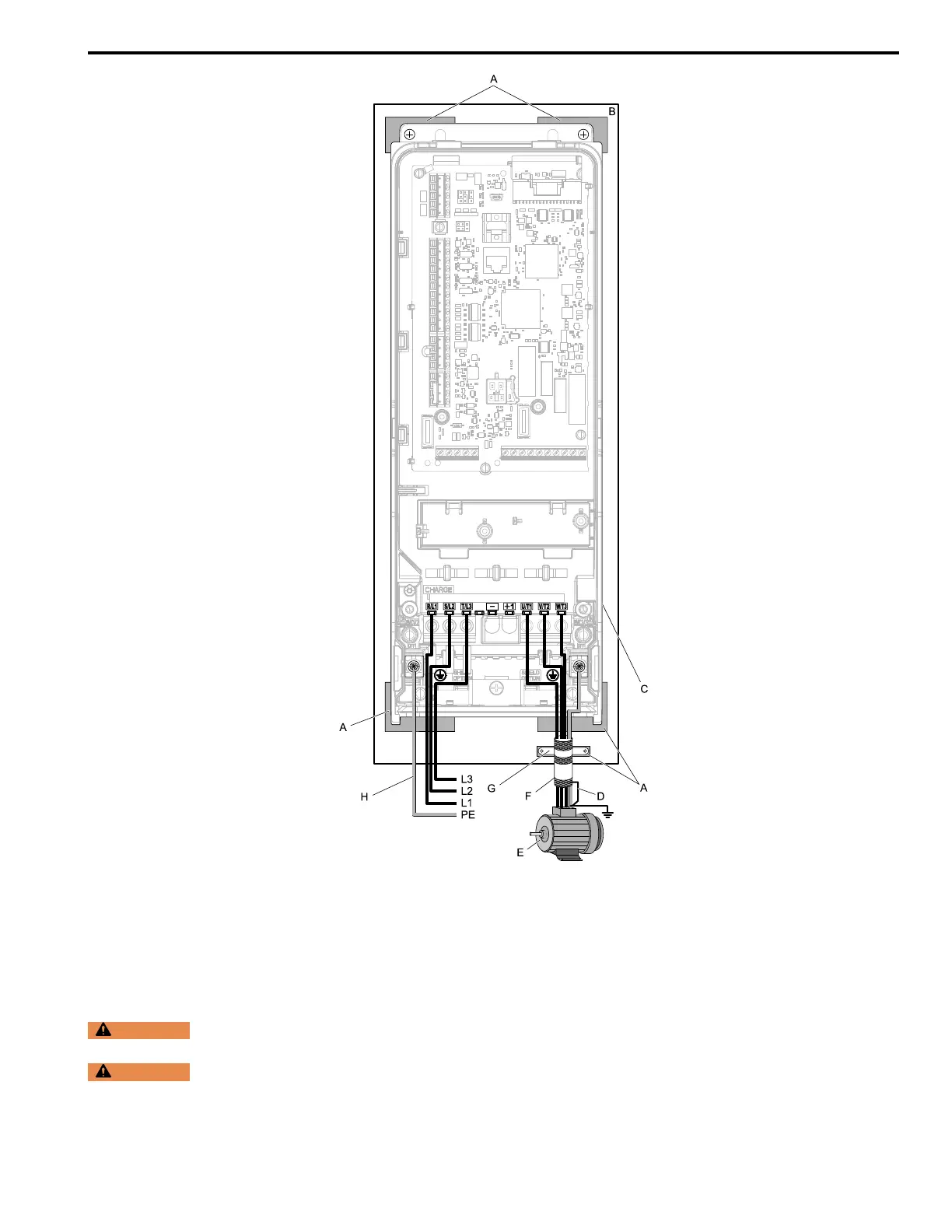

Figure 13.5 Install a Drive with a Built-in EMC Filter
Ground Wiring
WARNING
Electrical Shock Hazard. Do not remove covers or touch circuit boards while the drive is energized. If you touch
the internal components of an energized drive, it can cause serious injury or death.
WARNING
Electrical Shock Hazard. Ground the neutral point on the power supply of the drives to comply with the EMC
Directive before you turn on the EMC filter. If you turn ON the EMC filter, but you do not ground the neutral point, it can cause
serious injury or death.
