YASKAWA J1000 User Guide

Document Revision: v1.0.9
of
4 11
page
18805 Adams Ct., #110 ~ Morgan Hill, CA 95037, USA ~ +1-408.924.0808 ~ www.washlinksystems.com ~ support@washlinksystems.com
Document Title: Tech Guide ~ Yaskawa J1000/V1000/GA500 Basic User Guide

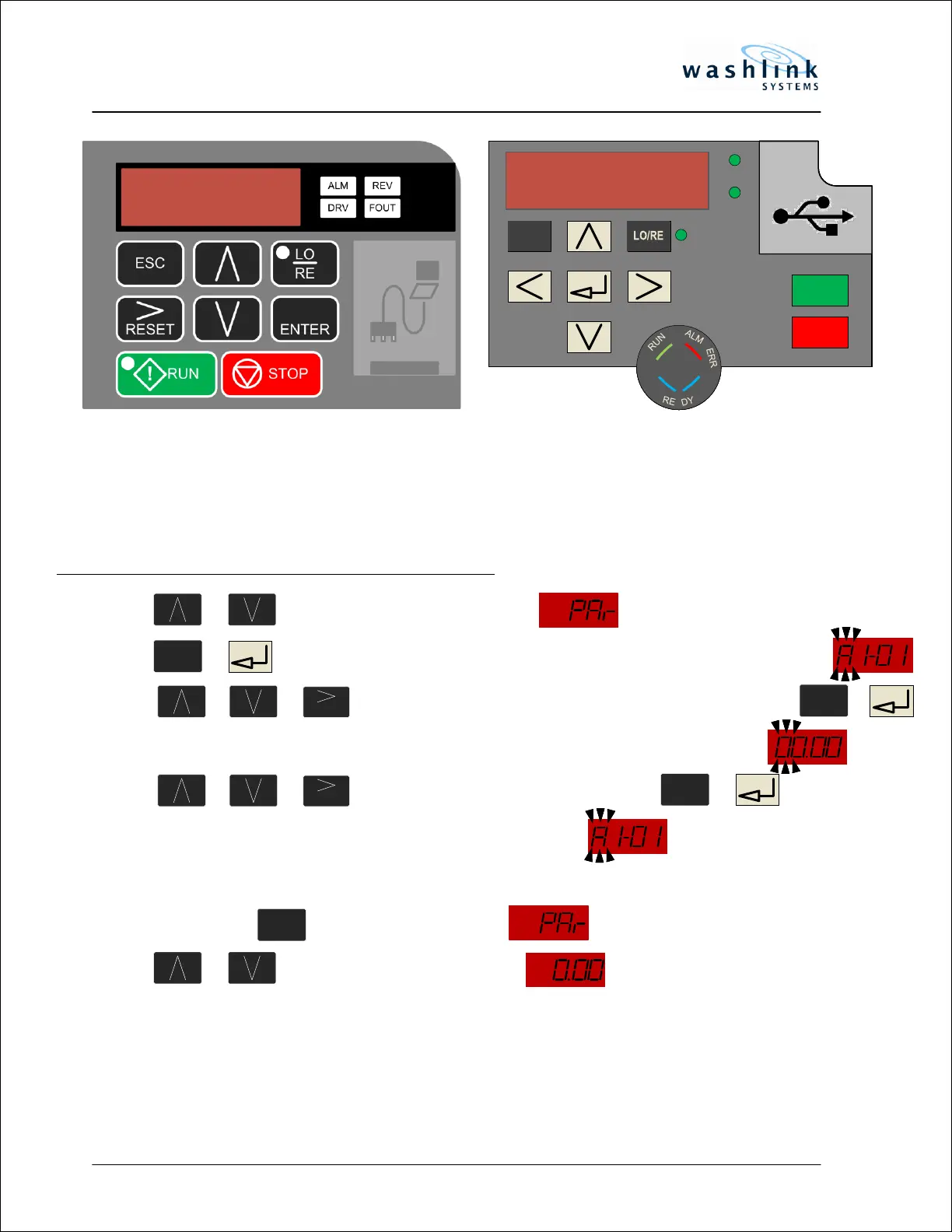

To Access & Change Paramaters
Press the or button until the screen showes Parameter Setting mode.
Press the or button, display will now show Parameter A1-02 with the “A” flashing
ENTERENTER
Press the or or to get to the parameter you want to adjust, then press or
ENTERENTER
RESETRESET
You will now see the current setting for the selected parameter, left digit will flashing
Press the or or to change the parameter, then press or
ENTERENTER
RESETRESET
With the VFD powered on and the motor not running;
You will now see the next parameter with the left digit flashing
1.
2.
3.
4.
5.
6.
If you want to adjust more parameters, go to step 3.7.
If you are done, press until you get back to the screen8.
ESCESC
Press the or button until the screen shows (motor speed in Hz).
9.
J1000 & V1000
Display
J1000 & V1000
Display
ESCESC
AA
ESC
A
RESET
REV
DWEZ
RUNRUN
STOPSTOP
Display
GA500
ESC
A
RESET
REV
DWEZ
RUN
STOP
Display
GA500
J1000 & V1000
Display
ESC
A
RESET
REV
DWEZ
RUN
STOP
Display
GA500

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
