Document Title: Tech Guide ~ Yaskawa J1000/V1000/GA500 Basic User Guide
With Remote Display

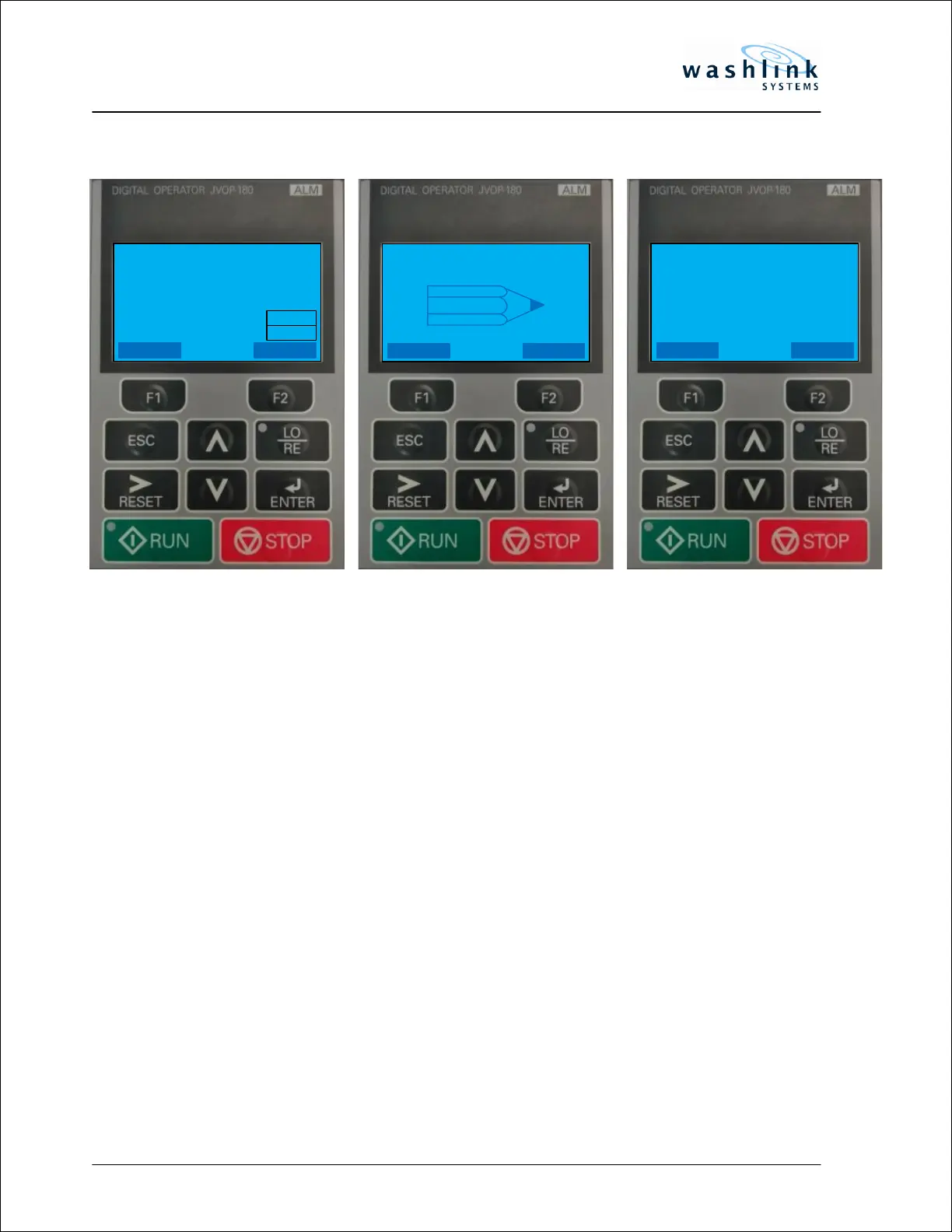

Press Down Arrow until the Mode Screen comes up and press Enter.
You can now change the Parameter with Arrows and Enter.
- MODE -
Freq Ref (A1/A2)
U1-01= 0. 00Hz
----------------------------------------
U1-02= 0. 00Hz RSEQ
U1-03= 0. 00A RFEF
FWD
JOG JOG
- MODE -
Freq Ref (A1/A2)
U1-01= 0. 00Hz
----------------------------------------
U1-02= 0. 00Hz RSEQ
U1-03= 0. 00A RFEF
FWD
JOG JOG
- MODE -
Freq Ref (A1/A2)
U1-01= 0. 00Hz
----------------------------------------
U1-02= 0. 00Hz RSEQ
U1-03= 0. 00A RFEF
FWD
JOG JOG
- MODE -
Programming
FWD
HELP DATA
- MODE -
Programming
FWD
HELP DATA
- MODE -
Programming
FWD
HELP DATA
- PRMSET - PRG
Initialization
----------------------------------------
A1-00= 0
Select Language
FWD

→
- PRMSET - PRG
Initialization
----------------------------------------
A1-00= 0
Select Language
FWD

→

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
