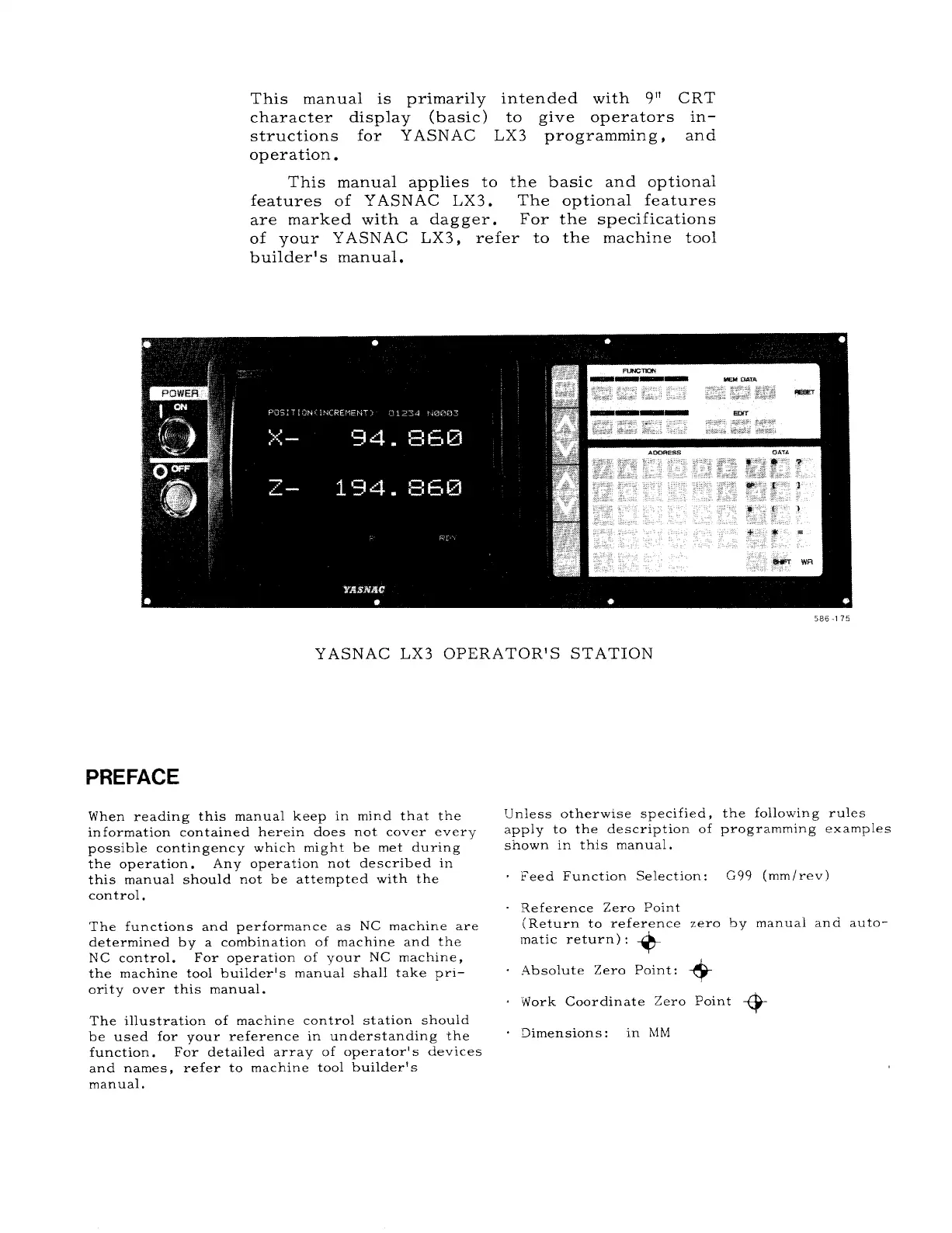

This manual is primarily intended with 9” CRT
character display (basic) to give operators in–
structions for YASNAC LX3 programming, and
operation.
This manual applies to the basic and optional
features of YASNAC LX3.
The optional features
are marked with a dagger. For the specifications
of your YASNAC LX3,
refer to the machine tool
builder’s manual.
586-175
YASNAC LX3 OPERATOR’S STATION
PREFACE
When reading this manual keep in mind that the
information contained herein does not cover every
possible contingency which might be met during
the operation. Any operation not described in
this manual should not be attempted with the
control,
The functions and performance as NC machine are
determined by a combination of machine and the
NC control.
For operation of your NC machine,
the machine tool builder’s manual shall take prl–
ority over this manual.
The illustration of machine control station should
be used for your reference in understanding the
function. For detailed array of operator’s devices
and names, refer to machine tool builder’s
manual.
TJnless otherwise specified,
apply to the description of
s“fiown in this manual.
Feed Function Selection:
Reference Zero Point
the following rules
programming examples
G99 (mm/rev)
(Return to reference zero by manual and auto-
matic return) :
+
Absolute Zero Point:
+
Work Coordinate Zero Point
+?
Dimensions: in MM
