YASKAWA yasnac lx3

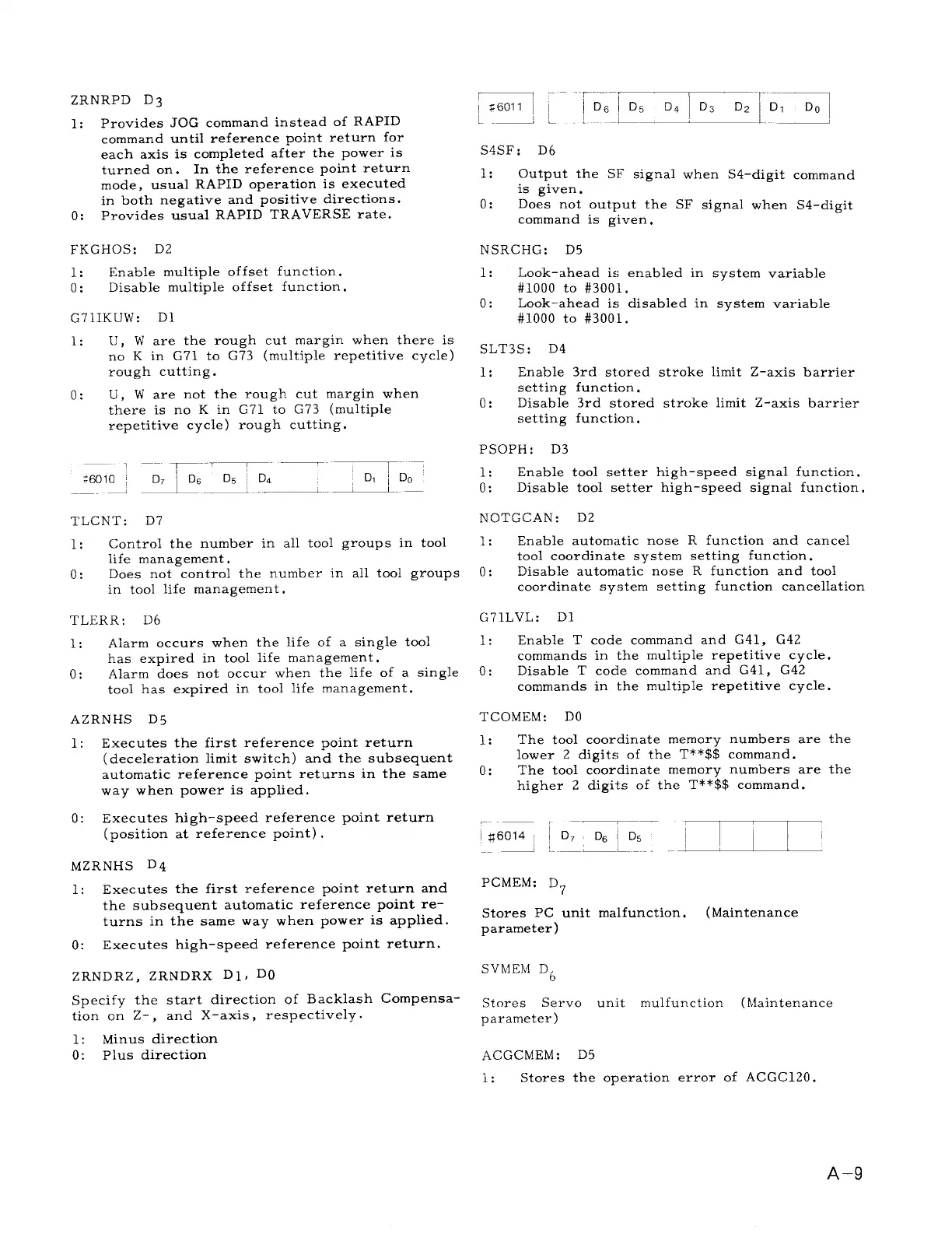

ZRNRPD D3
1:
Provides JOG command instead of RAPID
command until reference point return for
each axis is completed after the power is
turned on.
In the reference point return
mode, usual RAPID operation is executed
in both negative and positive directions.
o:
Provides usual RAPID TRAVERSE rate.
FKGHOS: D2
1:
Enable multiple offset function.
o:
Disable multiple offset function.
G711KUW: D1
1:
U, W are the rough cut margin when there is
no K in G71 to G73 (multiple repetitive cycle)
rough cutting.
o:
U, W are not the rough cut margin when
there is no K in G71 to G73 (multiple
repetitive cycle) rough cutting.
.:!’Q –DJ6::-:=. ---–
D, ~ DO
TLCNT: D7
1:
Control the number in all tool groups in tool
life management.
o:
Does not control the number in all tool groups
in tool life management.
TLERR: D6
1: Alarm occurs when the life of a single tool
has expired in tool life management.
o:
Alarm does not occur when the life of a single
tool has expired in tool life management.
AZRNHS D5
1: Executes the first reference point return
(deceleration limit switch) and the subsequent
automatic reference point returns in the same
way when power is applied.
o: Executes high-speed reference point return
(position at reference point).
MZRNHS D4
1: Executes the first reference point return and
the subsequent automatic reference point re–
turns in the same way when power is applied.
o:
Executes high–speed reference point return.
ZRNDRZ, ZRNDRX Dl~ DO
Specify the start direction Qf Backlash Compensa-
tion on Z- , and X–axis, respectively.
1:
Minus direction
o: Plus direction
[
I
.——
.T-.–.—
I F6011 I
I
ID61D, D4
D, D,--] ””D:~
L-~~
j
.L
1.. .1
S4SF: D6
1:
Output the SF signal when S4–digit command
is given.
o: Does not output the SF signal when S4-digit
command is given,
NSRCHG: D5
1:
Look-ahead is enabled in system variable
#looo to #3001.
o: Look-ahead is disabled in system variable
#looo to #3001.
SLT3S: D4
1:
Enable 3rd stored stroke limit Z-axis barrier
setting function.
o:
Disable 3rd stored stroke limit Z-axis barrier
setting function.
PSOPH: D3
1:
Enable tool setter high-speed signal function.
o:
Disable tool setter high-speed signal function,
NOTGCAN: D2
~:
Enable automatic nose R function and cancel
tool coordinate system setting function.
o: Disable automatic nose R function and tool
coordinate system setting function cancellation
G71LVL: D1
~:
Enable T code command and G41, G42
commands in the multiple repetitive cycle.
o: Disable T code command and G41, G42
commands in the multiple repetitive cycle.
TCOMEM: DO
1:
The tool coordinate memory numbers are
lower 2 digits of the T**$$ command.
o: The tool coordinate memory numbers are
higher 2 digits of the T**$$ command.
.—
._r.—
I #6014 ~ D,
.
‘6 IDS bti
~_.,__ .._
PCMEM: D7
Stores PC unit malfunction. ( Maintenance
parameter)
SVMEM D6
the
the
Stores Servo unit malfunction
(Lfaintenance
parameter)
ACGCMEM: D5
1:
Stores the operation error of ACGC120.
A–9
