Horizontal Suspension of Drive Models 2A0343A, 2A0396A, and 4A0361A to 4A0590A
To make a wire hanger or frame for use when lifting the drive with a crane, lay the drive in a horizontal position and pass a
wire through the holes of the four eye bolts.
NOTICE: Damage to Equipment. When lifting the drive, confirm that the spring washer is fully closed. Failure to comply may deform or
damage the drive when lifted.

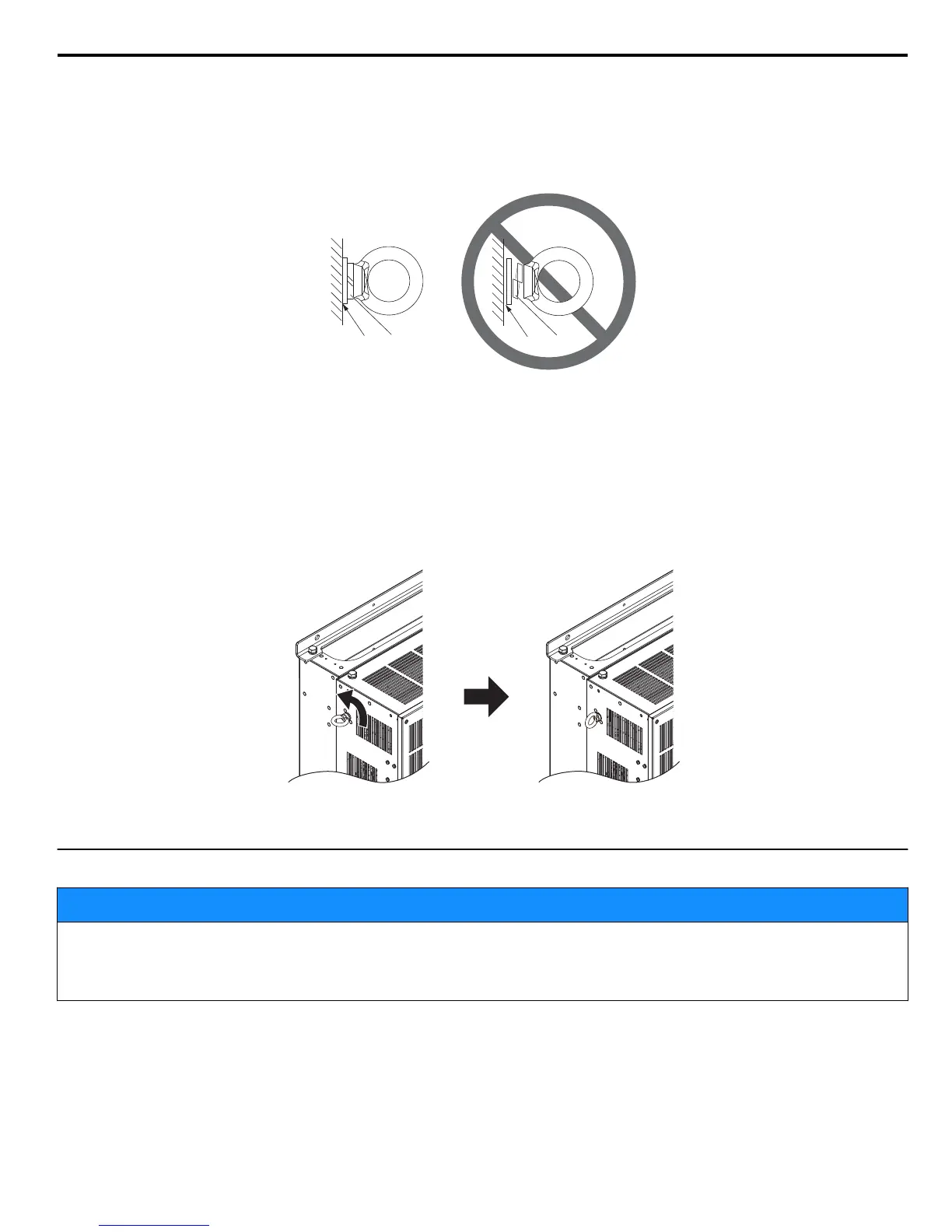

Figure 2.7
B
A
C
D
A – No space between drive and
washer
B – Spring washer fully closed
C – Space between drive and washer
D – Spring washer open
Figure i.8 Spring Washer
n
Vertical Suspension of Drive Models 2A0343A, 2A0396A, and 4A0361A to 4A0590A
When vertical suspension of the drive is required in an enclosure panel, change the orientation of the eye bolts for these models
by turning the eye bolts counterclockwise 90 degrees.
Figure i.9 Adjusting Angle of Eye Bolts
u
Drive Dimensions
NOTICE
Refer to the Z1000 AC Drive User Manual TOEP C710616 45 for IP20/NEMA 1, UL Type 1 and IP00/Open-Type
dimensions.
The Z1000 AC Drive User Manual is posted on the Yaskawa website, www.yaskawa.com.
i.3 Mechanical Installation
YASKAWA ELECTRIC TOEP C710616 54A YASKAWA AC Drive - Z1000 Quick Start Guide
15

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
