YASKAWA Z1000 Quick Start Guide

i.2 Receiving
u
Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
u

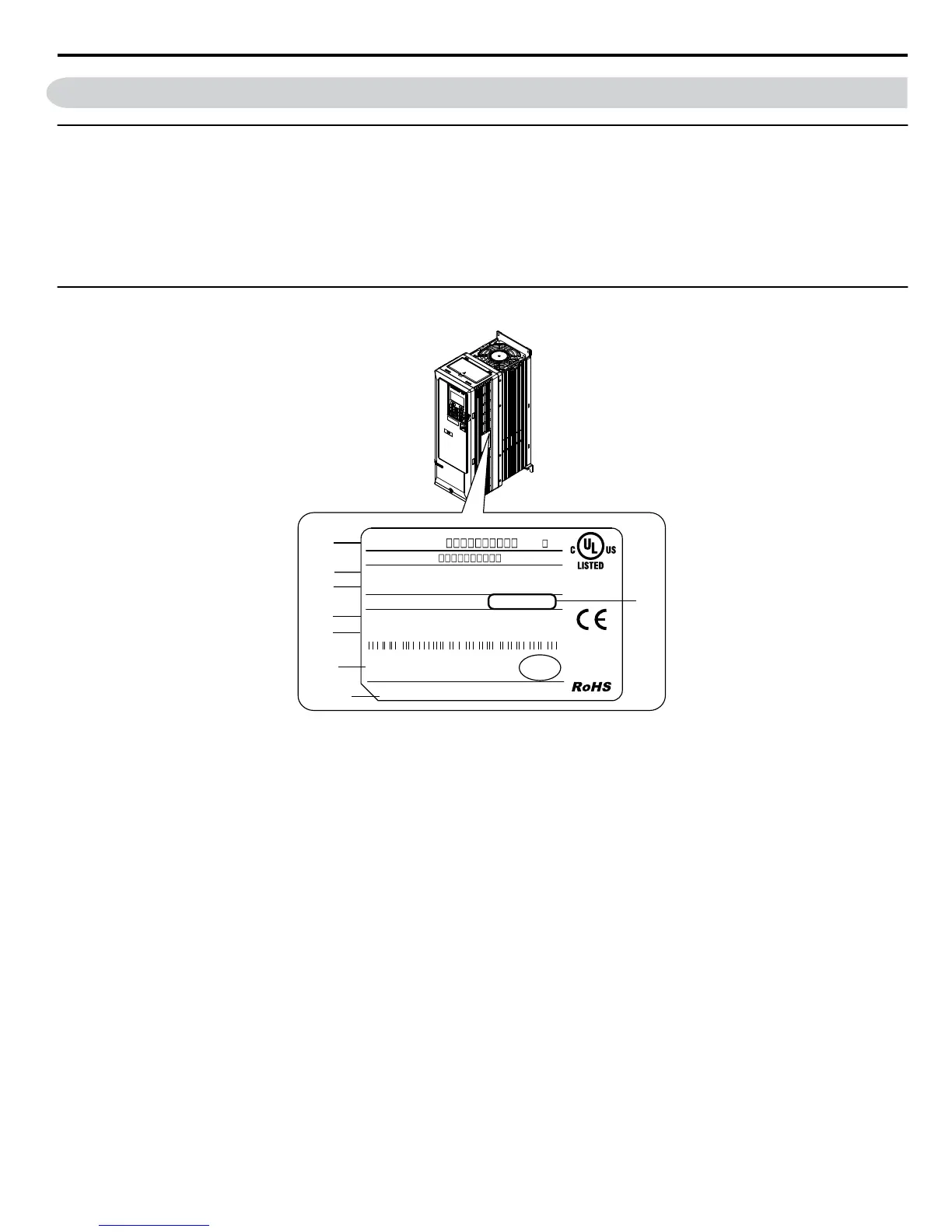

Drive Nameplate
H
G
F
E
B
A
PRG:
IND.CONT.EQ.
7J48
YASKAWA ELECTRIC CORPORATION Assembled in USA
: CIMR-Z
PASS
MODEL
INPUT
OUTPUT
MASS
O / N
S / N
REV :
: AC3PH 200-240V 50/60Hz 10.6A
: AC3PH 0-240V 0-240Hz 10.6A
: 5.6 kg
: 6W3050-2-100 VAJ123456
: J0073D207410100
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
D
□□□□
FRONT = IP20 AND TYPE1 FILE NO: E131457
BACKSIDE = IP20 AND TYPE12
C
C/C : CIMR-Z
A – Software version
B –
Address
<1>
C – Enclosure type
D – Serial number
E – Lot number
F – Output specifications
G – Input specifications
H – AC drive model
Figure i.3 Drive Nameplate Information Example
<1> The address of the head office of Yaskawa Electric Corporation (responsible for product liability) is shown on the nameplate.
i.2 Receiving
YASKAWA ELECTRIC TOEP C710616 54A YASKAWA AC Drive - Z1000 Quick Start Guide
11

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
