Advanced Phone Features
89
Paging Barge
Paging barge parameter defines the priority of the voice call in progress. If the priority
of an incoming multicast paging call is lower than that of the active call, it will be
ignored automatically. If Disabled is selected from the pull-down list of Paging Barge,
the voice call in progress takes precedence over all incoming multicast paging calls.
Valid values in the Paging Barge field:
1 to 10: Define the priority of an active call, 1 with the highest priority, 10 with the
lowest.
Disabled: The voice call in progress shall take precedence over all incoming
paging calls.
Paging Priority Active
Paging priority active parameter decides how the phone handles the incoming
multicast paging calls when there is already a multicast paging call on the phone. If
enabled, the phone will ignore incoming multicast paging calls with lower priorities,
otherwise, the phone will answer incoming multicast paging calls automatically and
place the previous multicast paging call on hold. If disabled, the phone will
automatically ignore all incoming multicast paging calls.

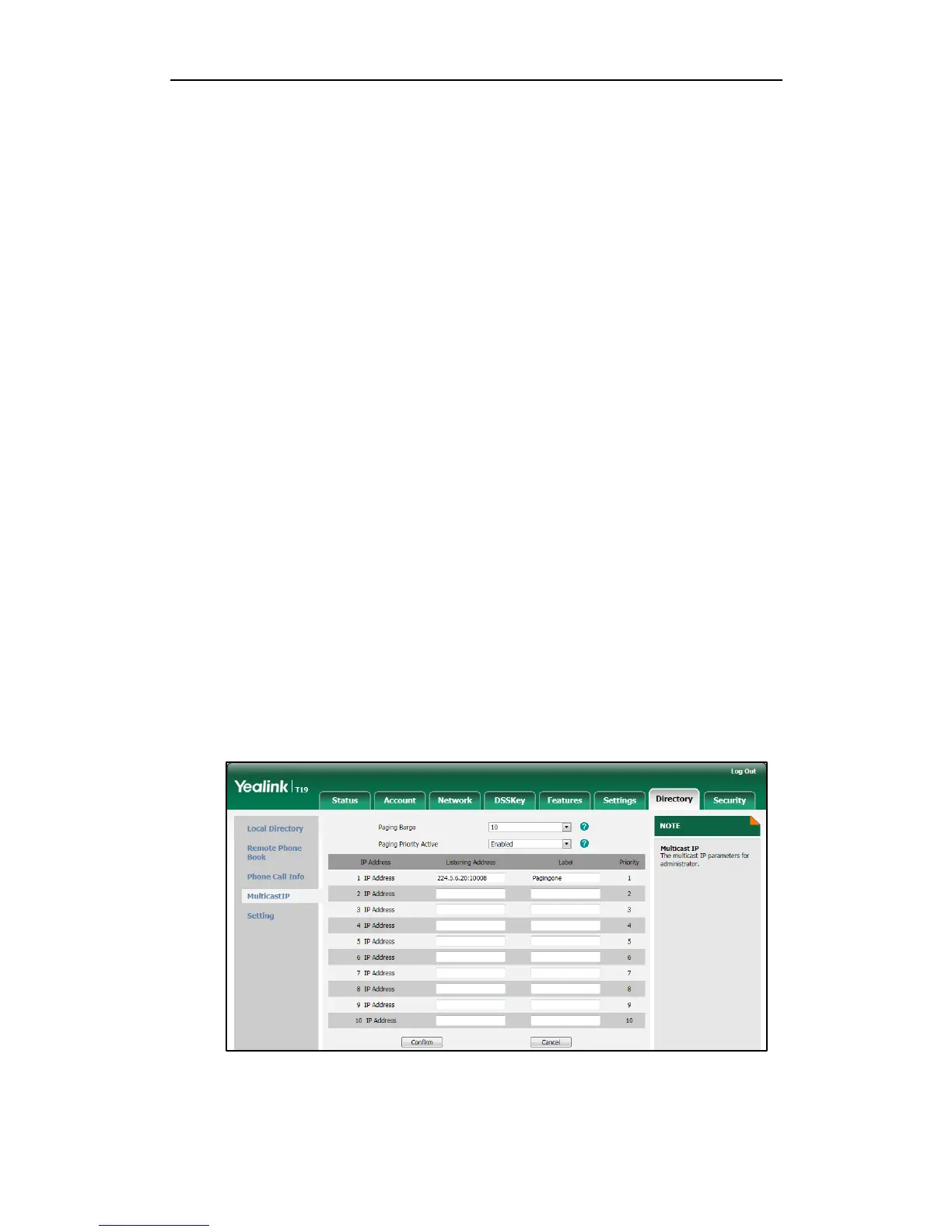

To configure multicast listening addresses via web user interface:
1. Click on Directory->MulticastIP.
2. Select the desired value from the pull-down list of Paging Barge.
3. Select the desired value from the pull-down list of Paging Priority Active.
4. Enter the multicast IP address(es) and port number (e.g., 224.5.6.20:10008) which
the phone listens for incoming RTP multicast in the Listening Address field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
5. Enter the label in the Label field.
Label will appear on the LCD screen when receiving the RTP multicast.
