Yealink SIP-T23G User Manual

Customizing Your Phone
81

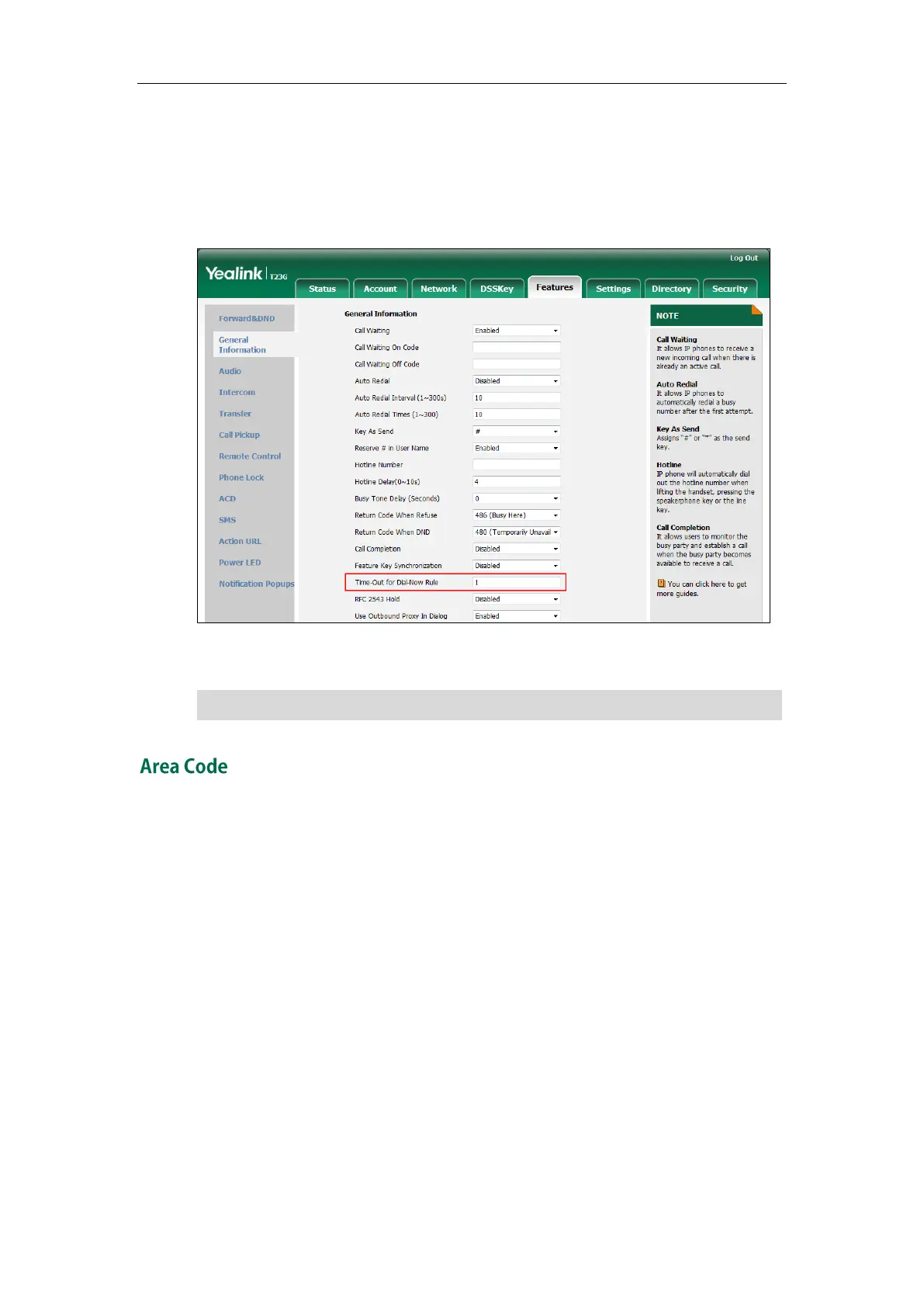

To configure the delay time for dial-now rule via web user interface:
1. Click on Features->General Information.
2. Enter the time between 0 and 14 (seconds) in the Time-Out for Dial-Now Rule field.
The default value is “1”.
3. Click Confirm to accept the change.
Note
Area codes are also known as Numbering Plan Areas (NPAs). They usually indicate
geographical areas in a country. This feature is necessary when dialing a phone
number outside the code area. For example, an area code is configured as "Code: 0592,
Min Length: 1, Max Length: 15". When you dial out the number "56789" (the length of the
number is between 1 and 15), the phone will add the area code and dial out the
number "059256789". You can only configure one area code rule on your phone.
To configure the area code via web user interface:
1. Click on Settings->Dial Plan->Area Code.
2. Enter the desired values in the Code, Min Length (1-15) and Max Length (1-15)
fields.
3. Enter the desired line ID in the Account field or leave it blank.
Delay time for dial-now rule is configurable via web user interface only.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
