Yealink SIP-T29G User Manual

Getting Started
25
Phone Status
You can view phone status via phone user interface or web user interface.
Available information of phone status includes:
 Network status (IPv4 status or IPv6 status, IP mode and MAC address).
- IPv4 uses a 32-bit address.
- IPv6 is an updated version of the current Internet Protocol to meet the increased
demands for unique IP addresses, using a 128-bit address.
 Phone status (product name, hardware version, firmware version, product ID, MAC address
and device certificate status).
 Account status (register status of SIP accounts).

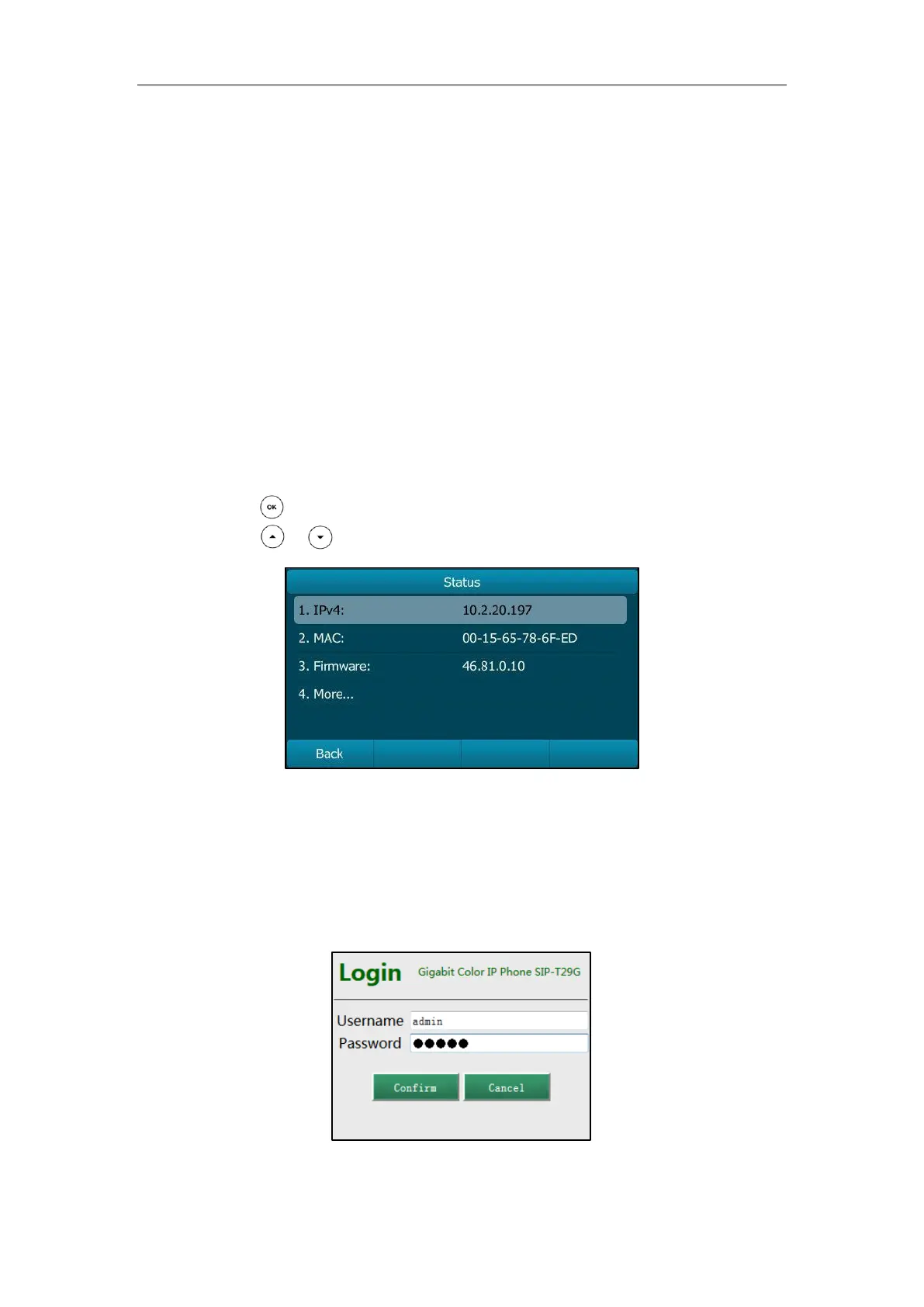

To view the phone status via phone user interface:
1. Press , or press Menu->Status.
2. Press or to scroll through the list and view the specific information.
To view the phone status via web user interface:
1. Open a web browser on your computer.
2. Enter the IP address in the browser’s address bar, and then press the Enter key.
(e.g., “http://192.168.0.10” for IPv4 or “http://[2005:1:1:1:215:65ff:fe64:6e0a]” for IPv6).
3. Enter the user name (admin) and password (admin) in the login page.
4. Click Confirm to login.

Yealink SIP-T29G Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.723, G.726, G.729ab, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Lines quantity	10 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Power over Ethernet (PoE)	-
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800
Volume control	Buttons

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
